On-Vehicle Service - Evolution
>>
Hydraulic Unit
>>
Removal And Installation
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Removal And Installation

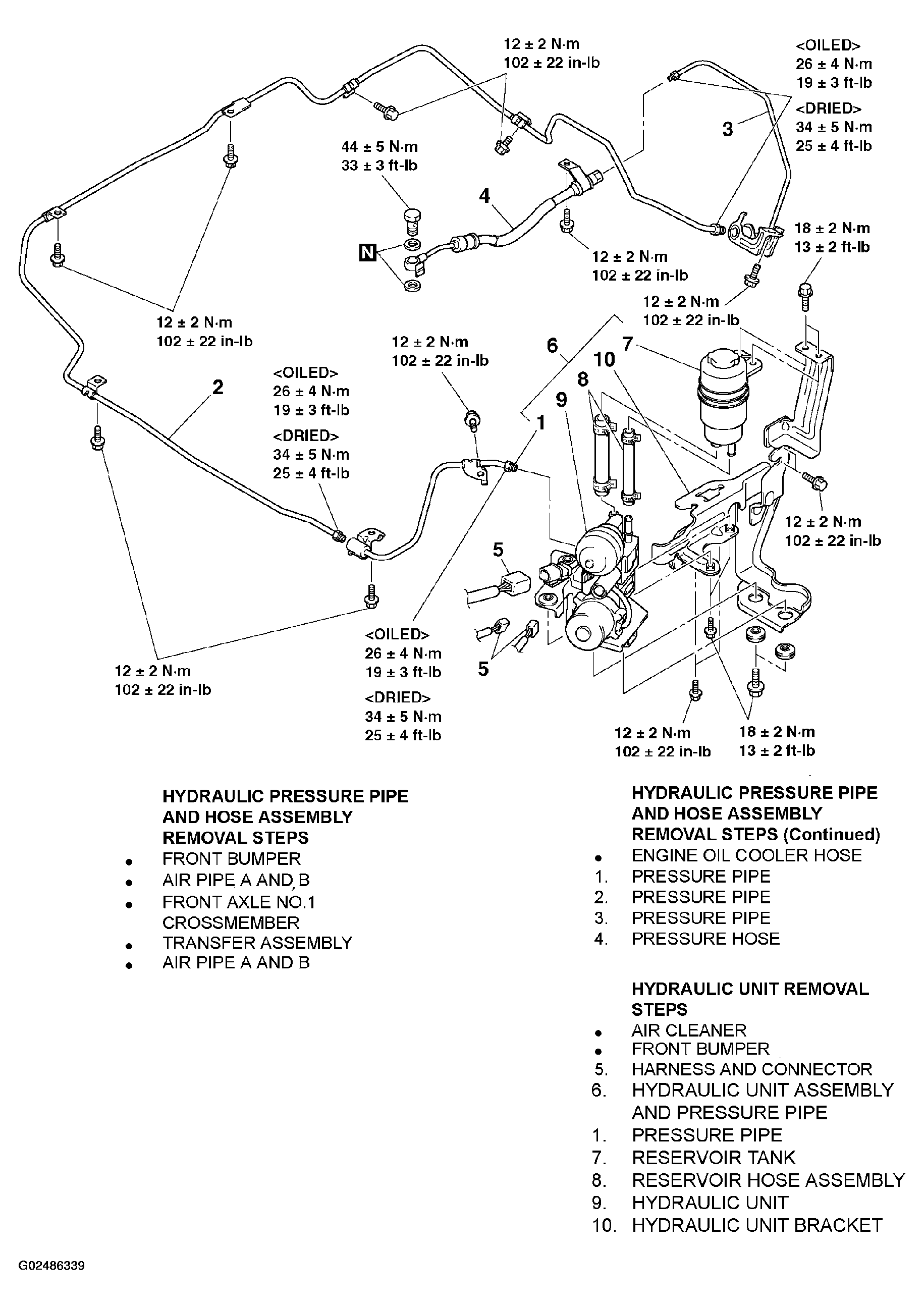

Fig 1: Removing/Installing Hydraulic Unit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
