Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
WARNING: Before removing the air bag module, Refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING . Center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

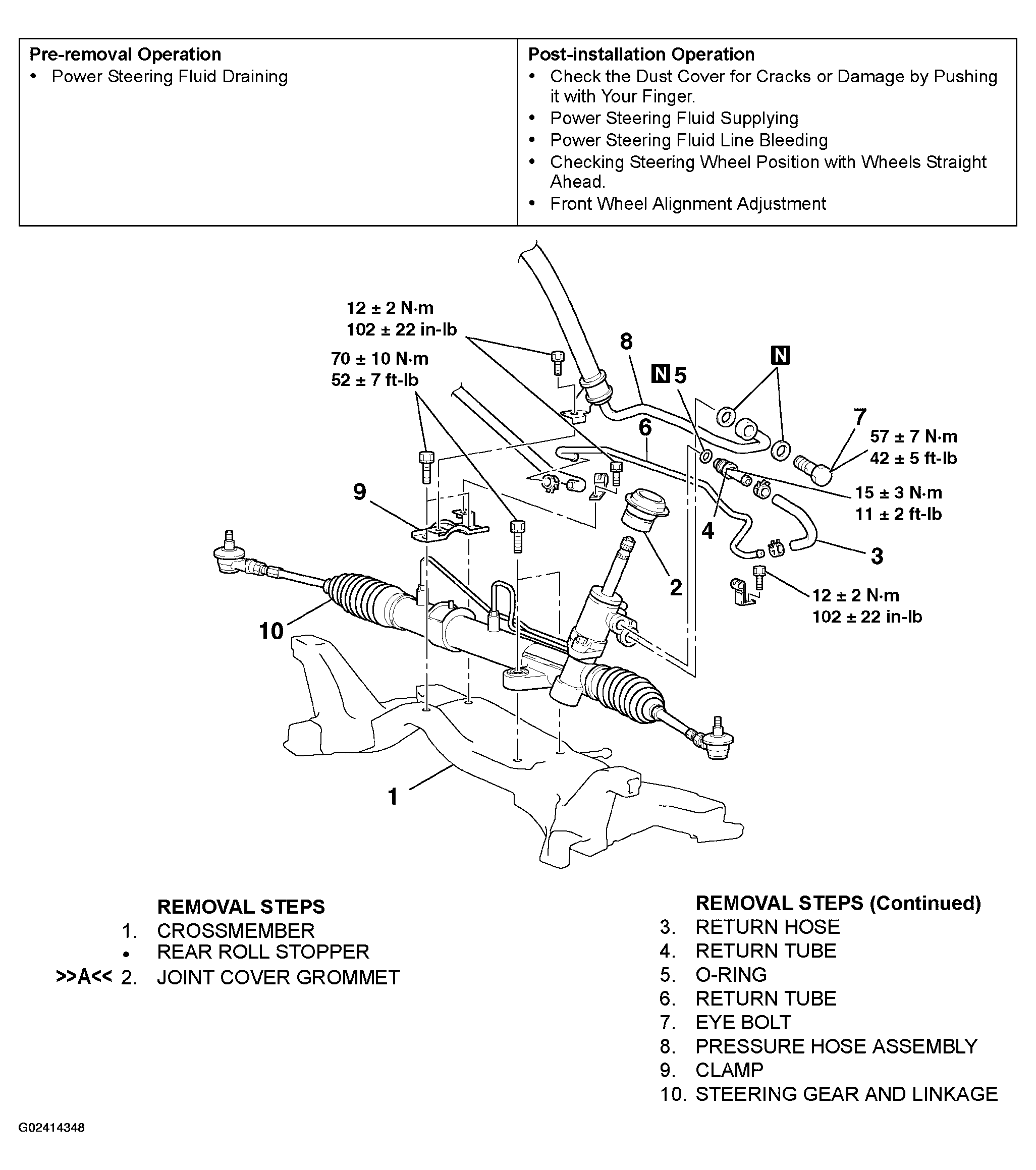

Fig 1: Exploded View Of Power Steering Gear Box And Linkage Components
G02414348Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
