Service Specifications

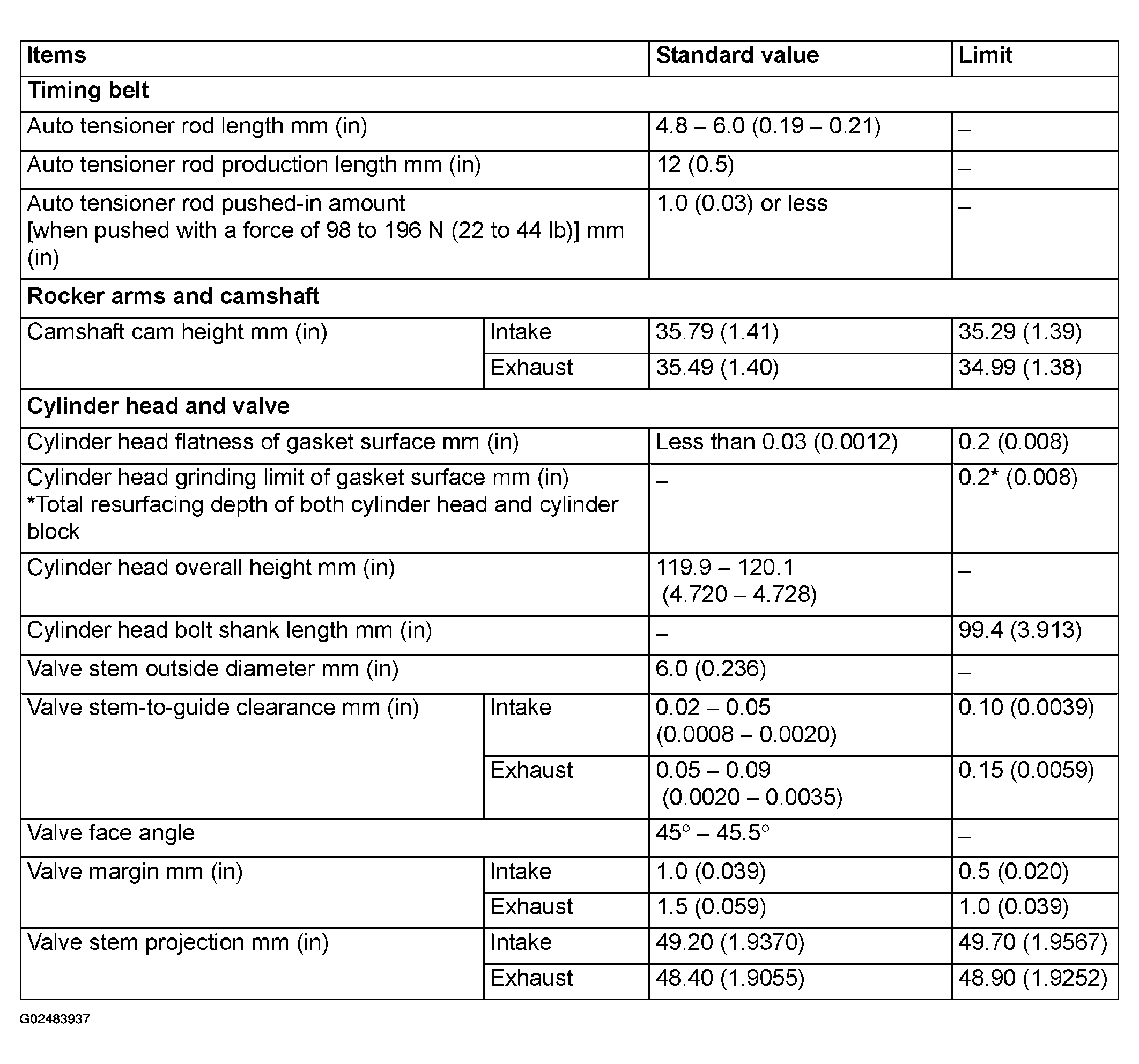

Fig 1: Service Specifications
G02483937Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

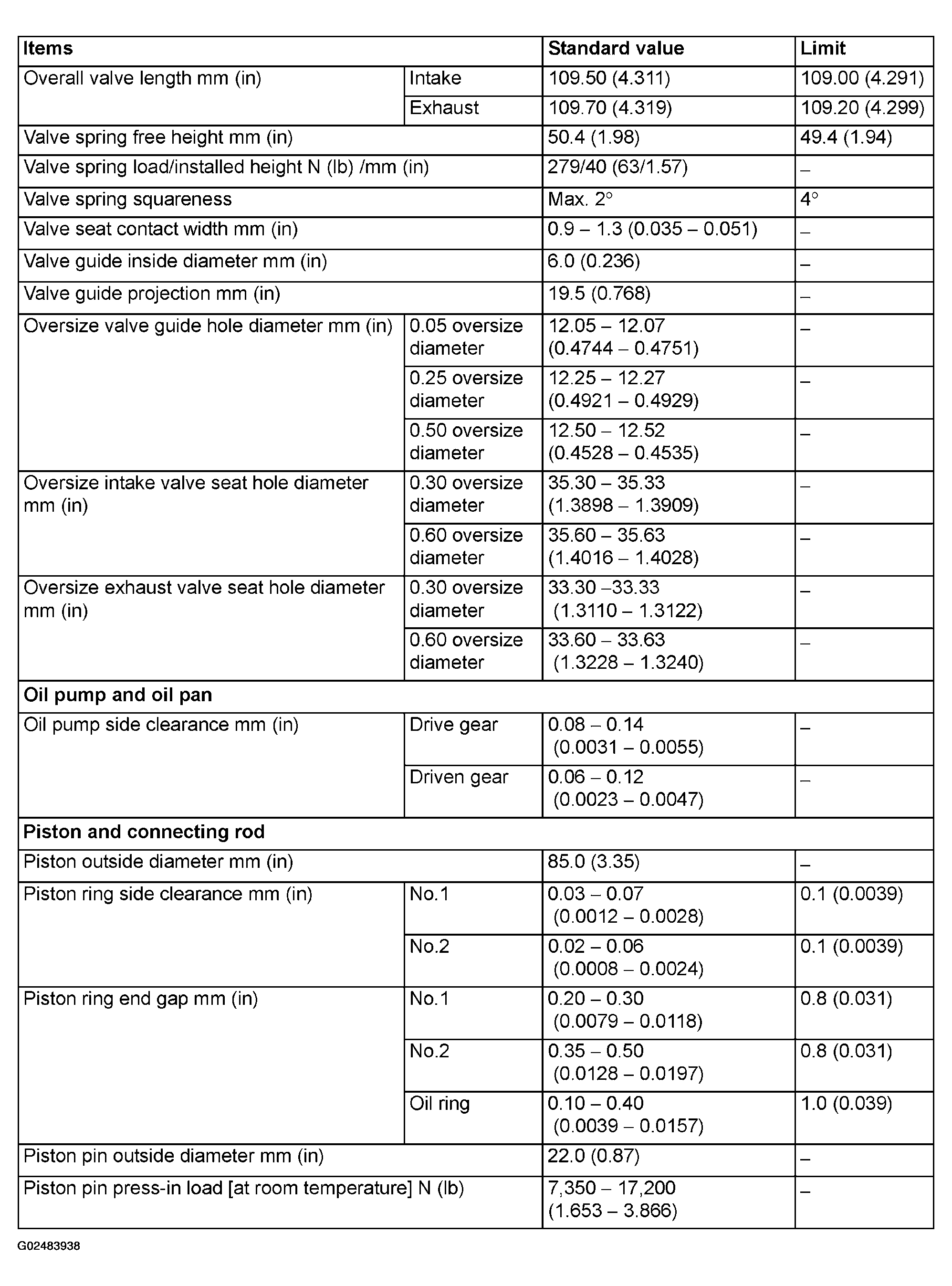

Fig 2: Service Specifications
G02483938Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

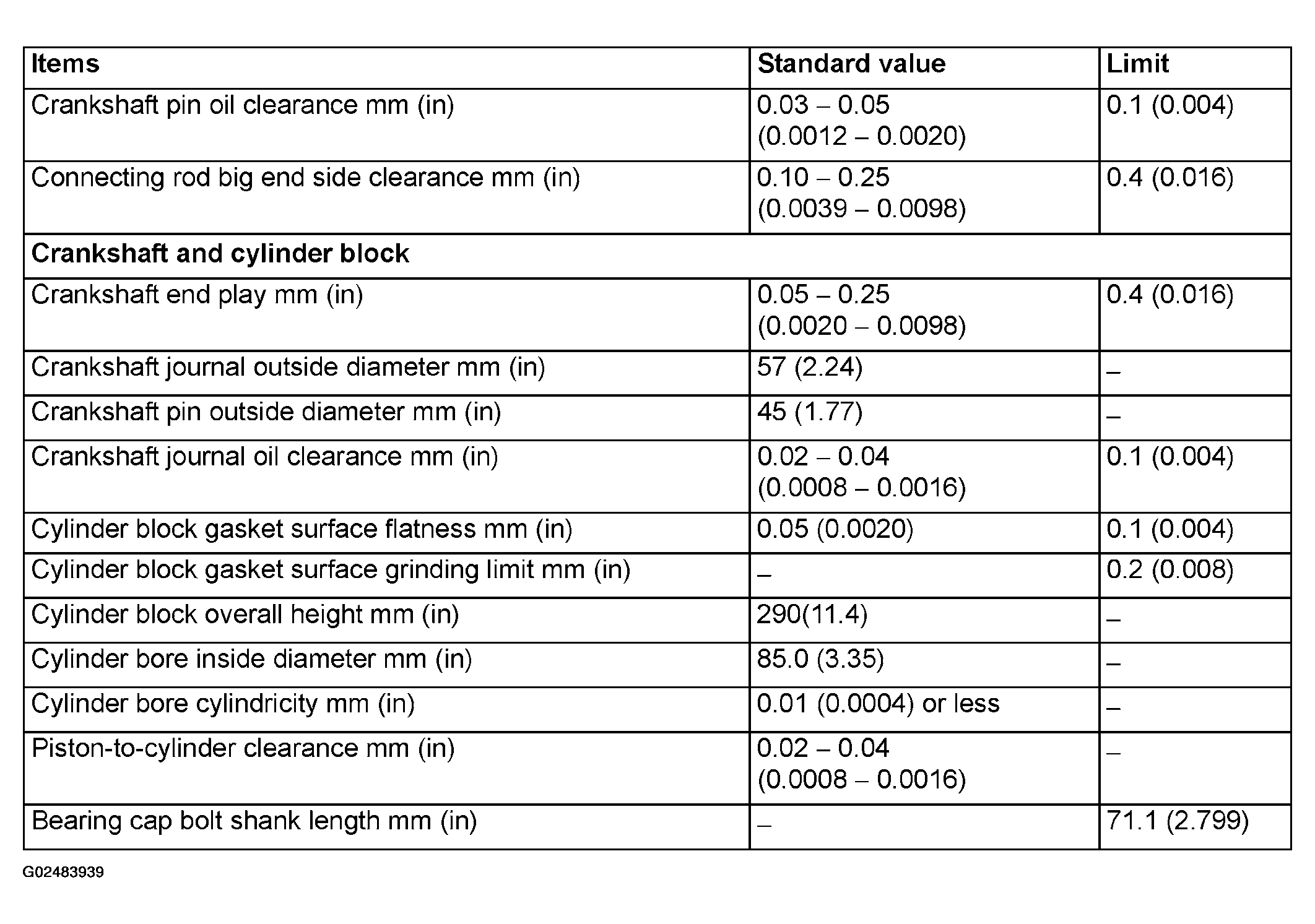

Fig 3: Service Specifications
G02483939Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
