Removal And Installation

CAUTION:
  • If the vehicle is equipped with the Brembo™disc brake, during maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched.
  • *: indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

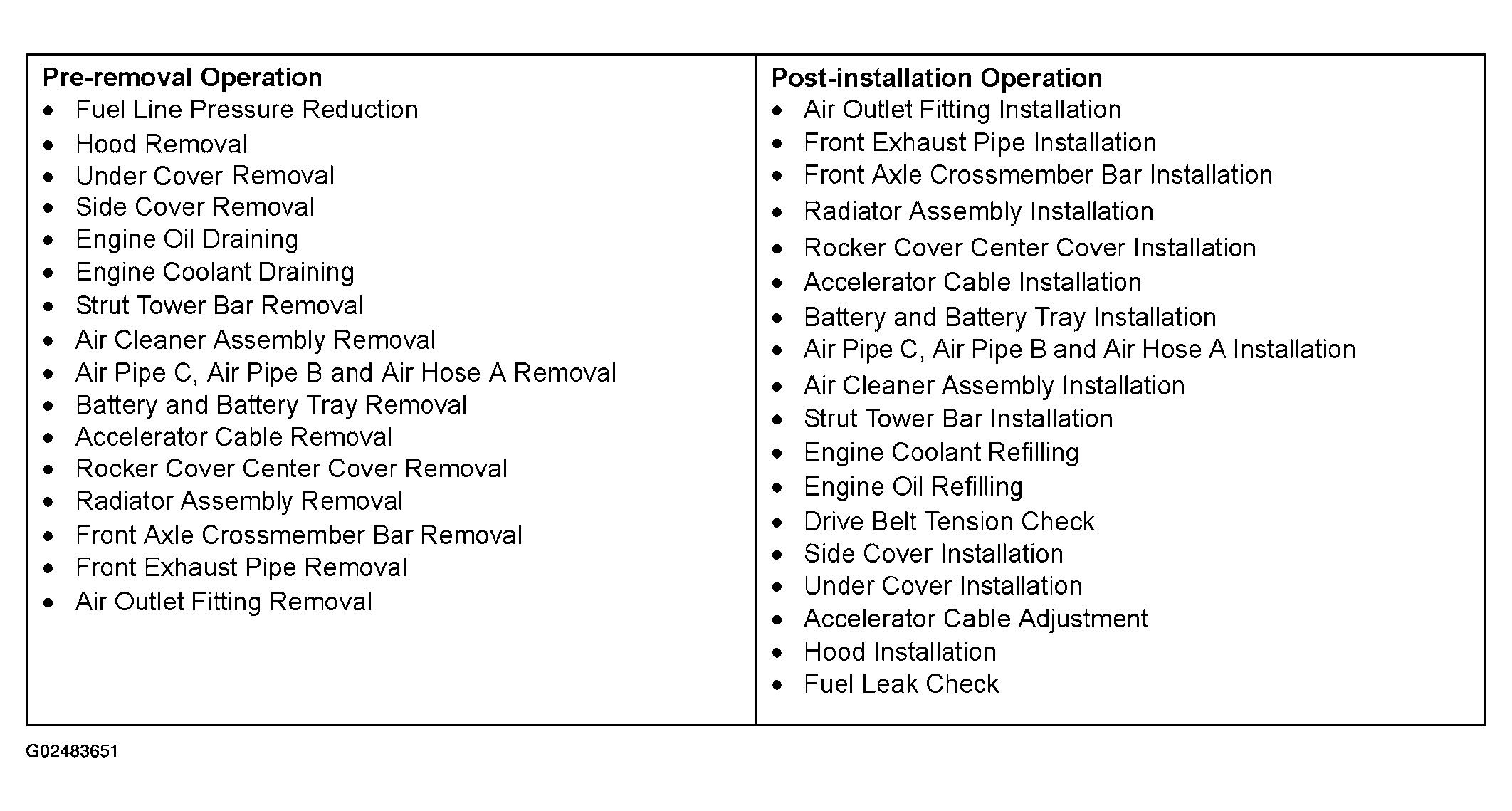

Fig 1: Engine Assembly Removing \ Installing Procedure
G02483651Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

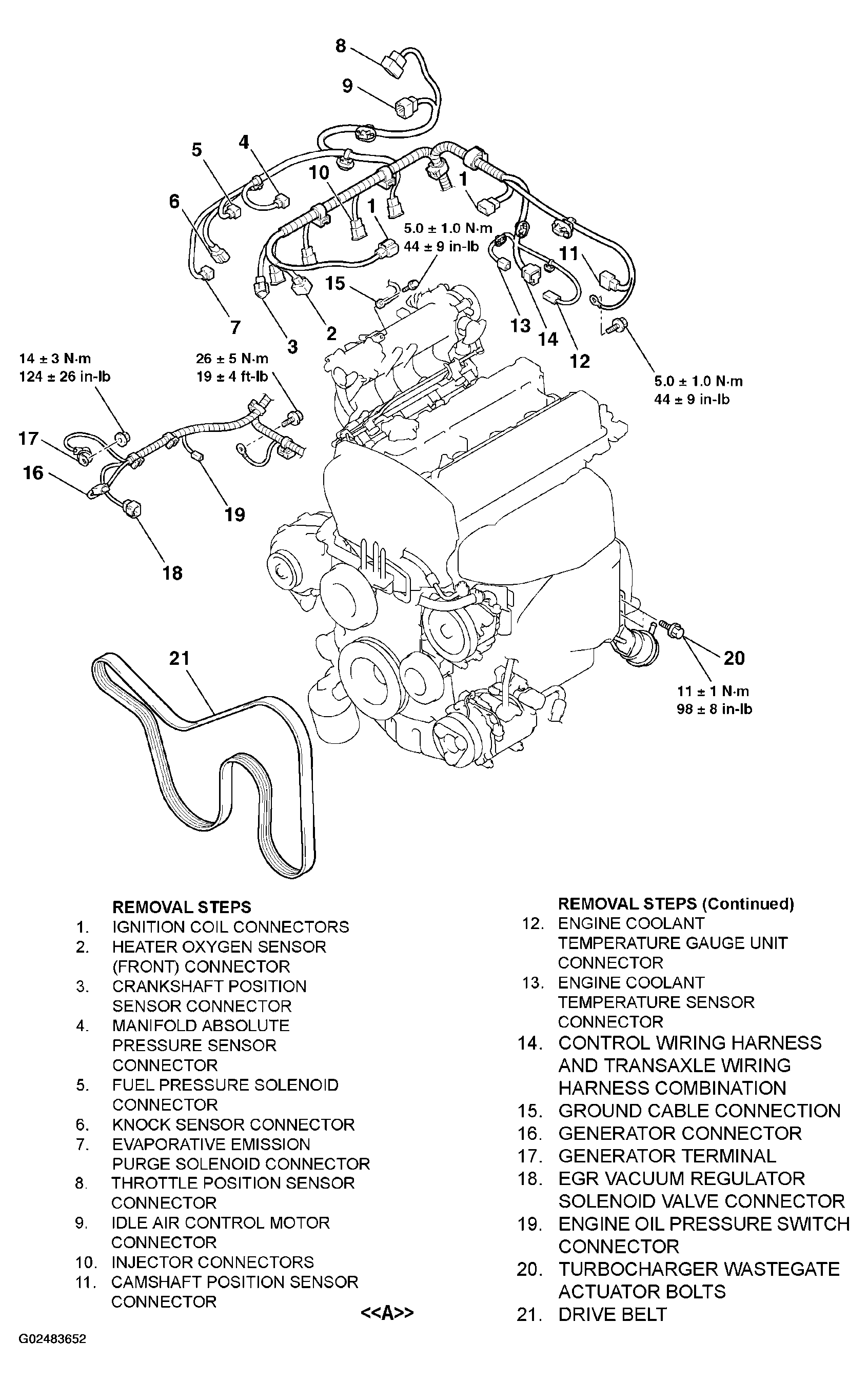

Fig 2: Engine Assembly Components And Tightening Torque (1 Of 2)
G02483652Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

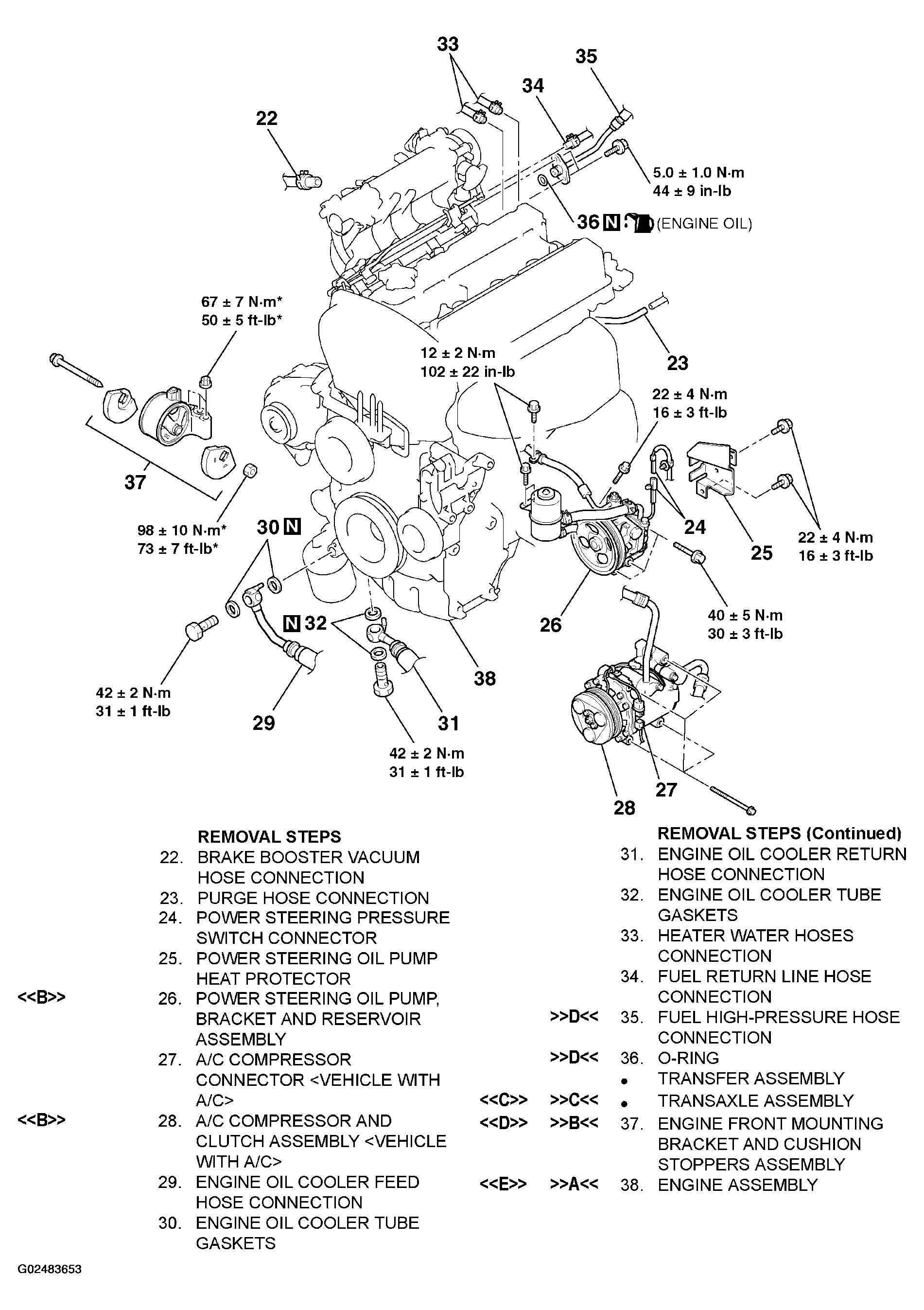

Fig 3: Engine Assembly Components And Tightening Torque (2 Of 2)
G02483653Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
