INSPECTION PROCEDURE A-1: Communication With The SWS Monitor Kit Is Not Possible.: Notes

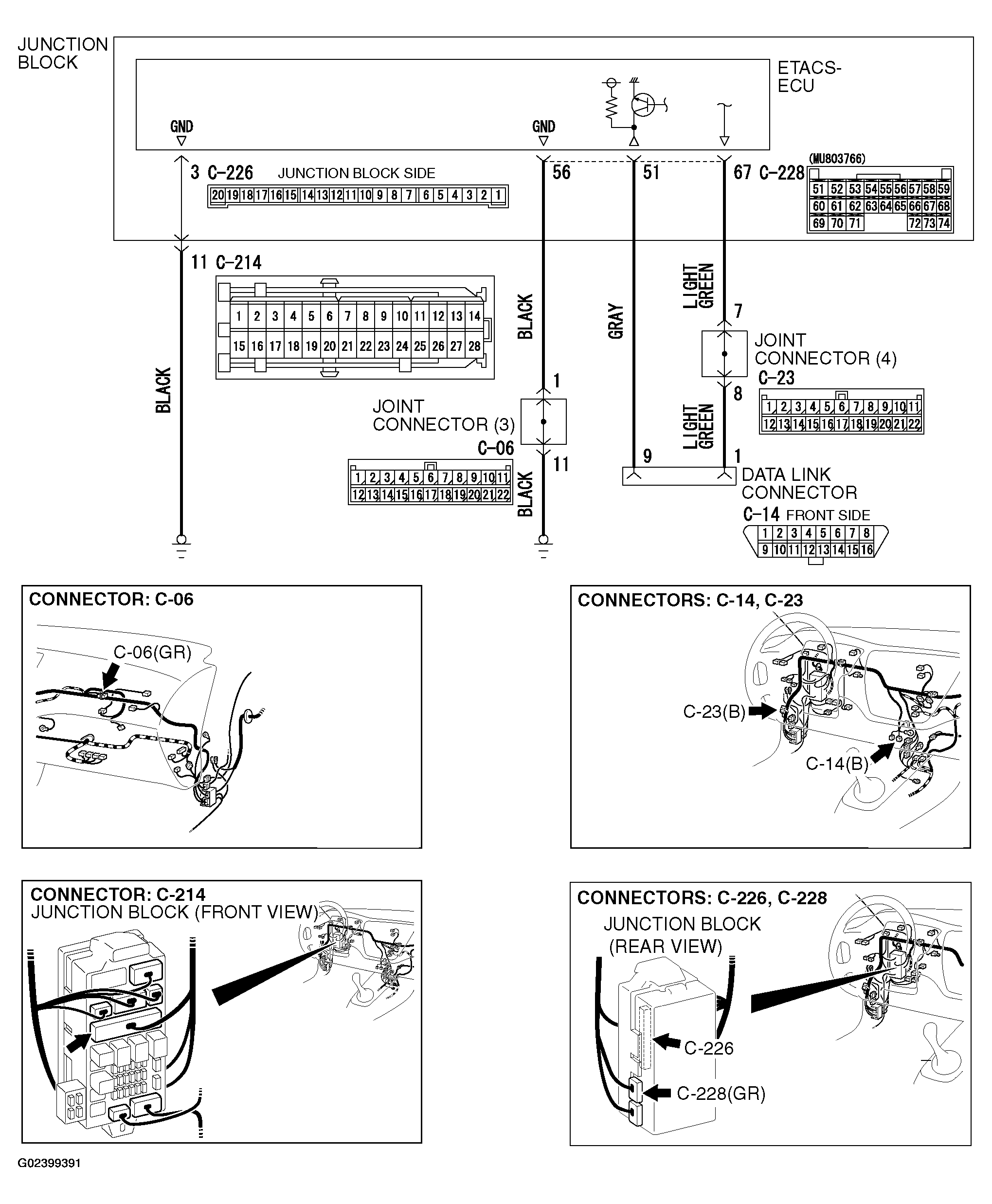

Fig 1: Scan Tool Communication And ETACS-ECU Ground Circuit Diagram
G02399391Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
