Check At Abs-Ecu: Notes

Use the following steps to remove the connector cover of the ABS-ECU and then measure the terminal voltage.

1. Move the lock lever of the ABS-ECU connector as shown in the illustration, and then disconnect the ABS-ECU as connector.

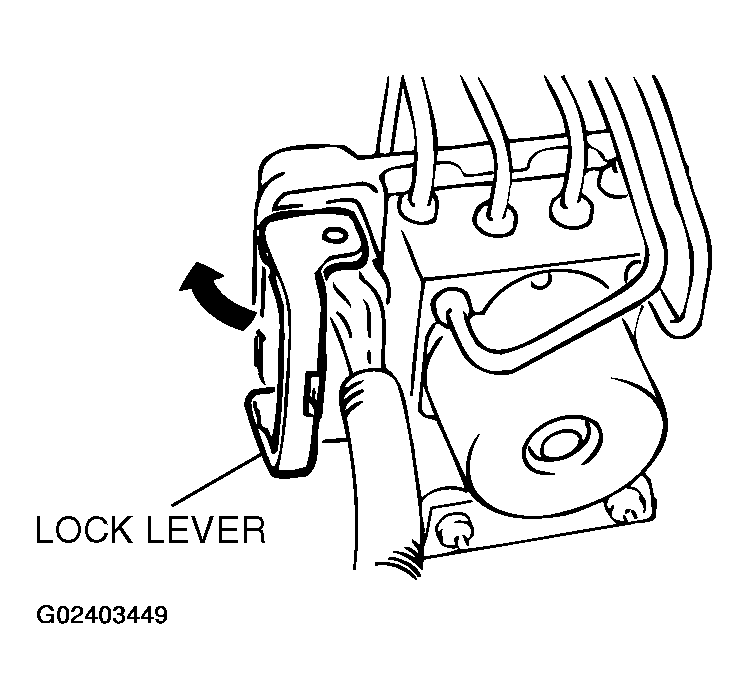

   Fig 1: Moving Lock Lever

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Push up and unlock the hooks of the ABS-ECU connector as shown in the illustration, then remove the connector cover.
   Fig 2: Identifying ABS-ECU Connector Terminal

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
