Printed-Heater Lines Check
- Run engine at 2,000 r/min. Check heater element with battery at full.

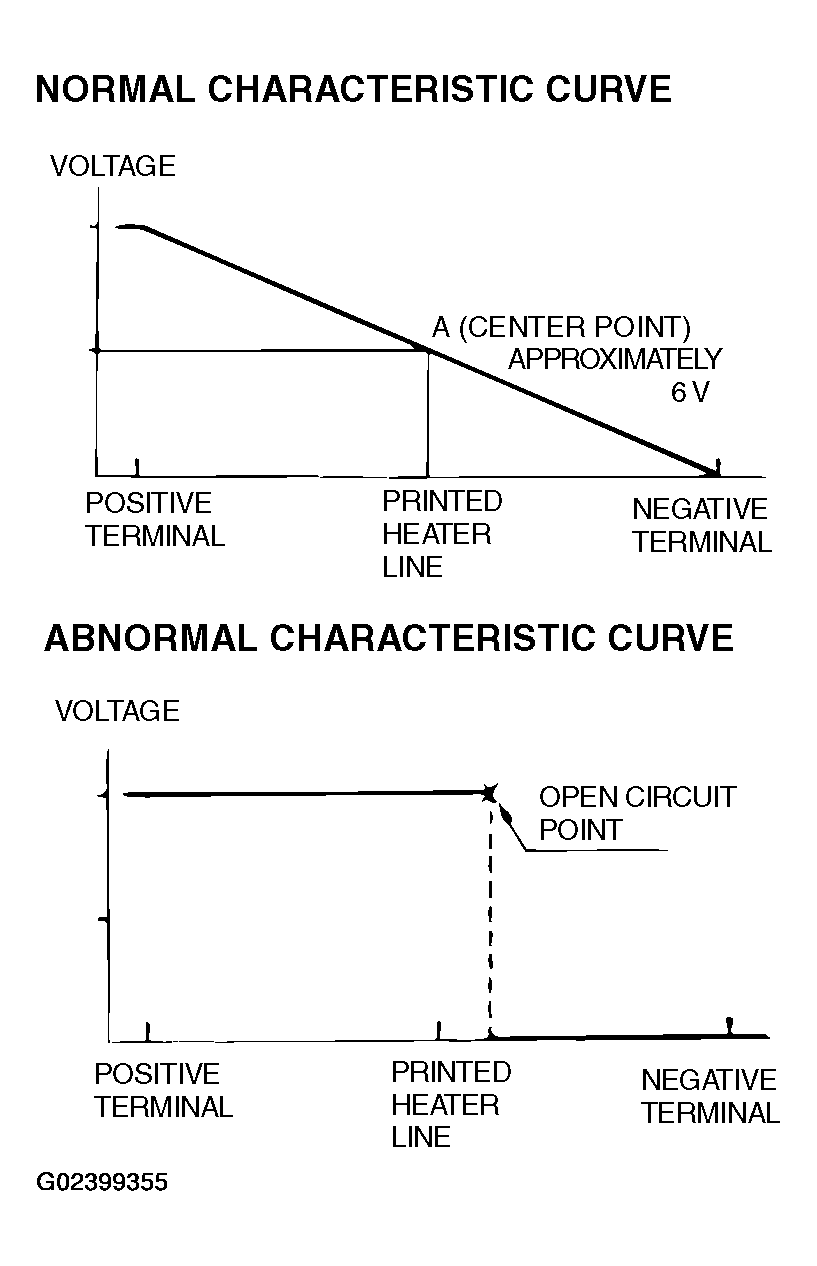

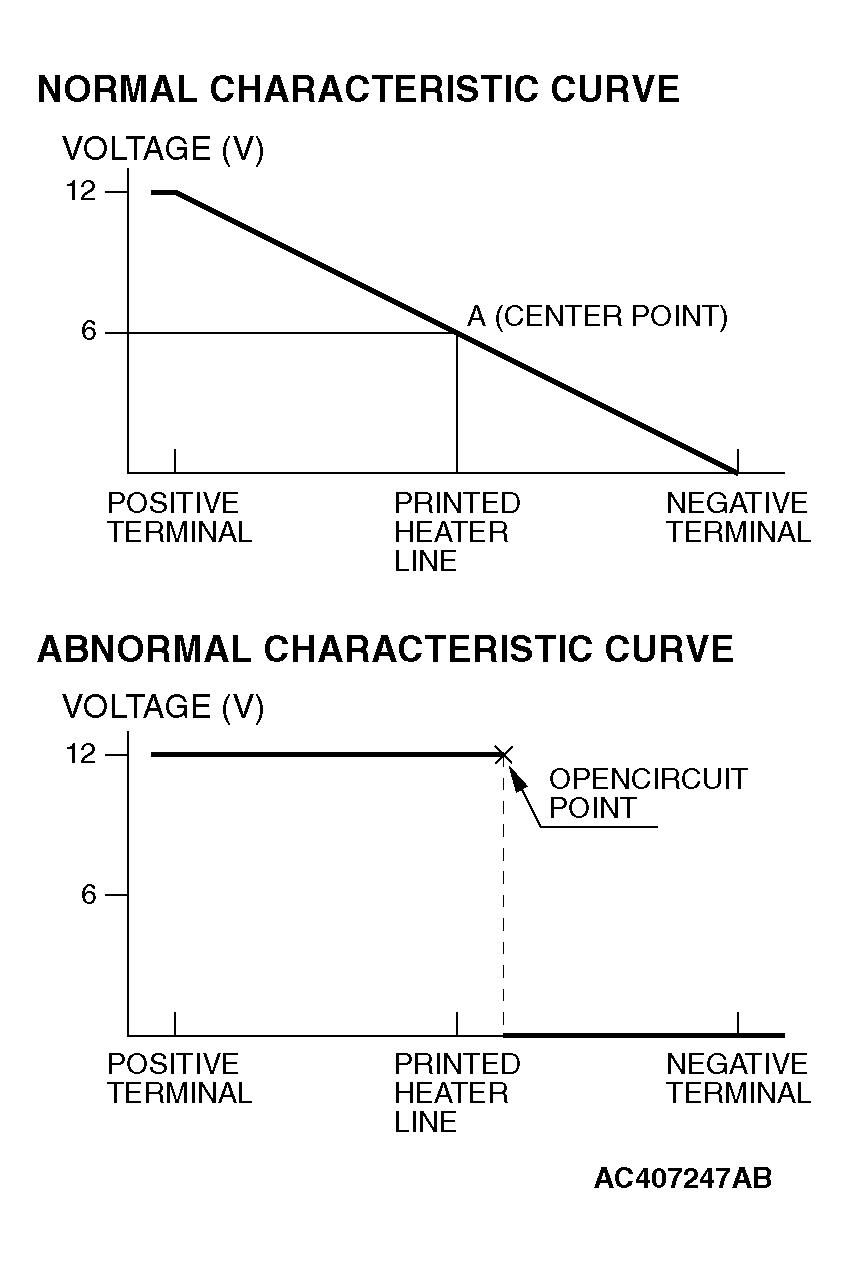

- Turn "ON" rear window defogger switch. Measure heater element voltage with circuit tester at rear window glass center A. Condition is good if it indicates about 6 V.
- If 12 V is indicated at A, there is a break in the negative terminals from A. Move test bar slowly to negative terminal to detect where voltage changes suddenly (0V).
- If 0 V is indicated at A, there is a break in the positive terminals from A. Defect where the voltage changes suddenly (12 V) in the same method described above.
