Transmission Oil Level Check

WARNING: This page is about a different variant/trim than selected.
Fig 1: Checking Transmission Oil Level
G02412275Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Remove the filler plug.
  2. Check that the oil level is up to the lower edge of the filler plug hole.
  3. Check that the oil is not noticeably dirty.
  4. Tighten the filler plug to the specified torque.
    • Tightening torque: 32 +/- 2 N-m (24 +/- 1 ft-lb)

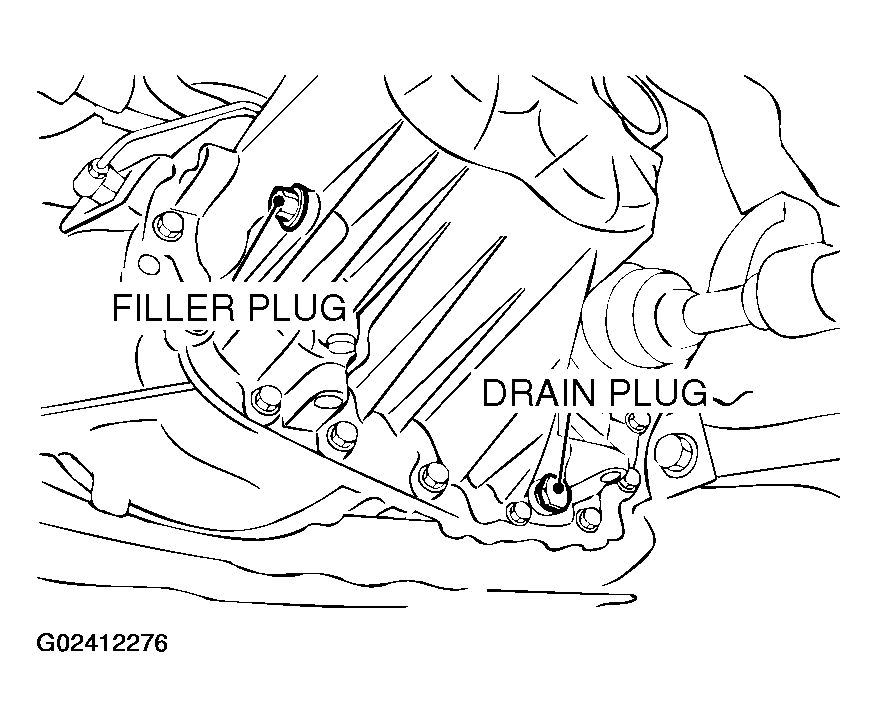

    Fig 2: Identifying Transmission Filler Plug And Drain Plug
    G02412276Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
