Removal And Installation < 2.4L Engine >

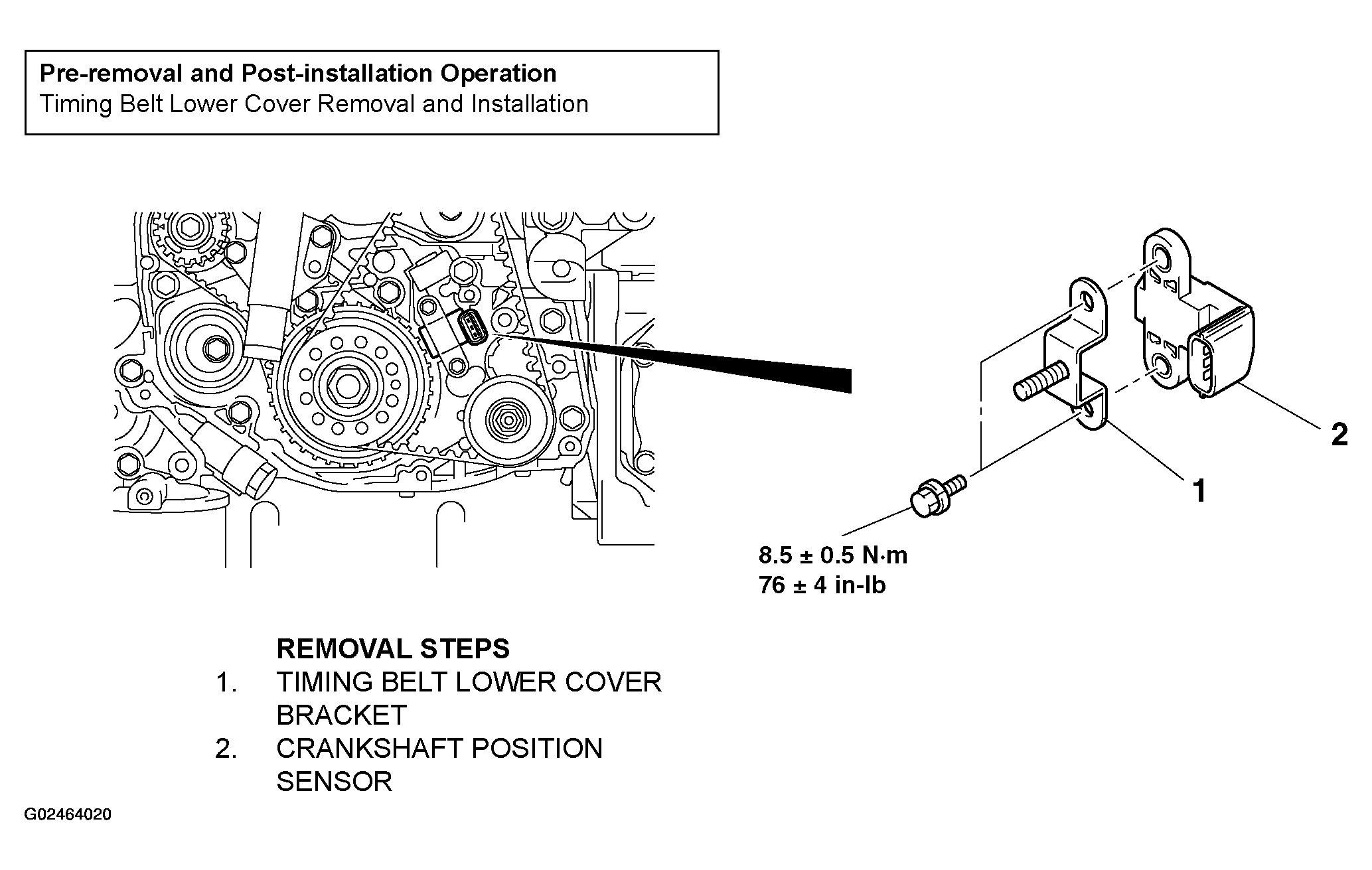

Fig 1: Removal Steps Of Crankshaft Position Sensor - 2.4L Engine
G02464020Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
