Construction Diagram

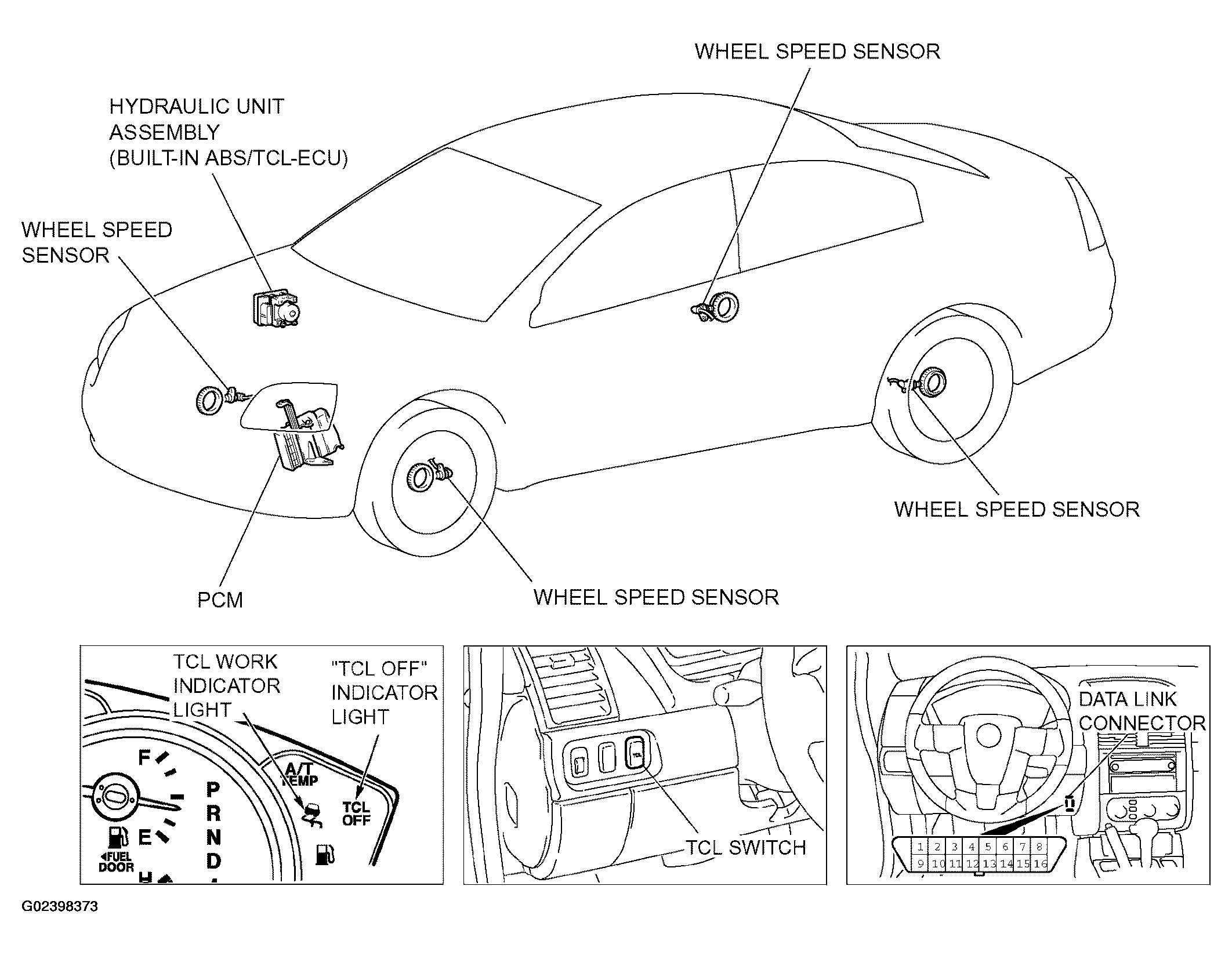

Fig 1: Identifying Traction Control System Components
G02398373Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
