Check At Multi Center Display Unit Terminal

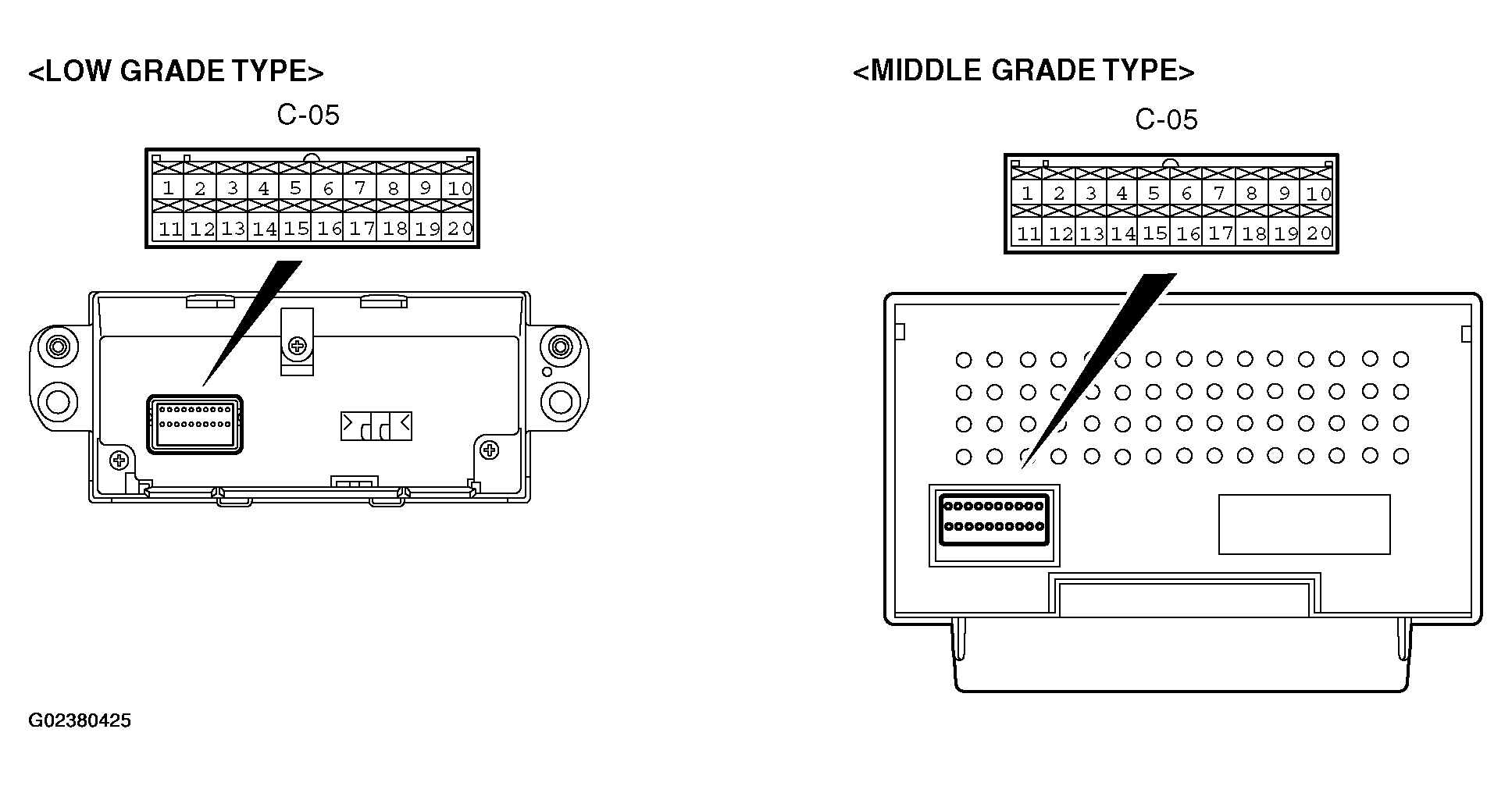

Fig 1: Identifying Multi Center Connector Terminals
G02380425Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

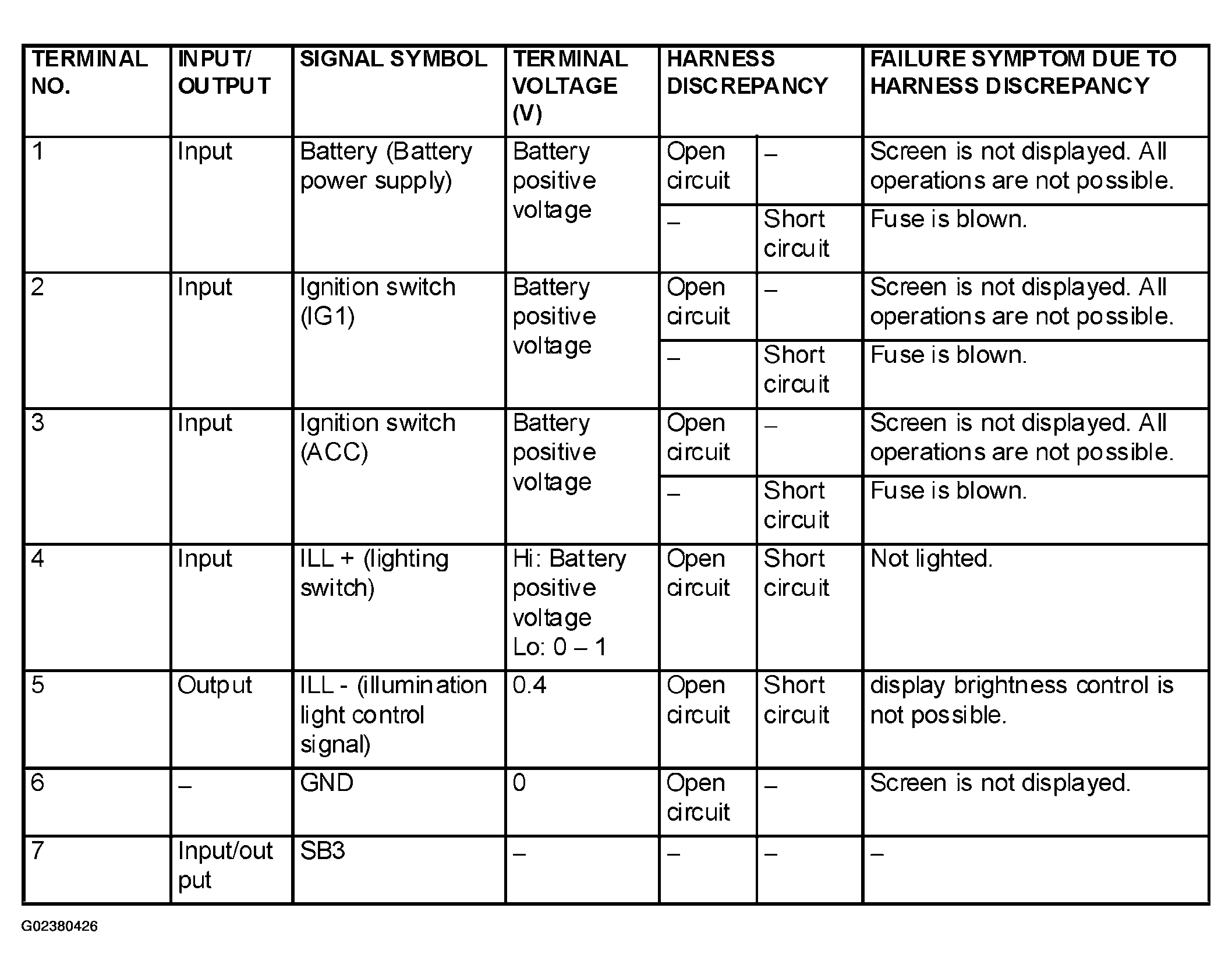

Fig 2: Terminal Voltage Specifications (1 Of 2)
G02380426Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

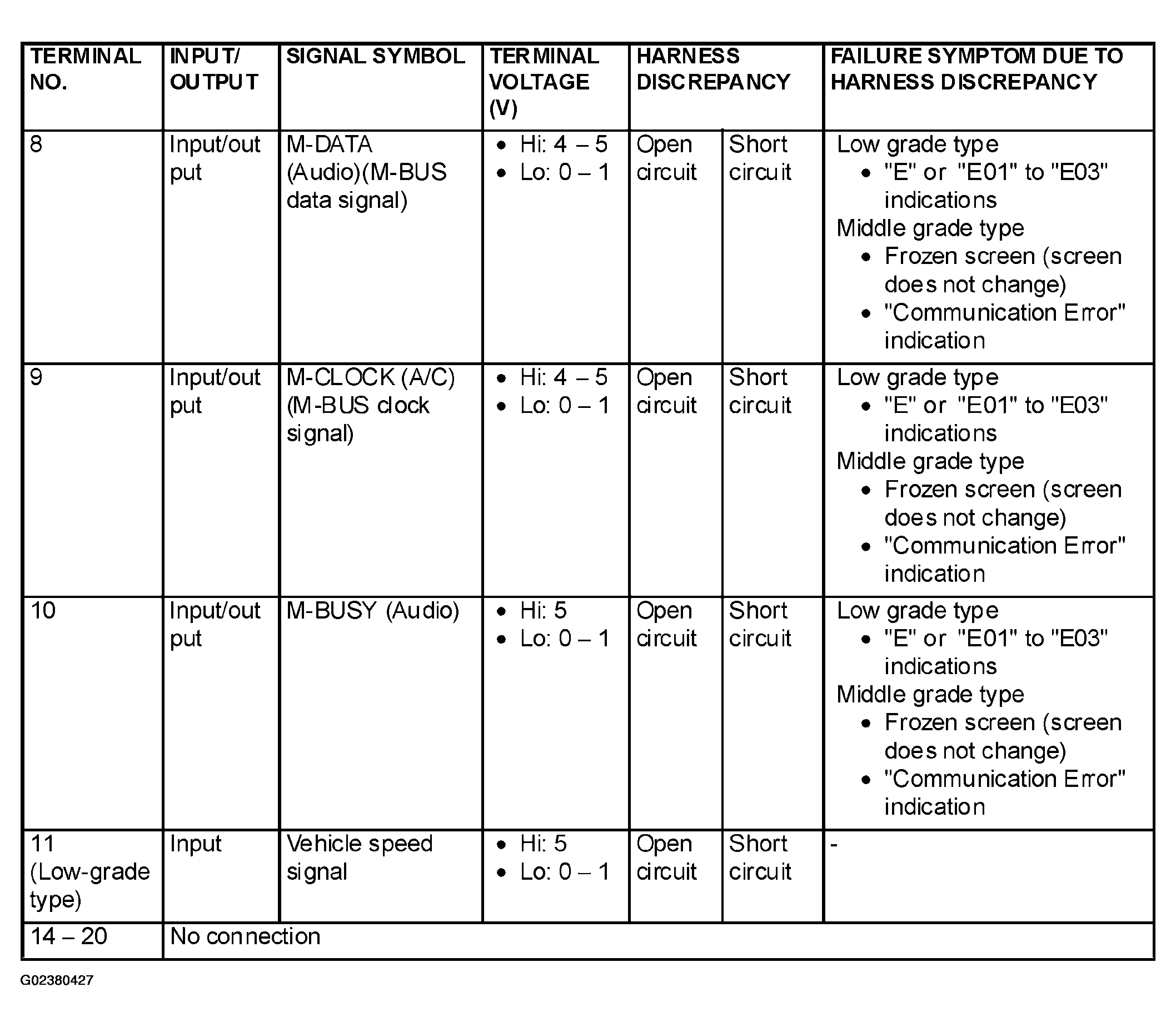

Fig 3: Terminal Voltage Specifications (2 Of 2)
G02380427Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
