Defogger Relay Continuity Check

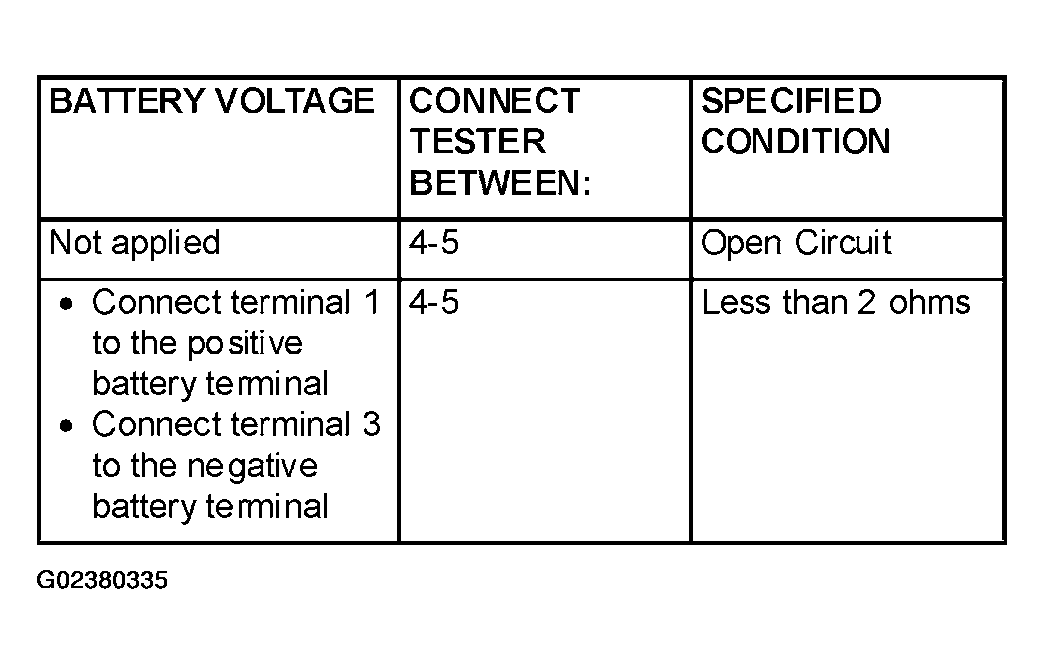

Fig 1: Battery Voltage & Specified Condition Chart
G02380335Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

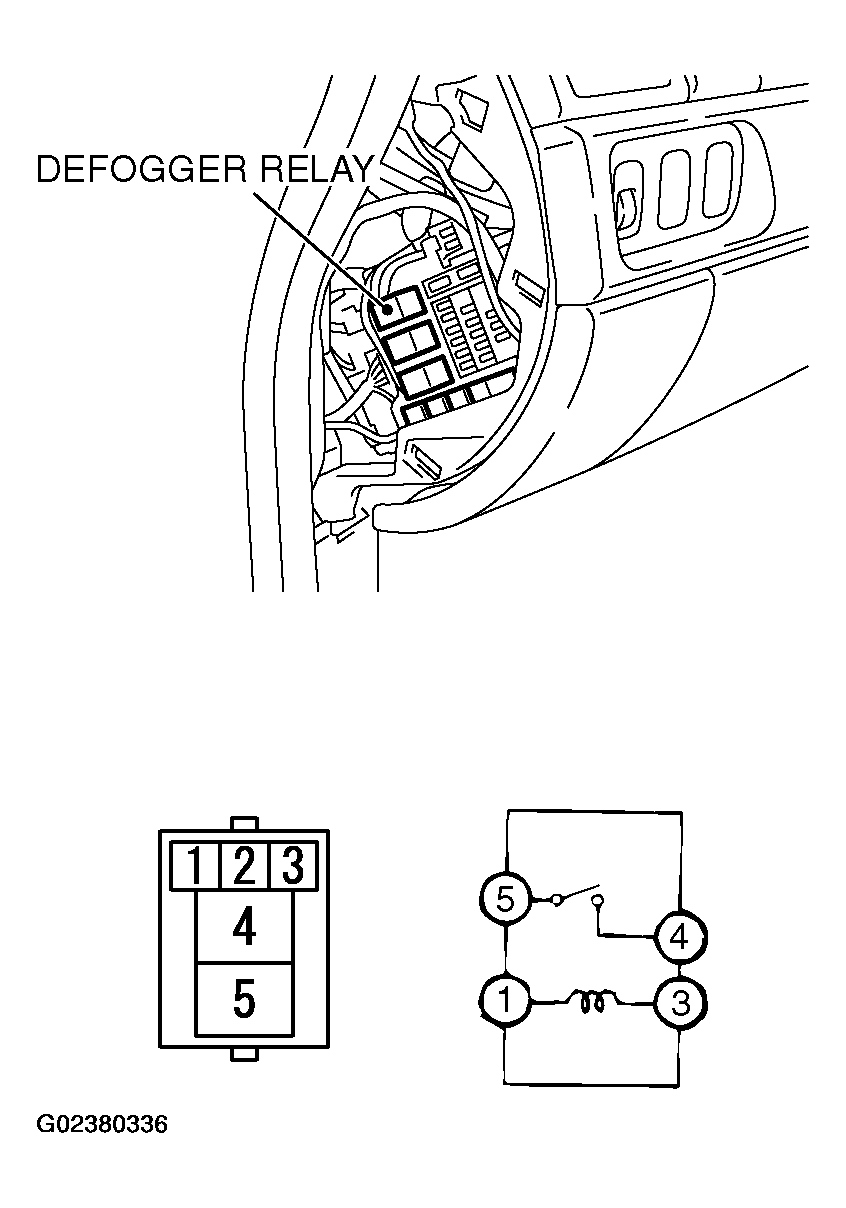

Fig 2: Checking Defogger Relay Continuity
G02380336Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
