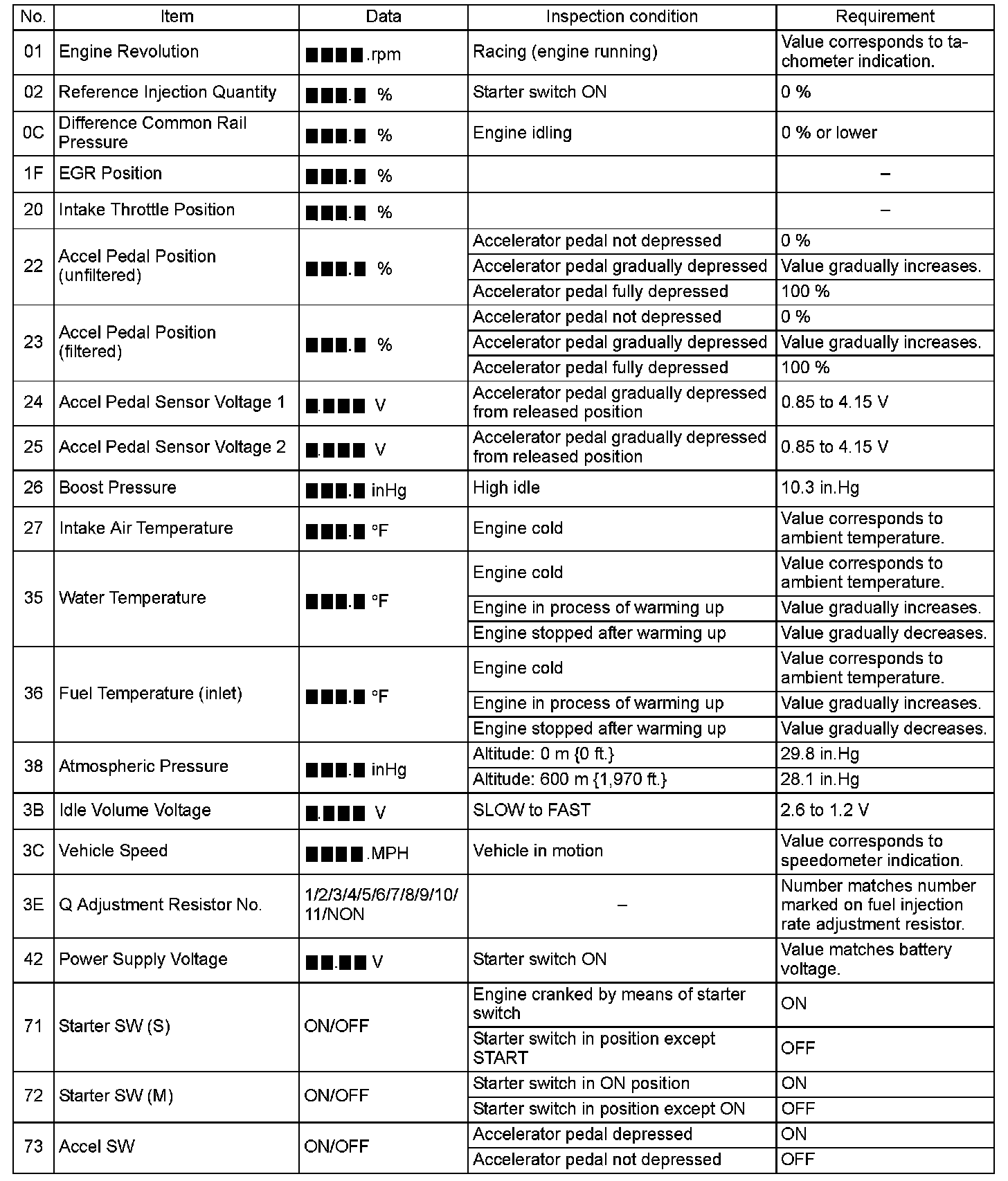

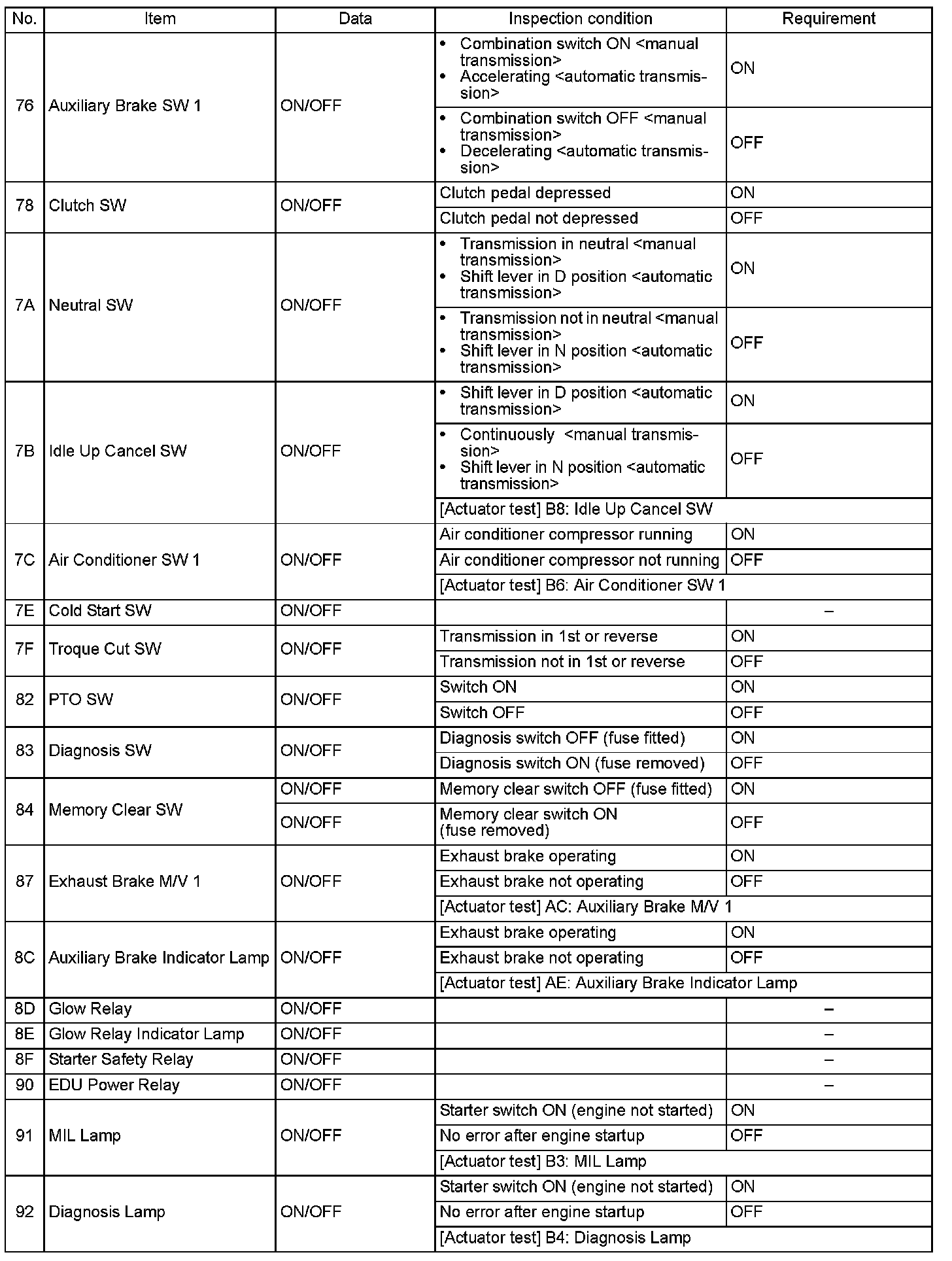

Multi-Use Tester Service Data

Multi-Use Tester Service Data

NOTE: It is possible to see service data and actuator tests simultaneously.
