Home >> Mitsubishi >> 2005 >> Endeavor V6-3.8L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Control Arm >> Rear >> Toe Control Arm

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

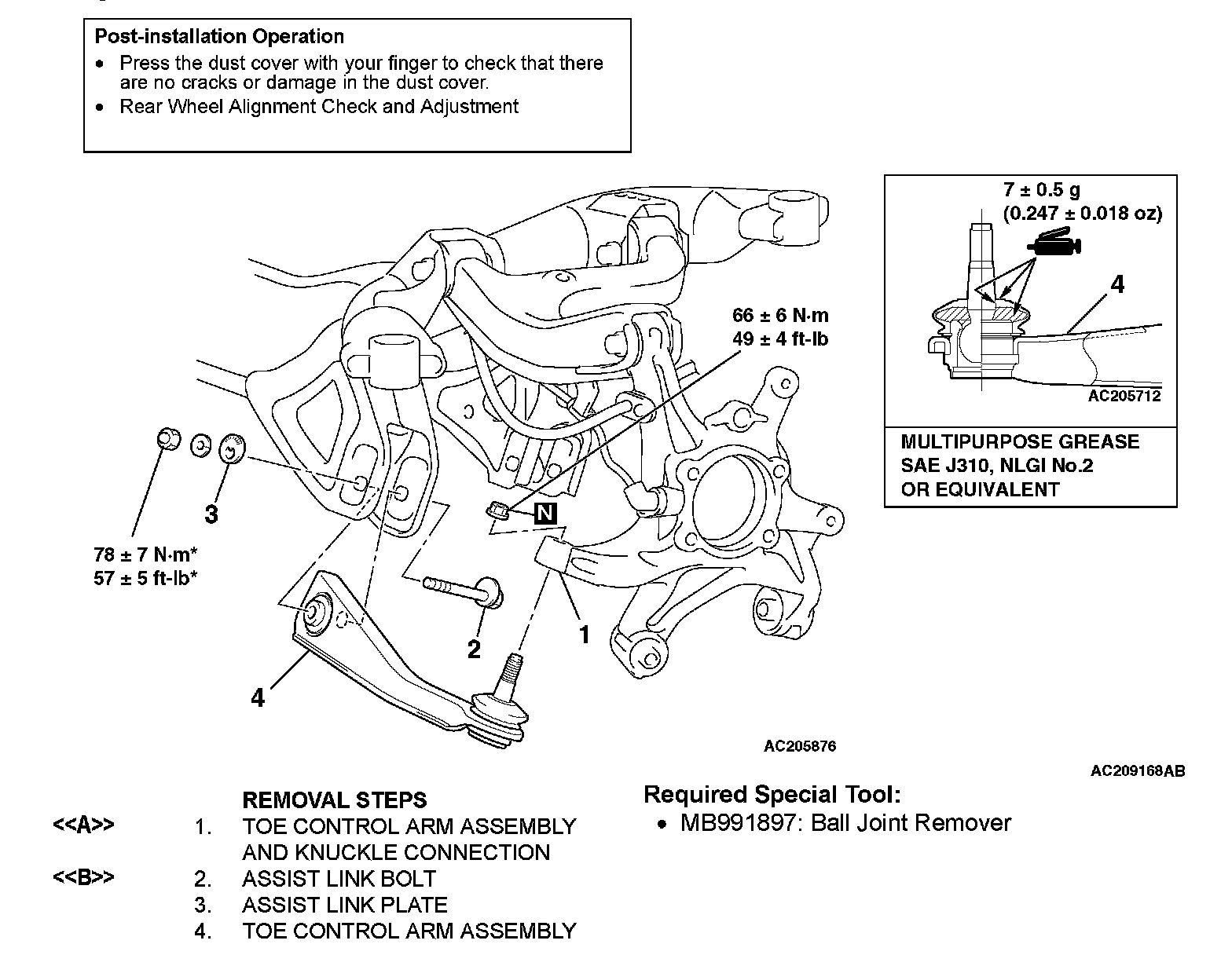

Toe Control Arm
