Sectional View < W4A5A >

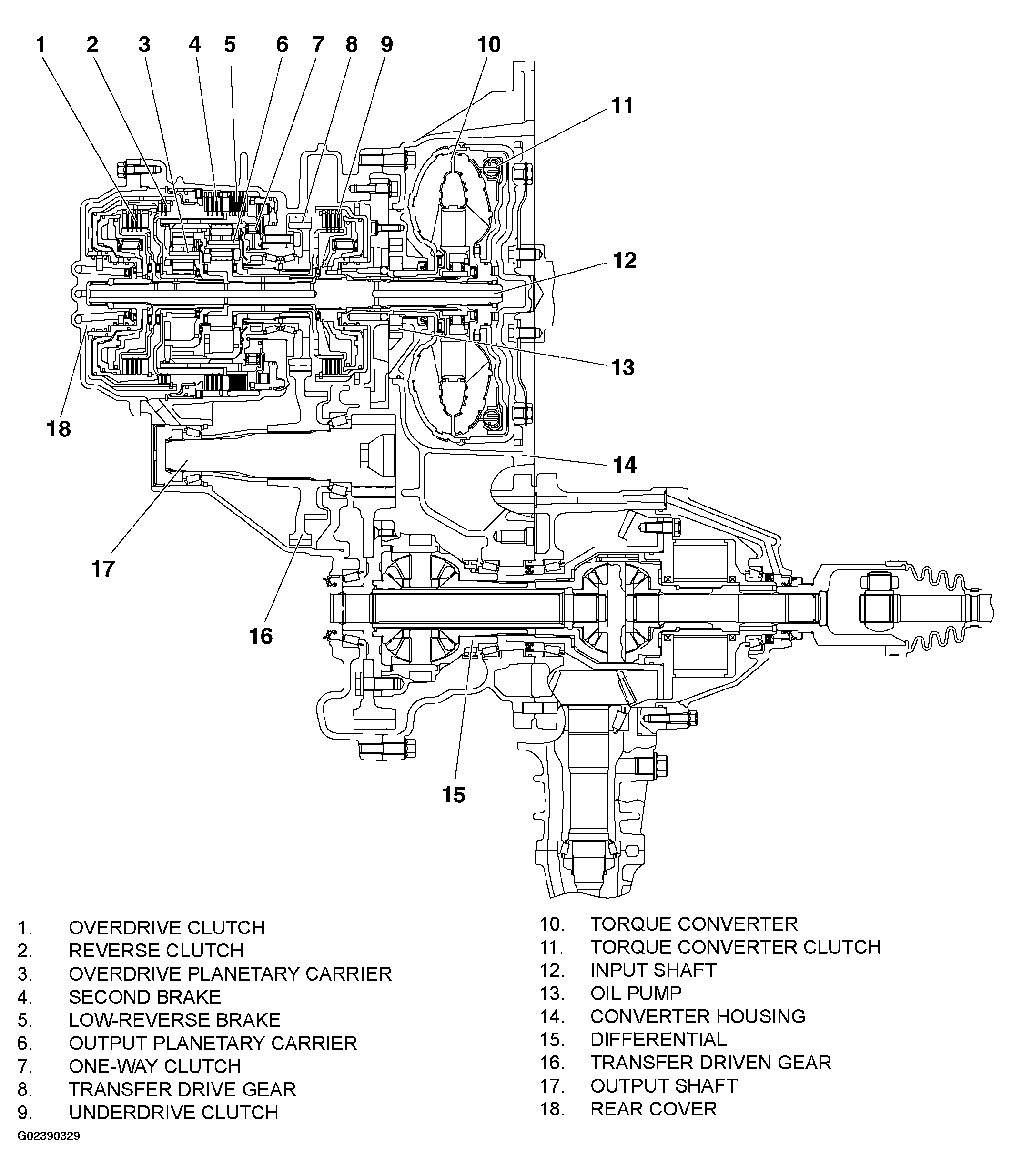

Fig 1: Identifying Automatic Transaxle Sectional View < W4A5A >
G02390329Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
