Eclipse

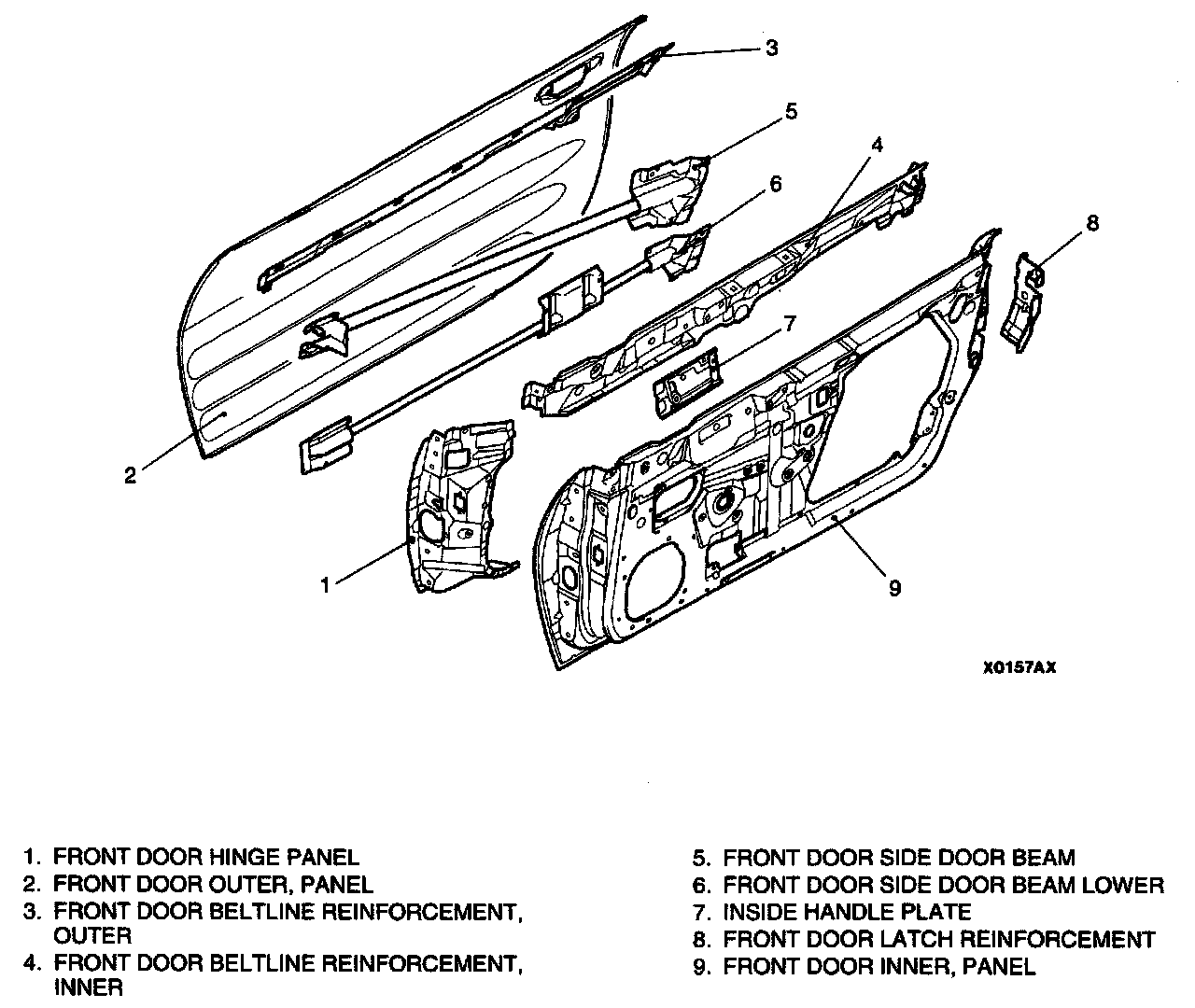

DOOR




Two side door beams have been provided inside the doors to maintain the safety of passengers in the event of a forward or side impact.
