Removal And Installation: Notes

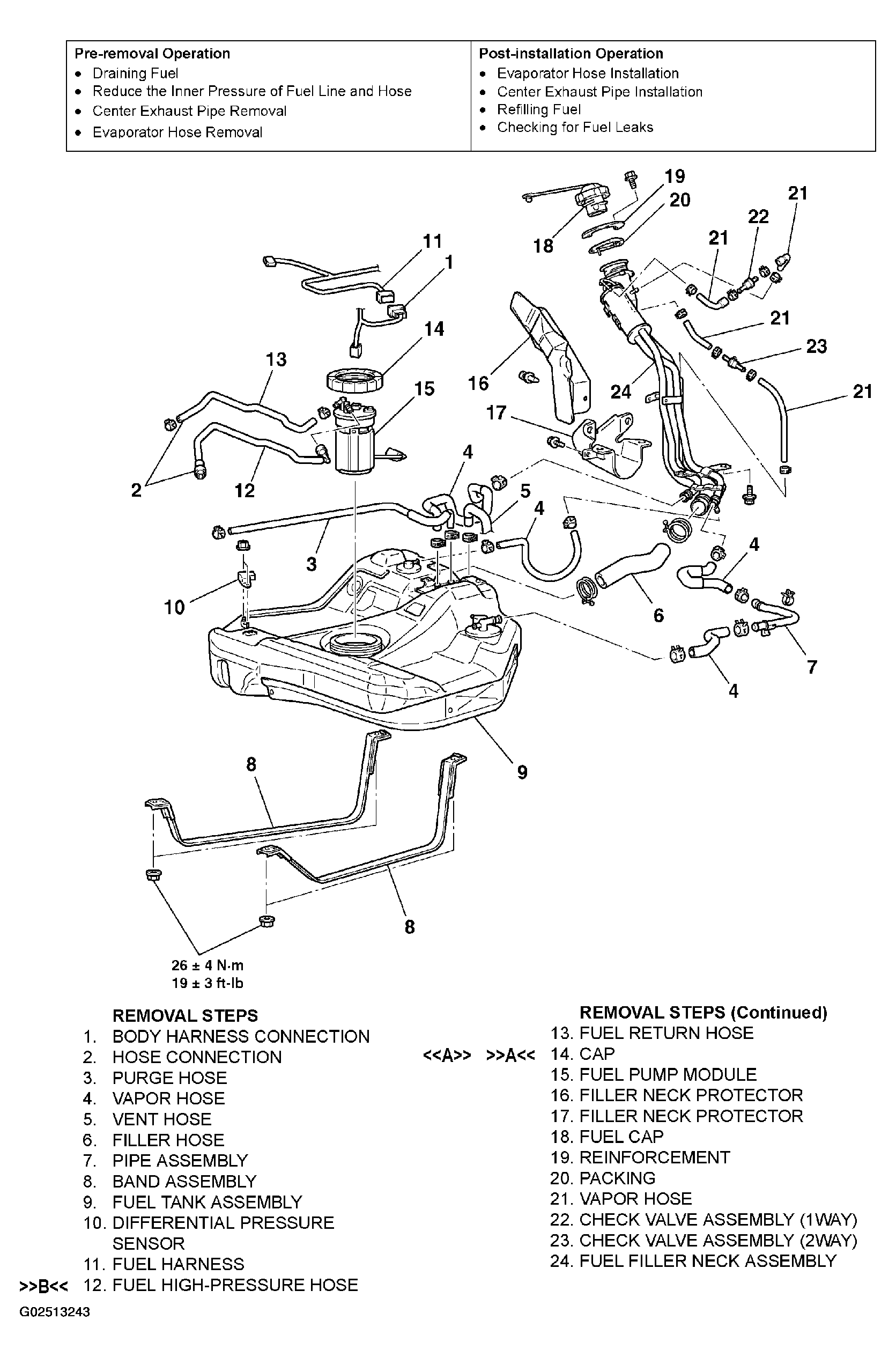

Fig 1: Removing/Installing Fuel Tank Components
G02513243Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
