DTC 11: TP Sensor System (Short Circuit): Notes

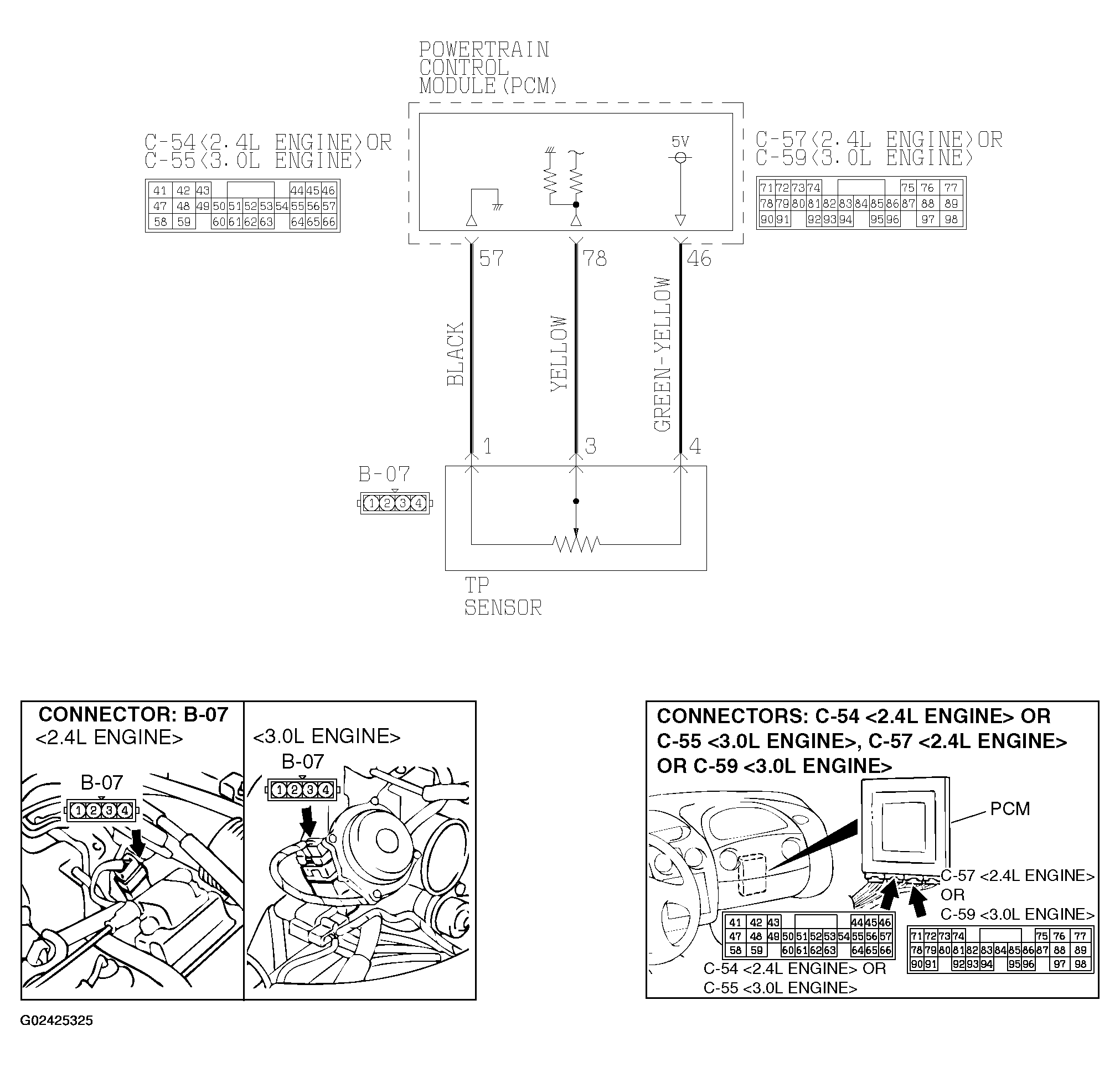

Fig 1: TP Sensor System - Circuit Diagram & Connector Identification
G02425325Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
