Disassembly And Assembly: Notes

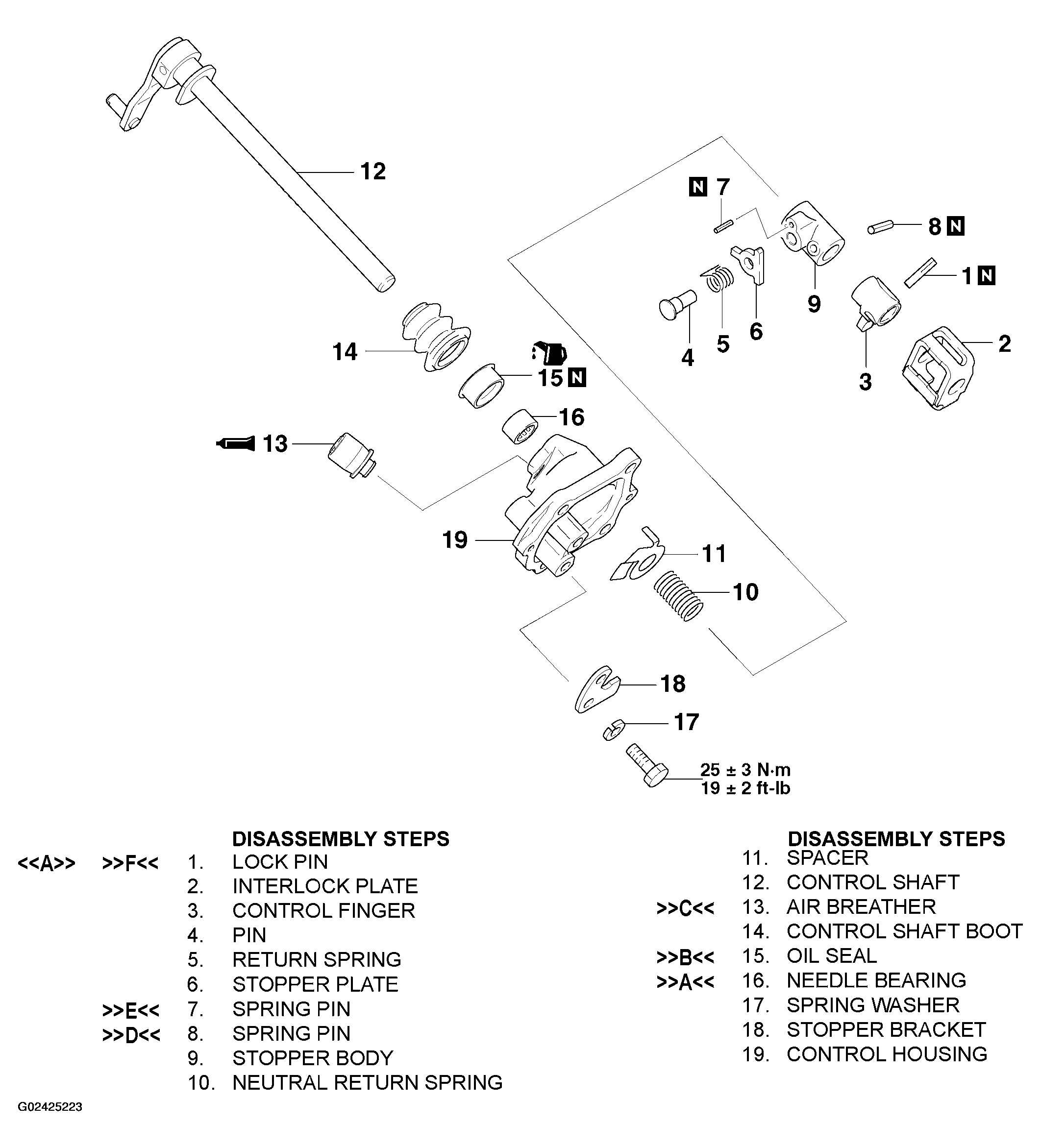

Fig 1: Disassembly Steps Of Control Housing
G02425223Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
