On-Vehicle Service: General Description: Notes

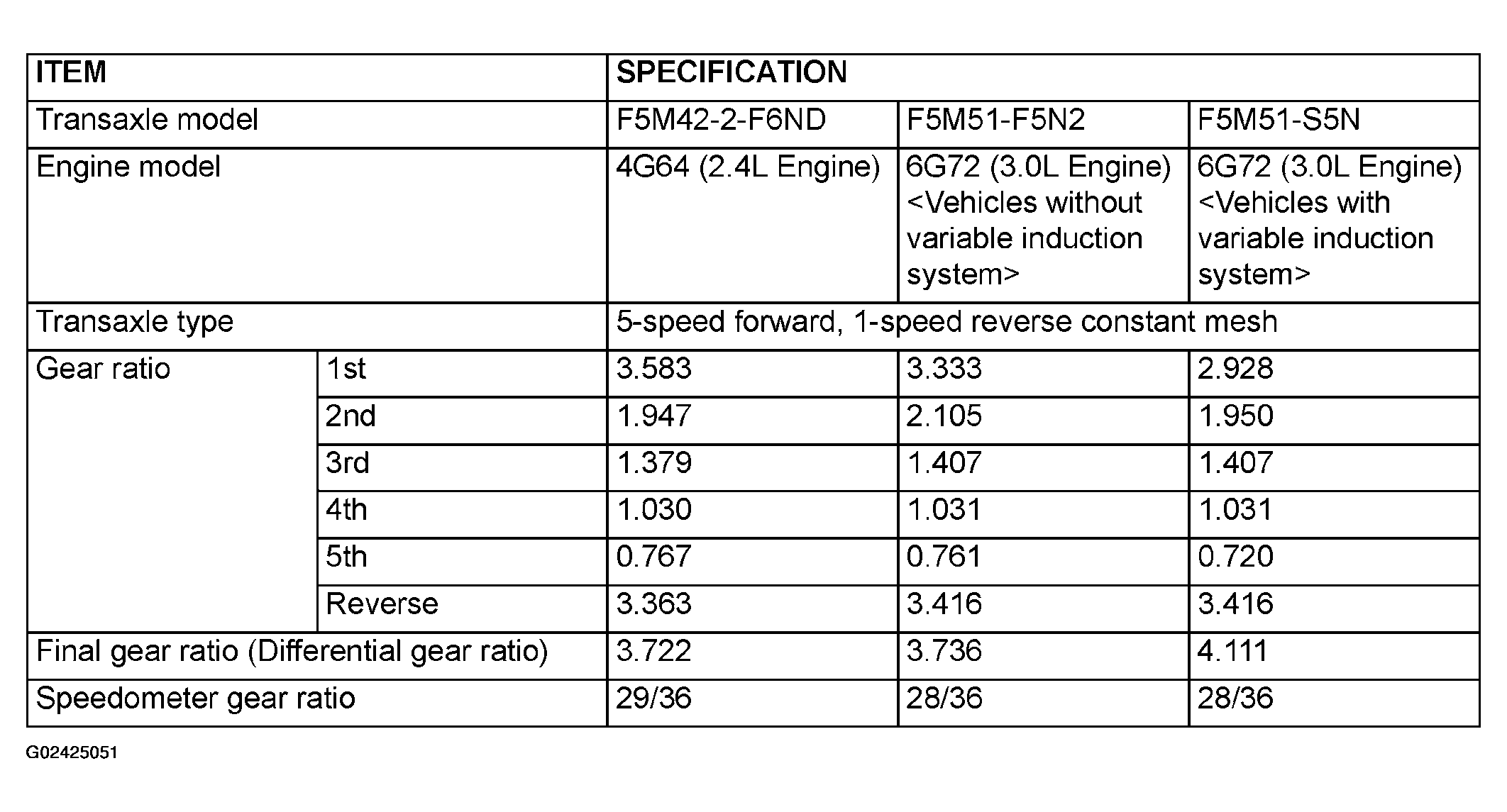

Fig 1: Manual Transaxle - General Description Chart
G02425051Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
