DTC 94: Right Hand Side-Impact Sensor Power Supply Circuit System: Notes

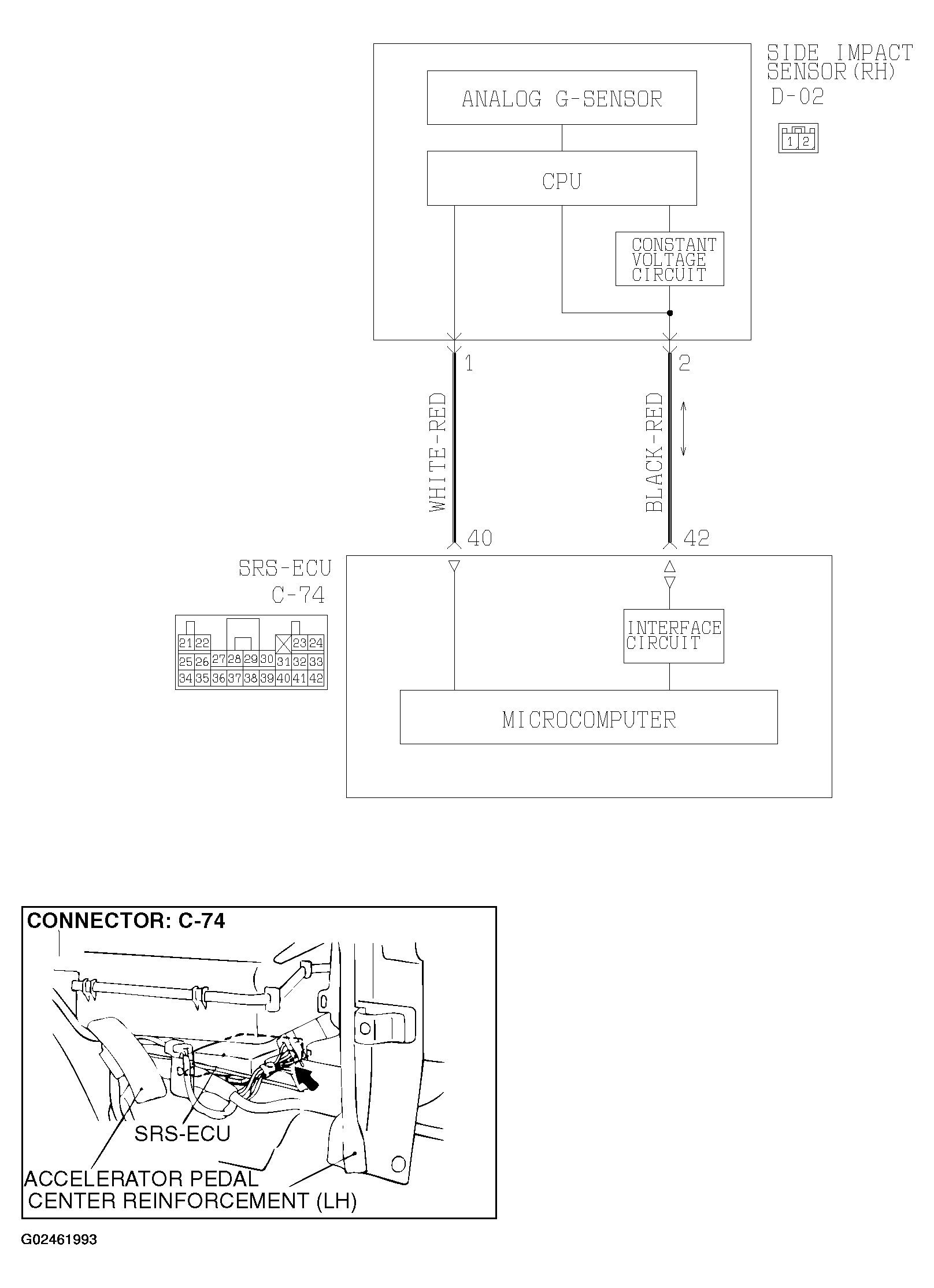

Fig 1: Side Impact Sensor (RH) Power Supply Circuit Diagram & Connector Identification (1 Of 2)
G02461993Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

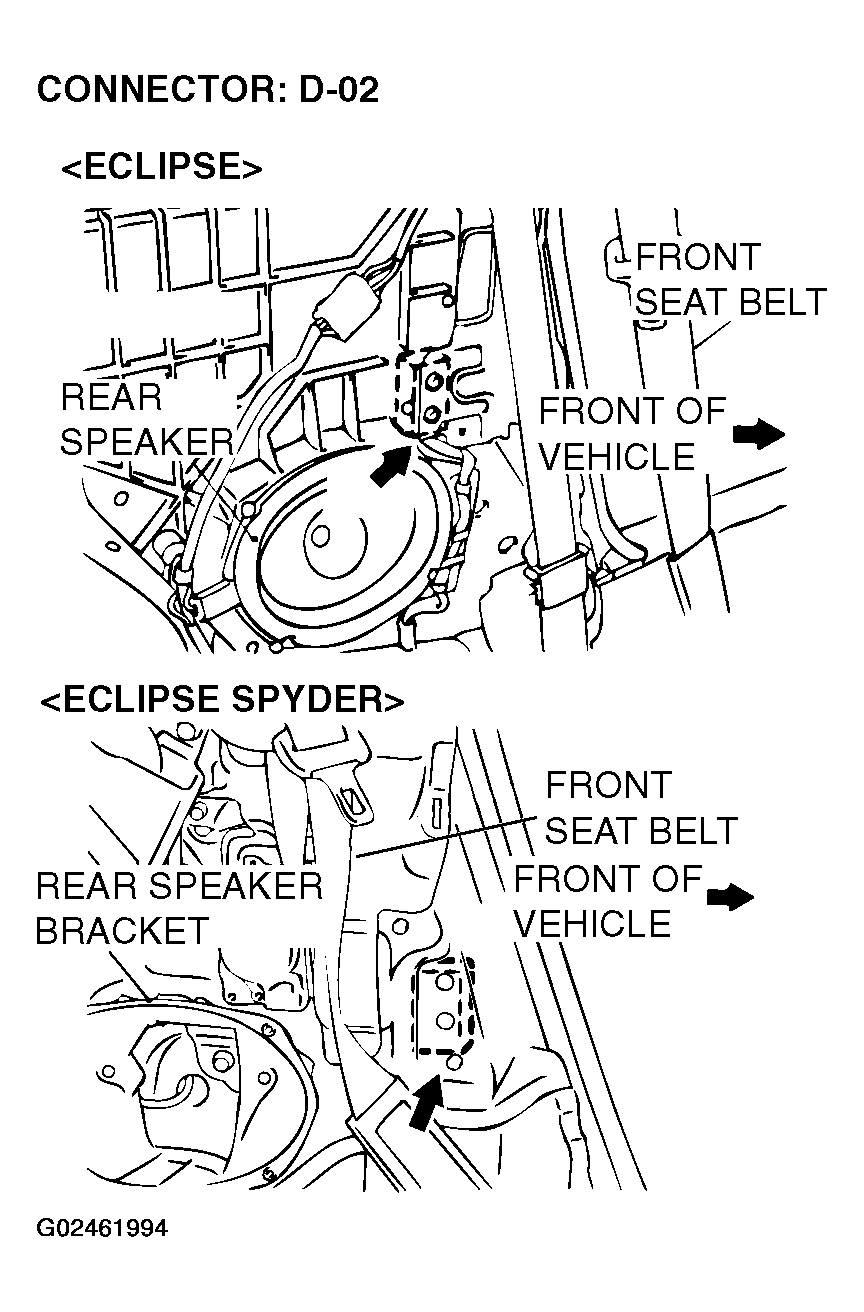

Fig 2: Side Impact Sensor (RH) Power Supply Circuit Diagram & Connector Identification (2 Of 2)
G02461994Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
