<2.4L Engine>
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
<2.4L Engine>

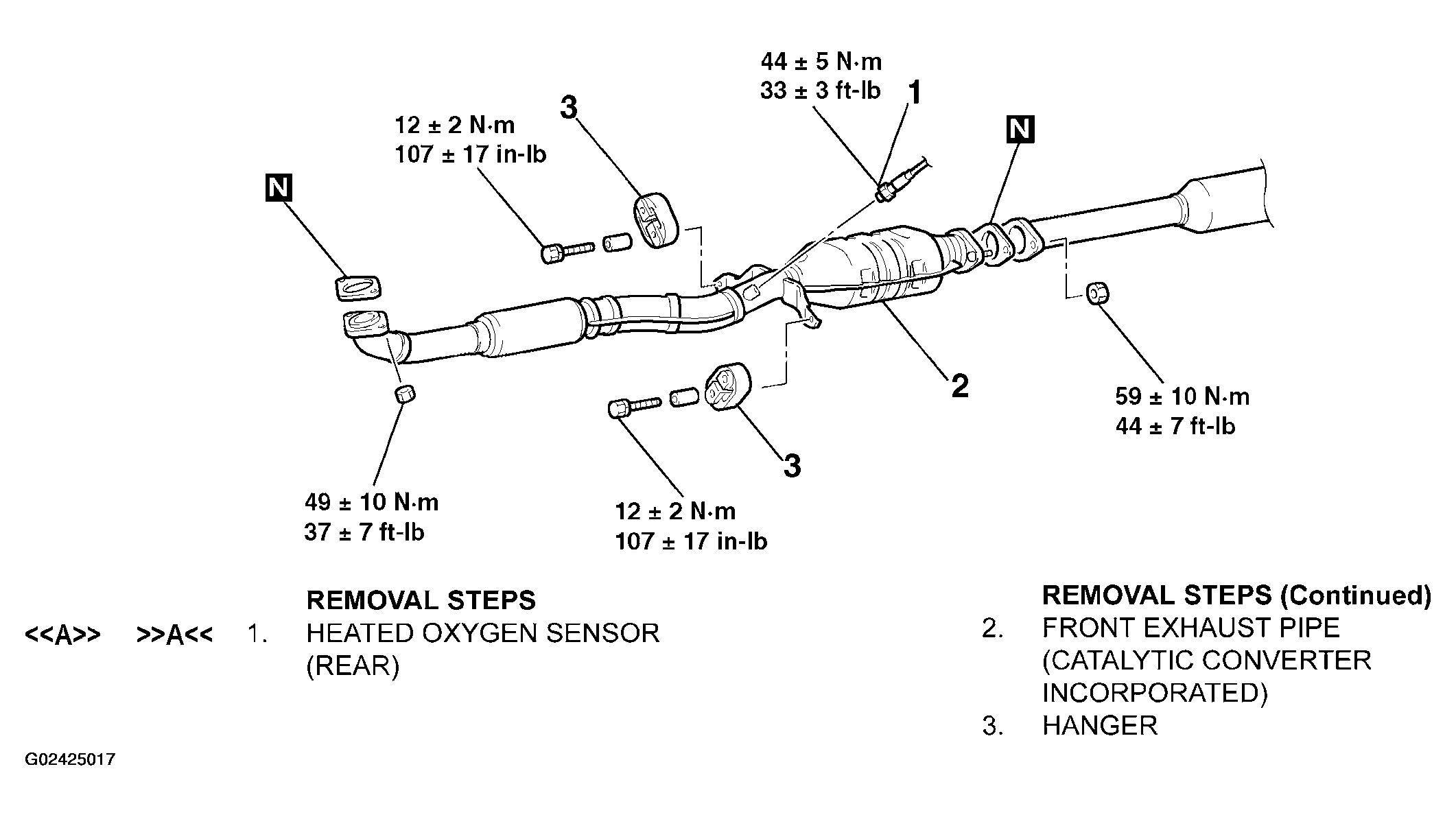

Fig 1: Removing/Installing Catalytic Converter Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
