Stoplight Switch

  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch.

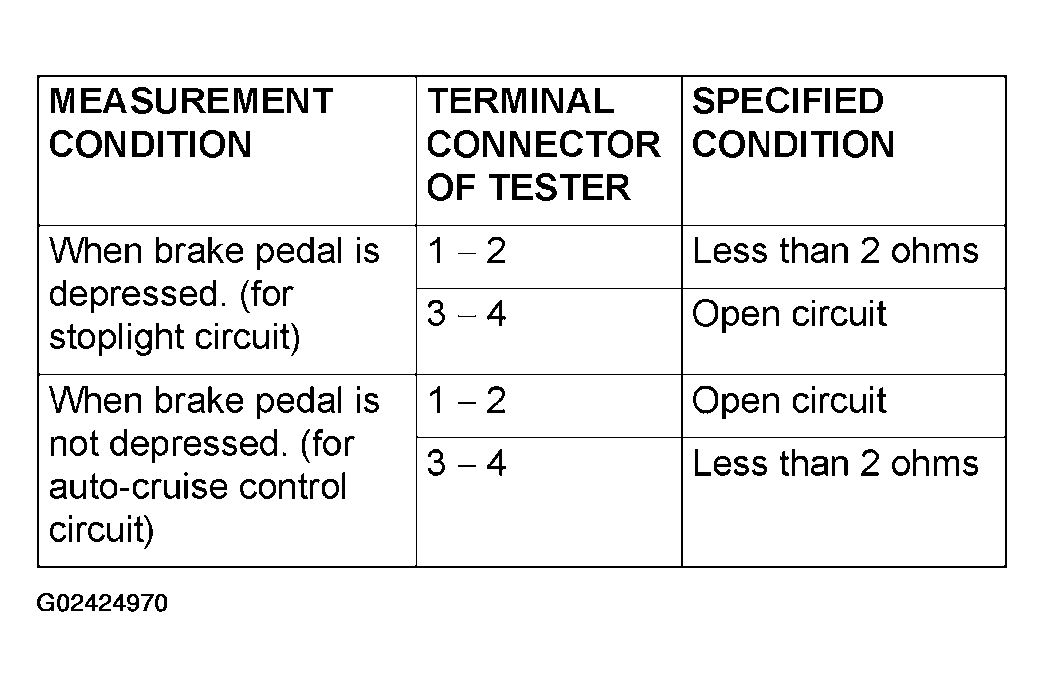

    Fig 1: Terminal Condition Specification
    G02424970Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Identifying Connector Terminals Stoplight Switch
    G02424971Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
