Disassembly And Assembly

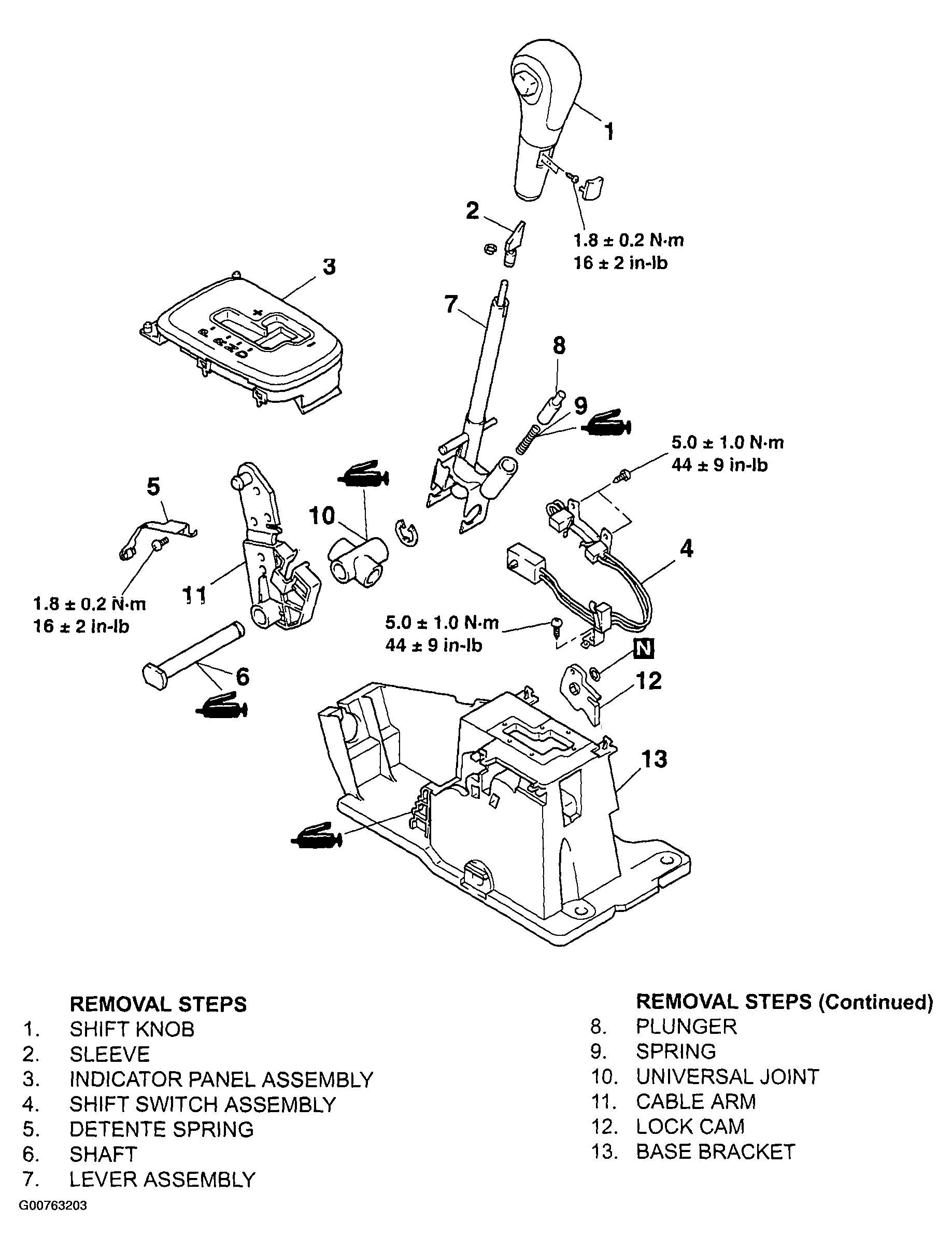

Fig 1: Exploded View Of Shift Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
