General Description
>>
Shift Pattern Control
>>
F4A4B < Downshift Pattern >
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
F4A4B < Downshift Pattern >

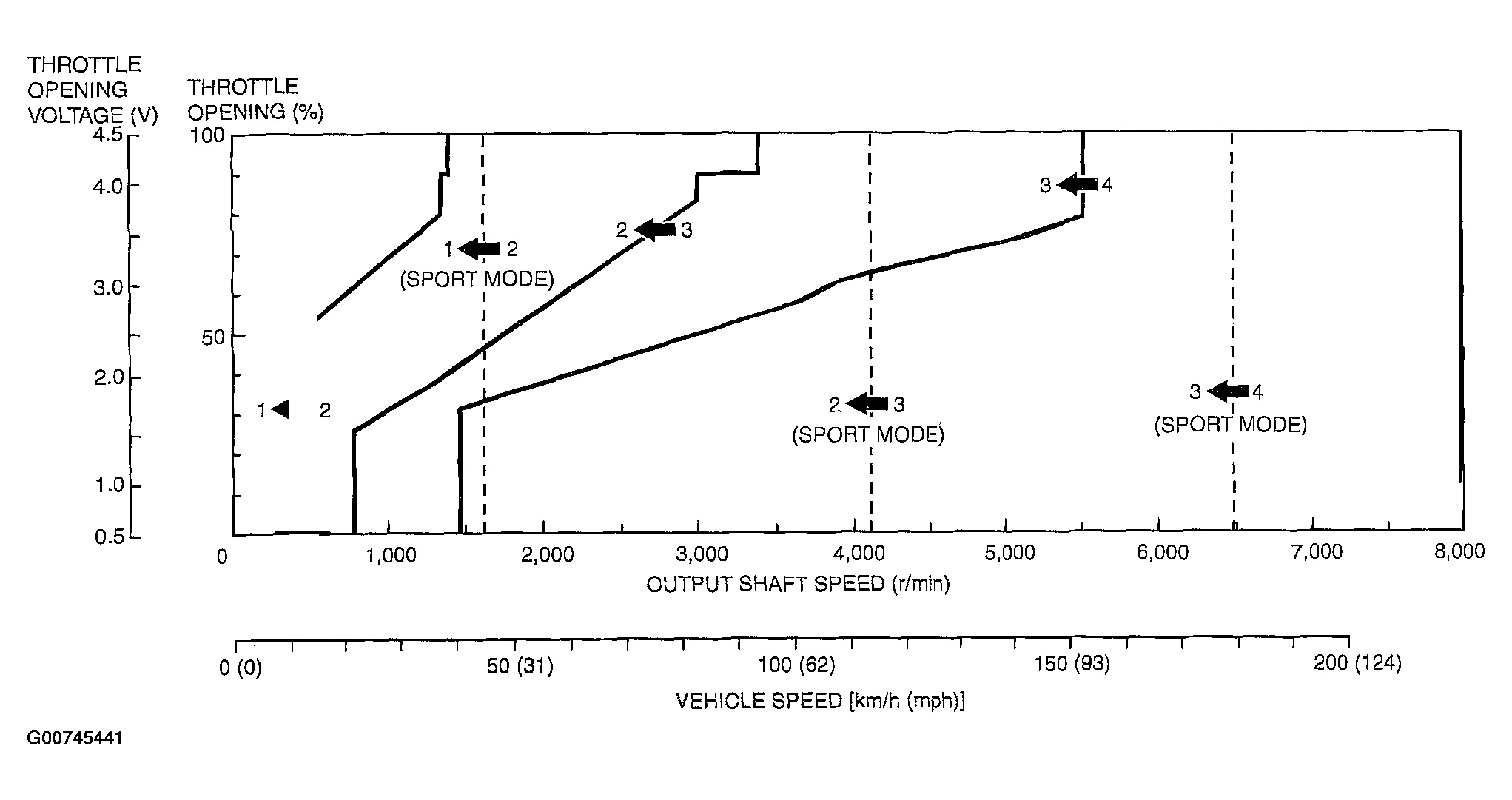

Fig 1: Identifying Downshift Pattern Graph
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
