DTC 26: Stoplight Switch System: Notes

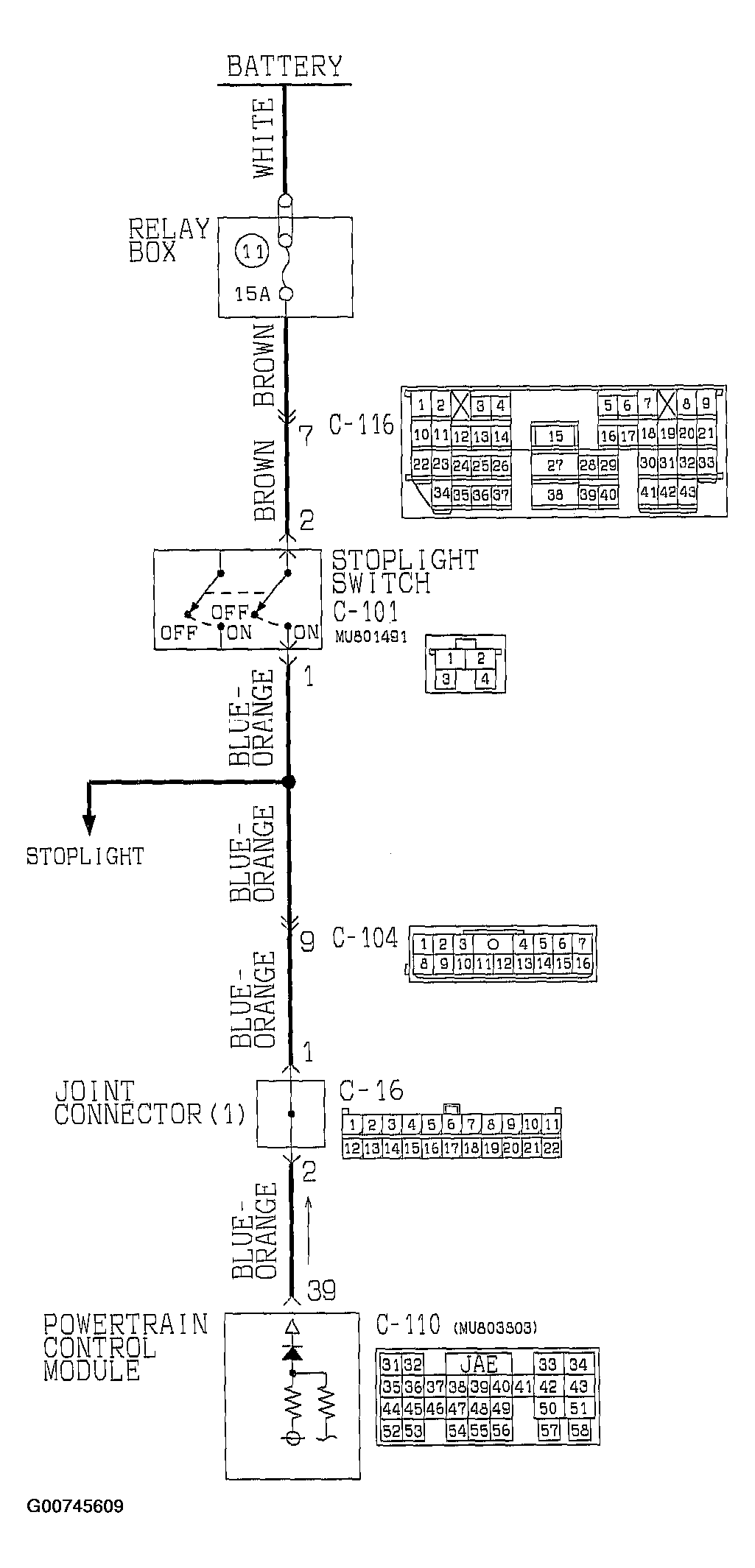

Fig 1: Identifying Stoplight Switch System Circuit Diagram
G00745609Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

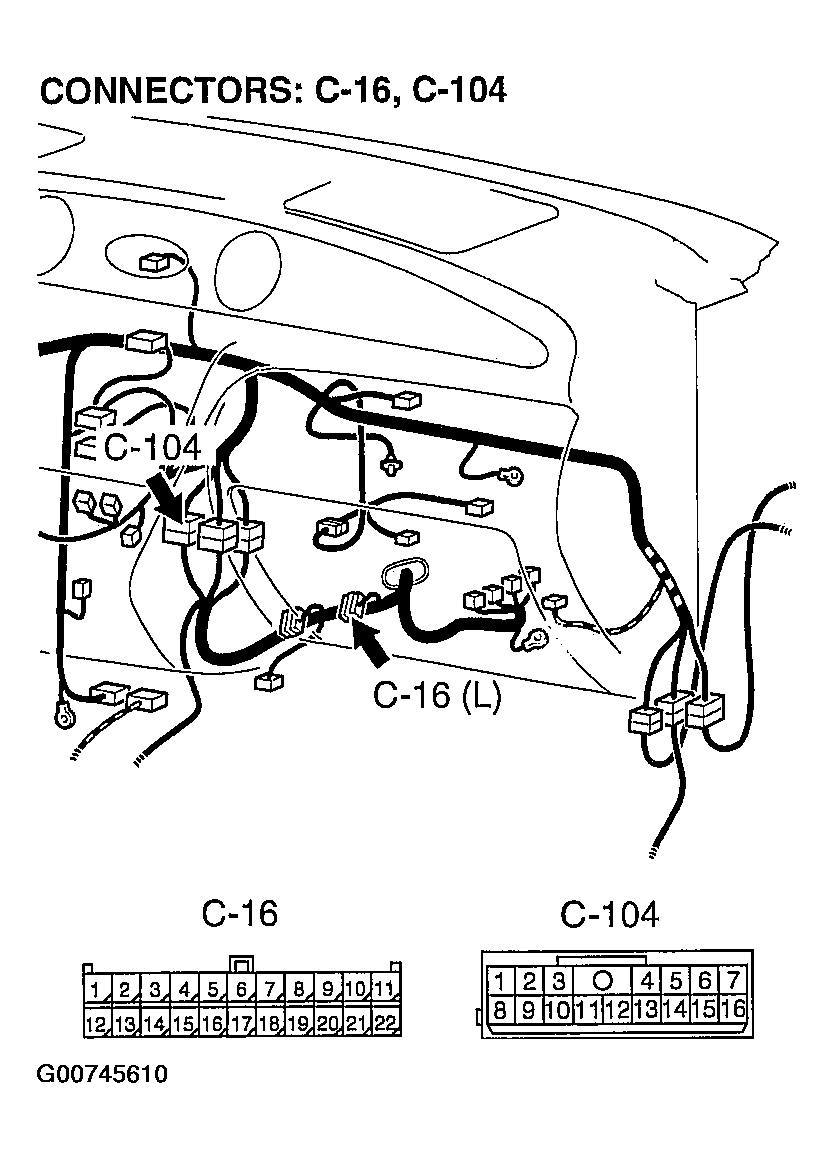

Fig 2: Identifying Connectors: C-16 And C-104
G00745610Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

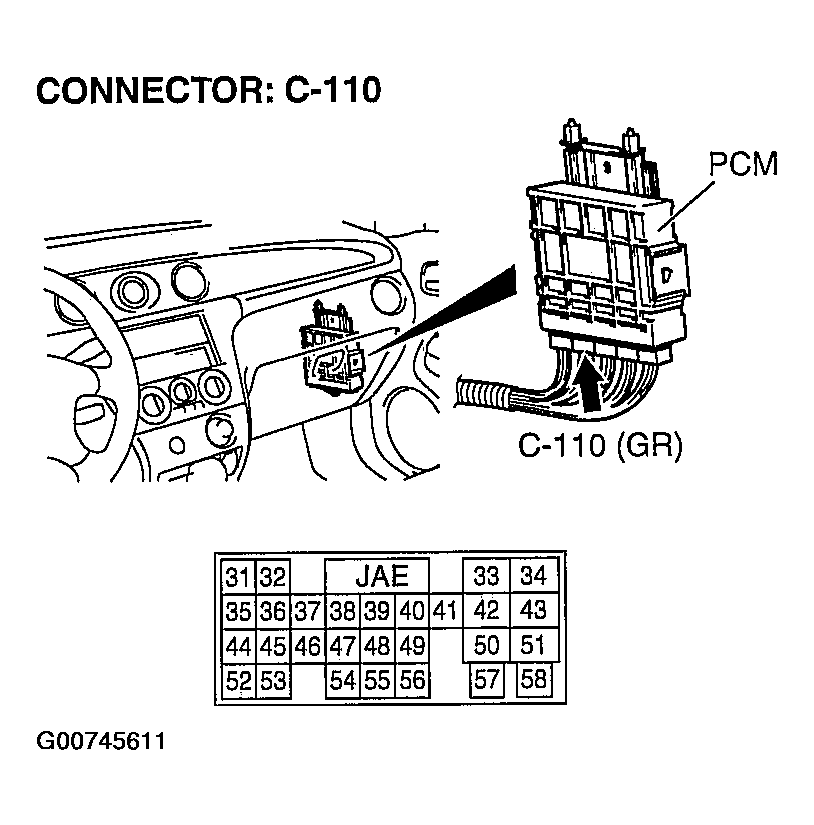

Fig 3: Identifying Connector C-110
G00745611Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

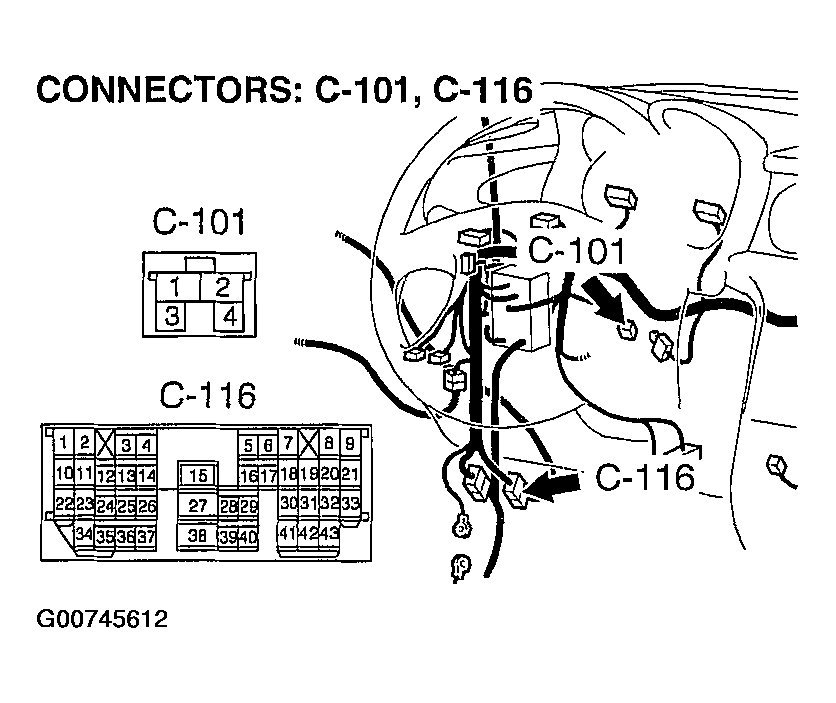

Fig 4: Identifying Connectors C-101 And C-116
G00745612Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
