Pulse Check

PULSE CHECK




1. The input signals (signals other than SWS communication line signals), which are compatible with the SWS monitor by using the scan tool or voltmeter, can be confirmed by the Pulse Check. (Refer to How to Use Troubleshooting/Inspection Service Points).

2. Use the scan tool or voltmeter to check the input signals.

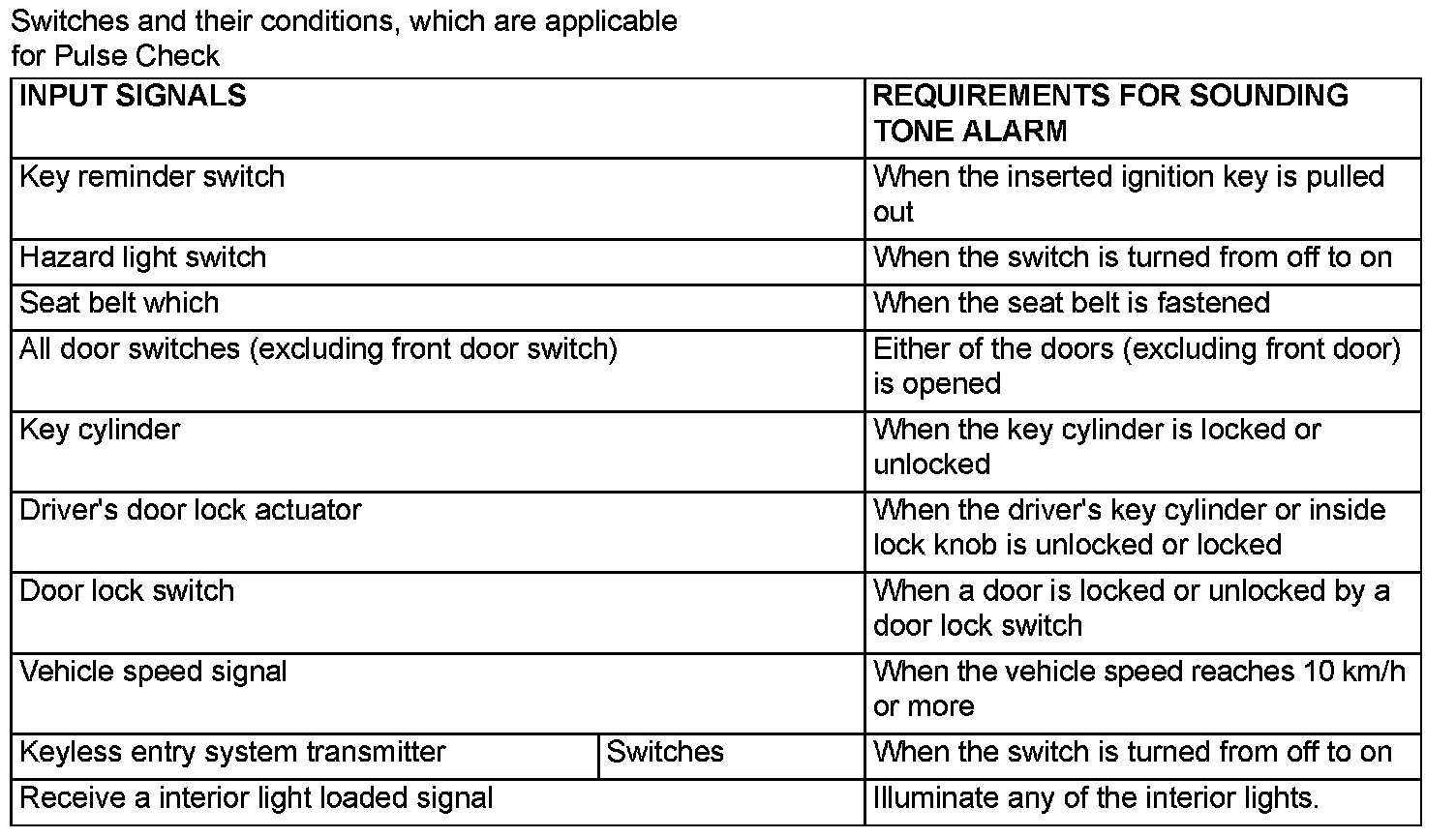

NOTE: If a problem is found the Pulse Check, refer to Input Signal Chart. Input Signal Chart
