Transaxle

TRANSAXLE OVERHAUL W/ RELATED COMPONENTS

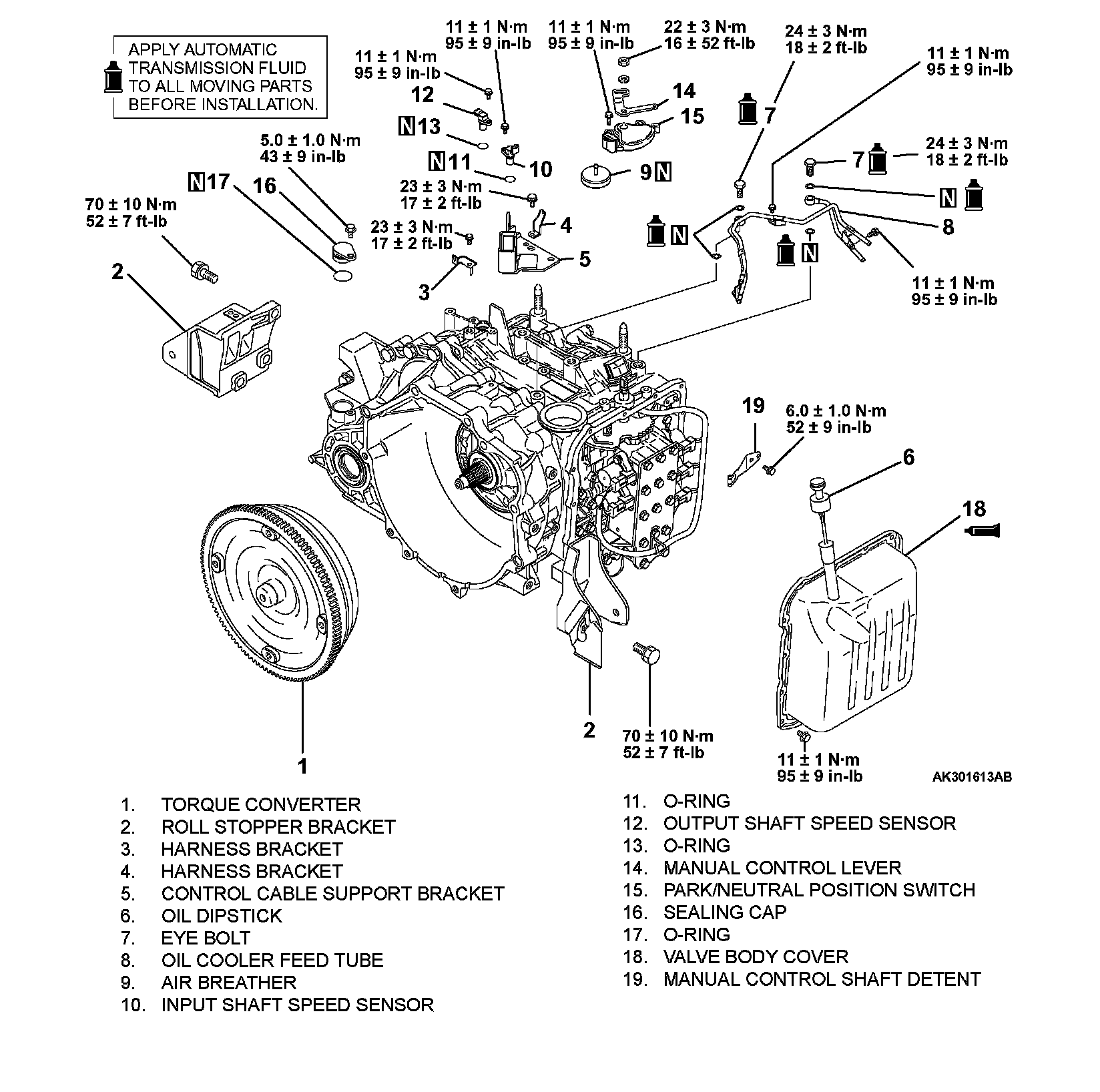

Part 1 Of 5:

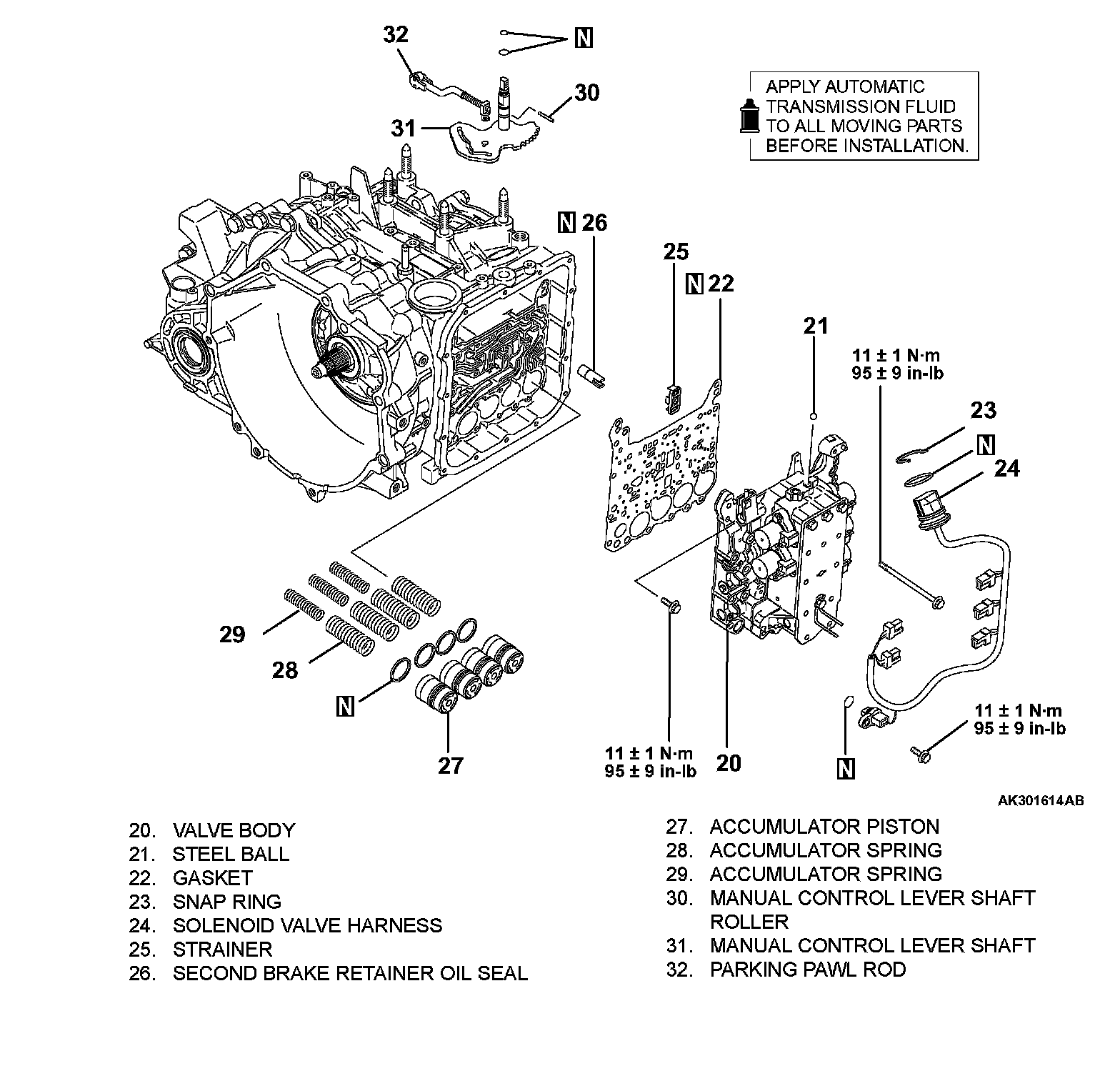

Part 2 Of 5:

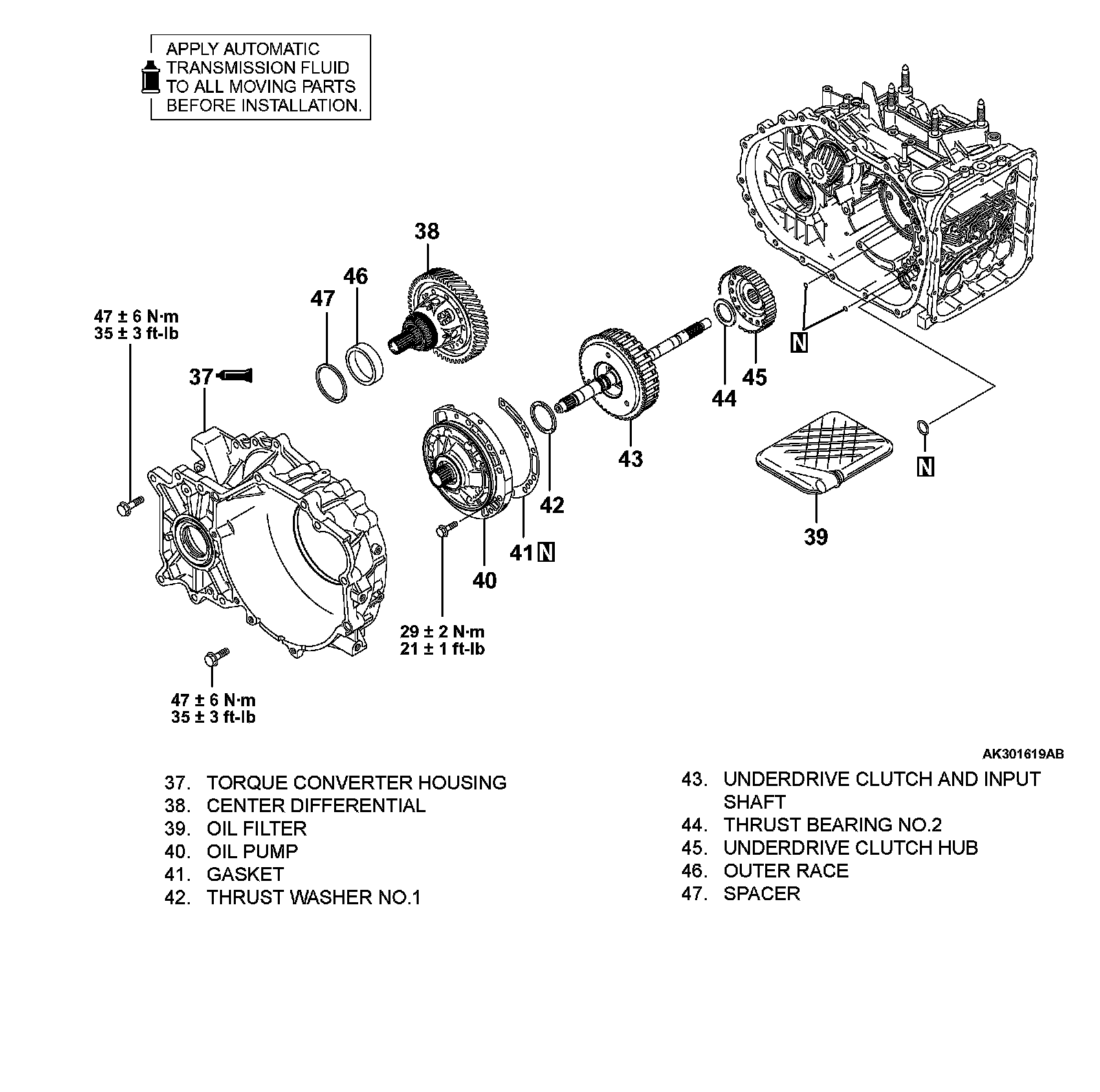

Part 3 Of 5:

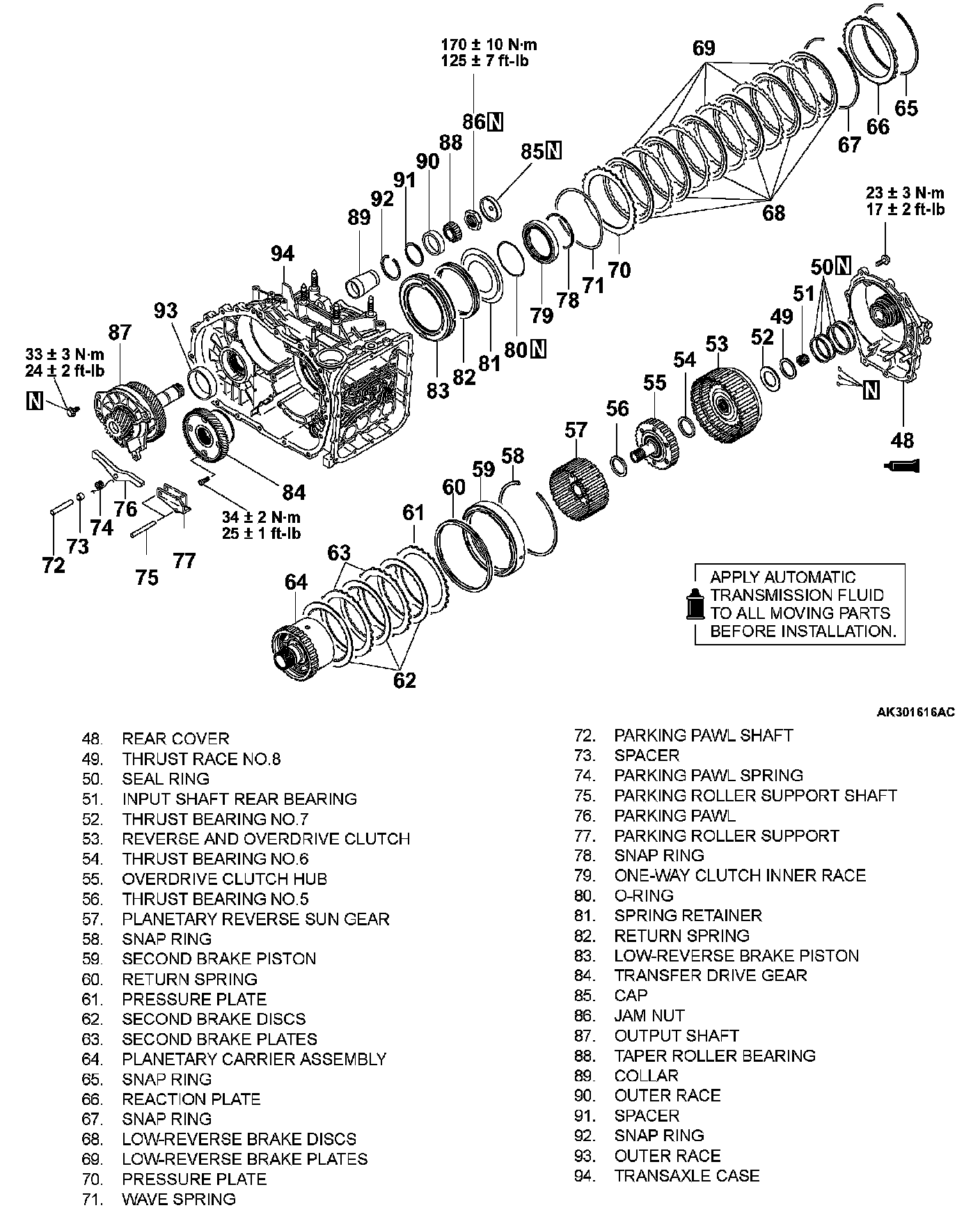

Part 4 Of 5:




Part 5 Of 5:

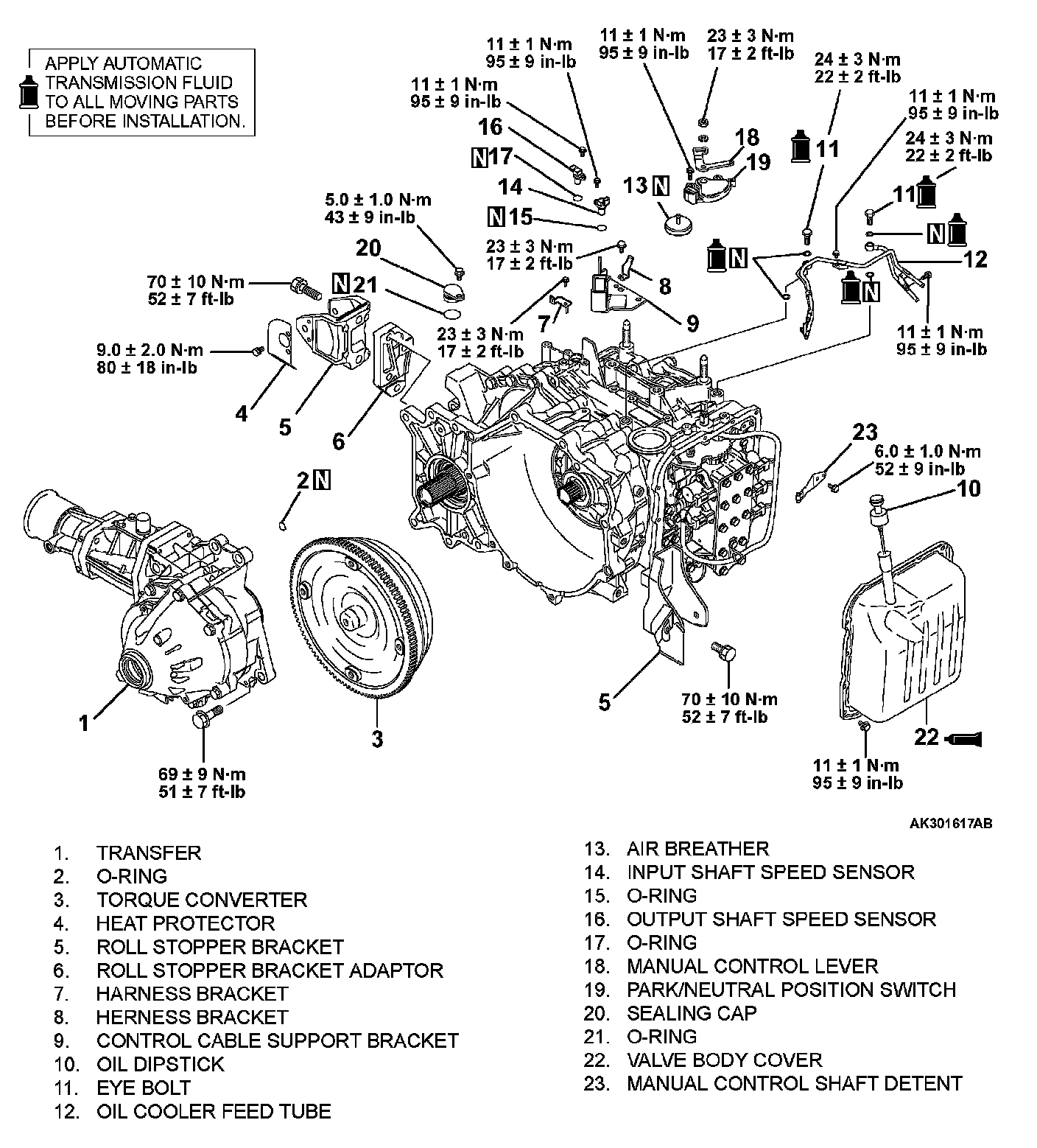

Part 1 Of 4:

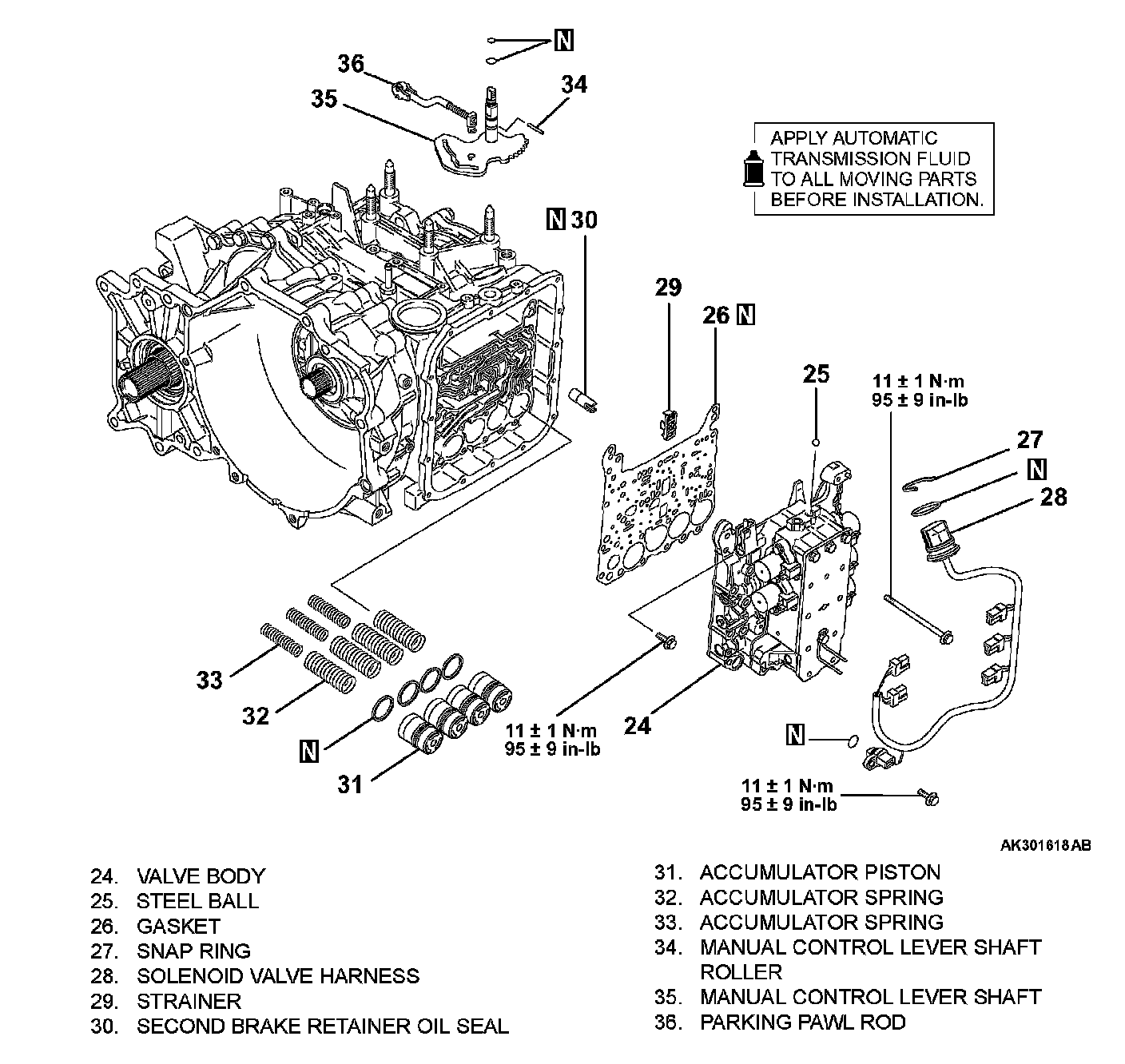

Part 2 Of 4:

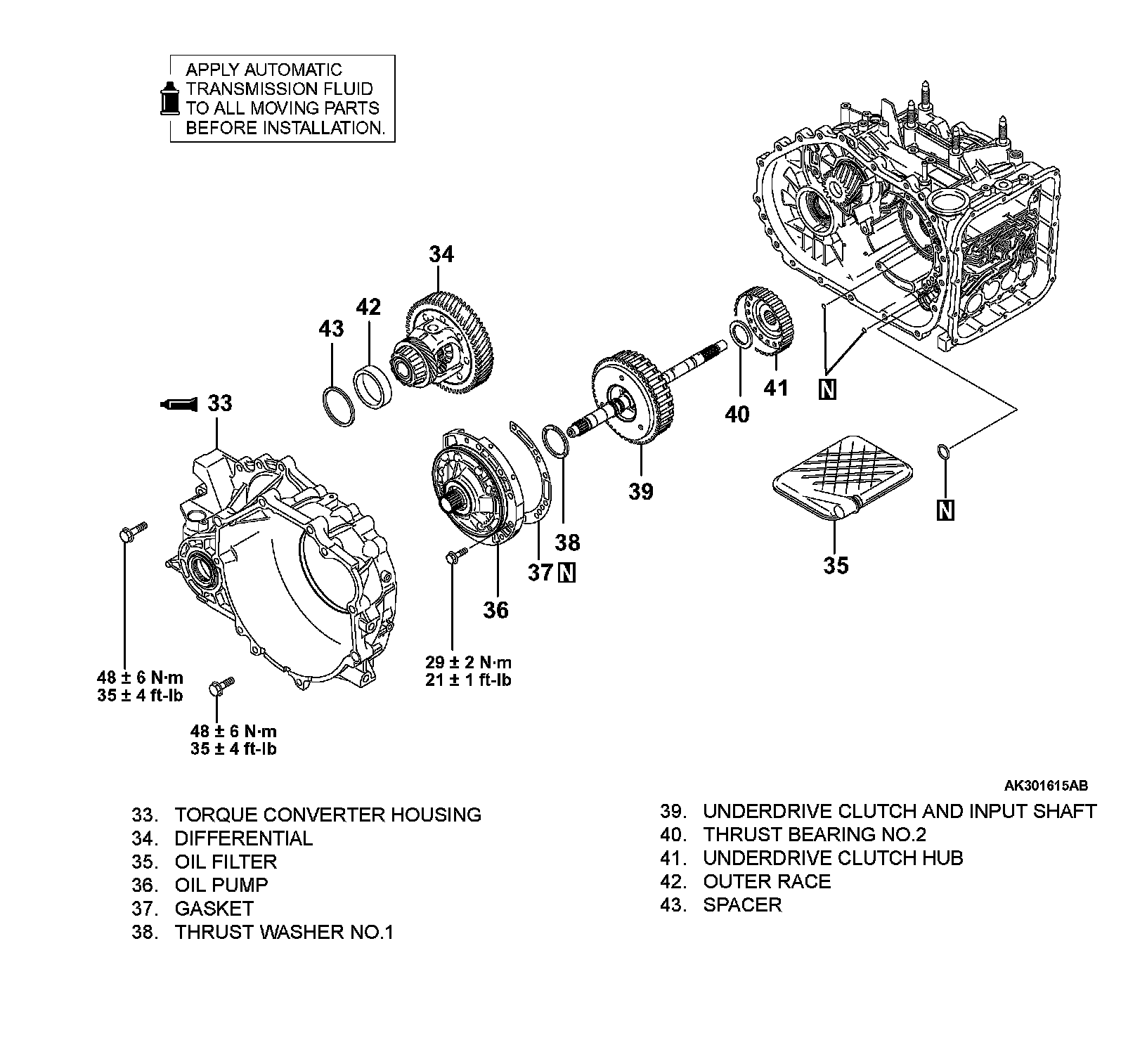

Part 3 Of 4:

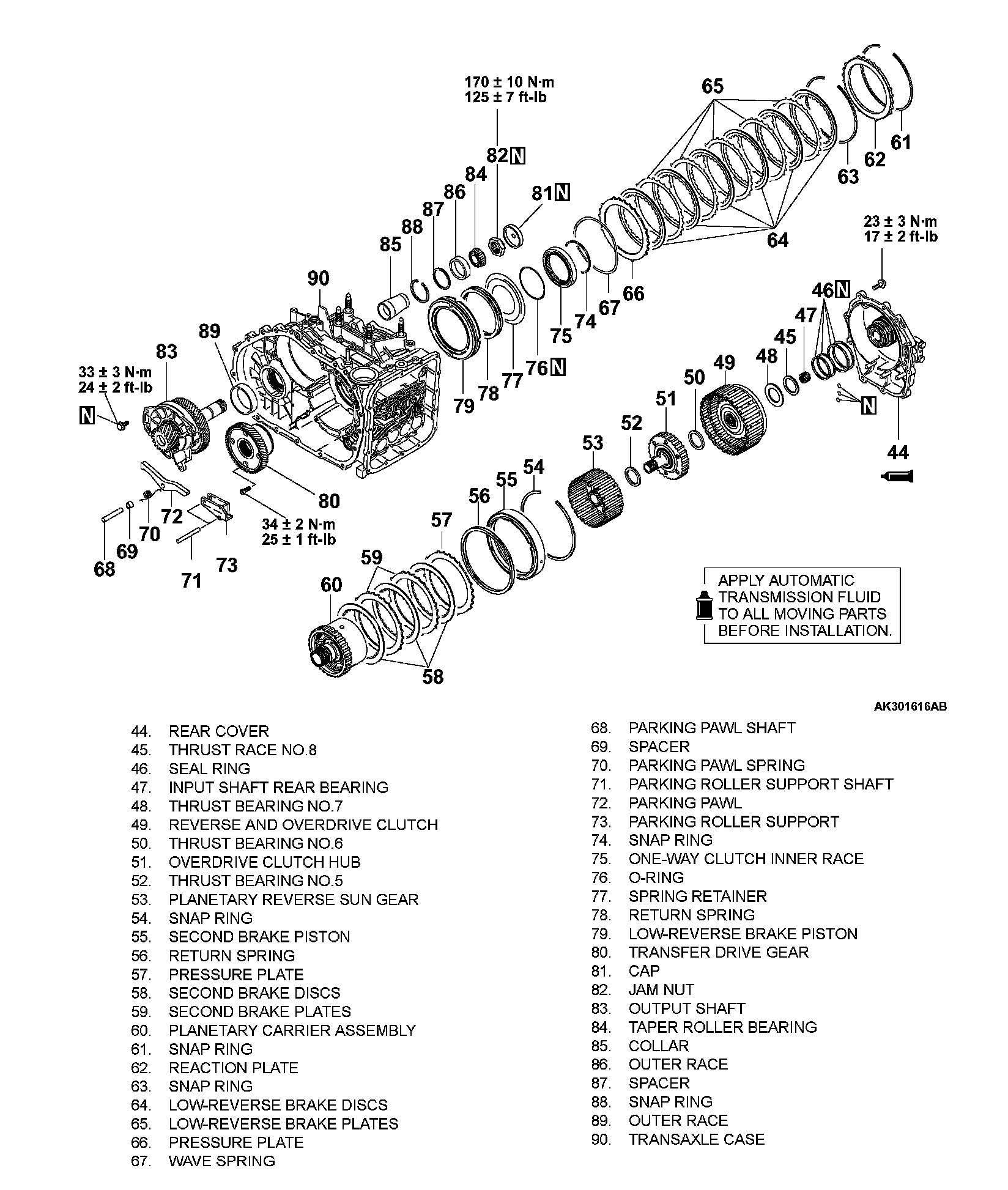

Part 4 Of 4:
