Removal And Installation

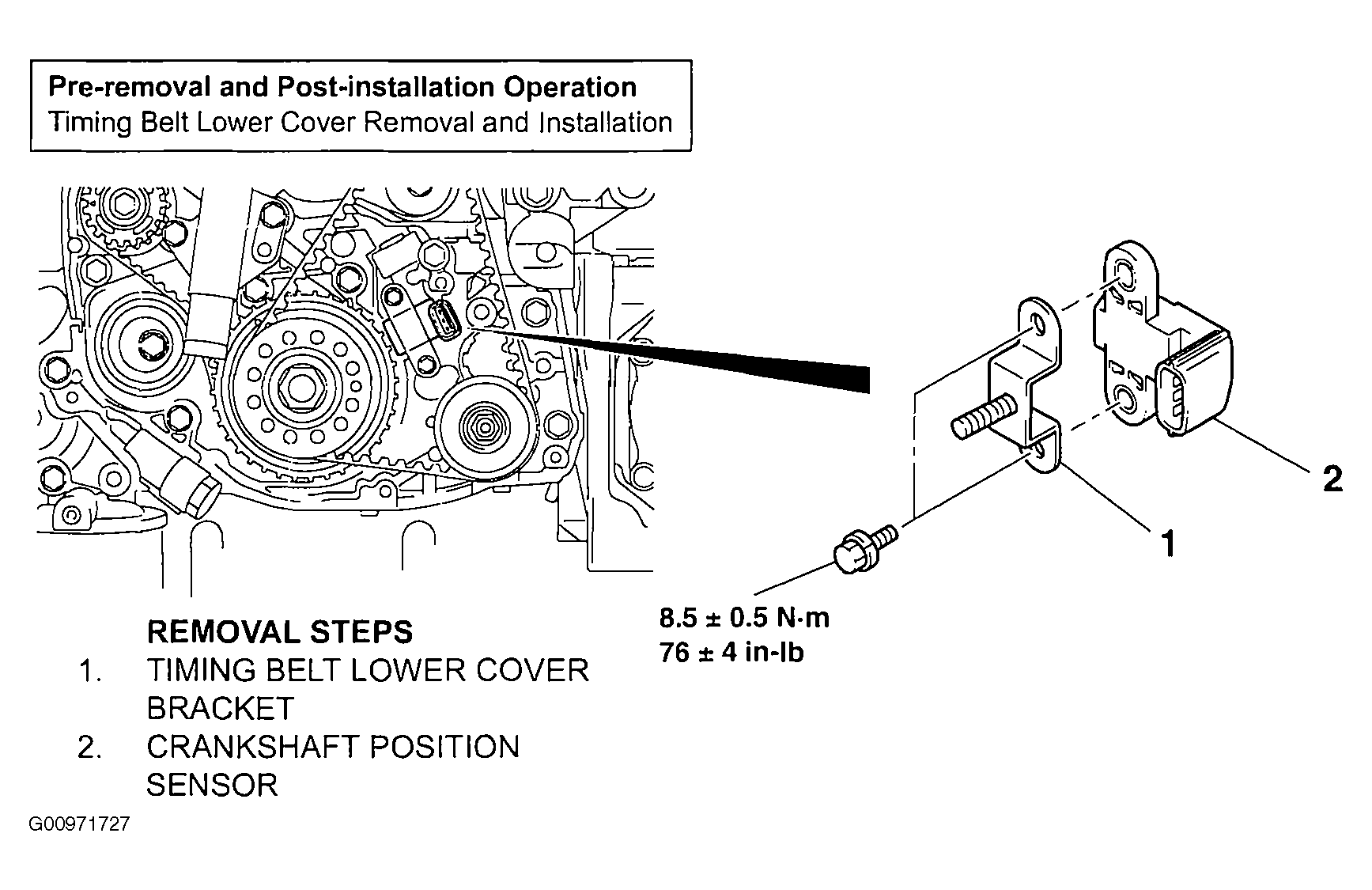

Fig 1: Removing And Installing Crankshaft Position Sensor
G00971727Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
