Exhaust Gas Recirculation: Service and Repair




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT





>>A<< EGR VALVE GASKET INSTALLATION

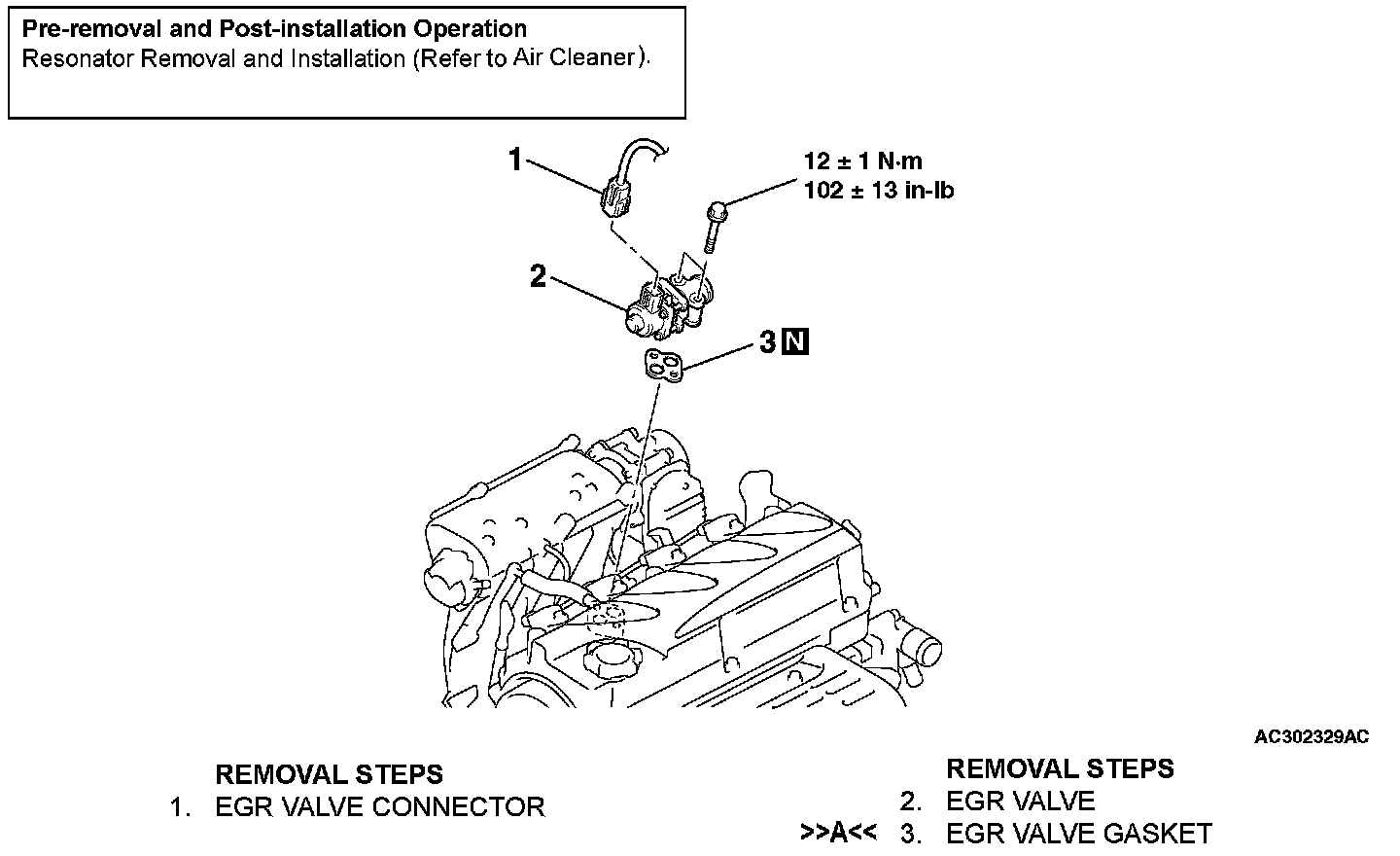

Install the EGR valve gasket as shown in the illustration.
