Starter Relay Check

For starter relay location see Fig 1 .

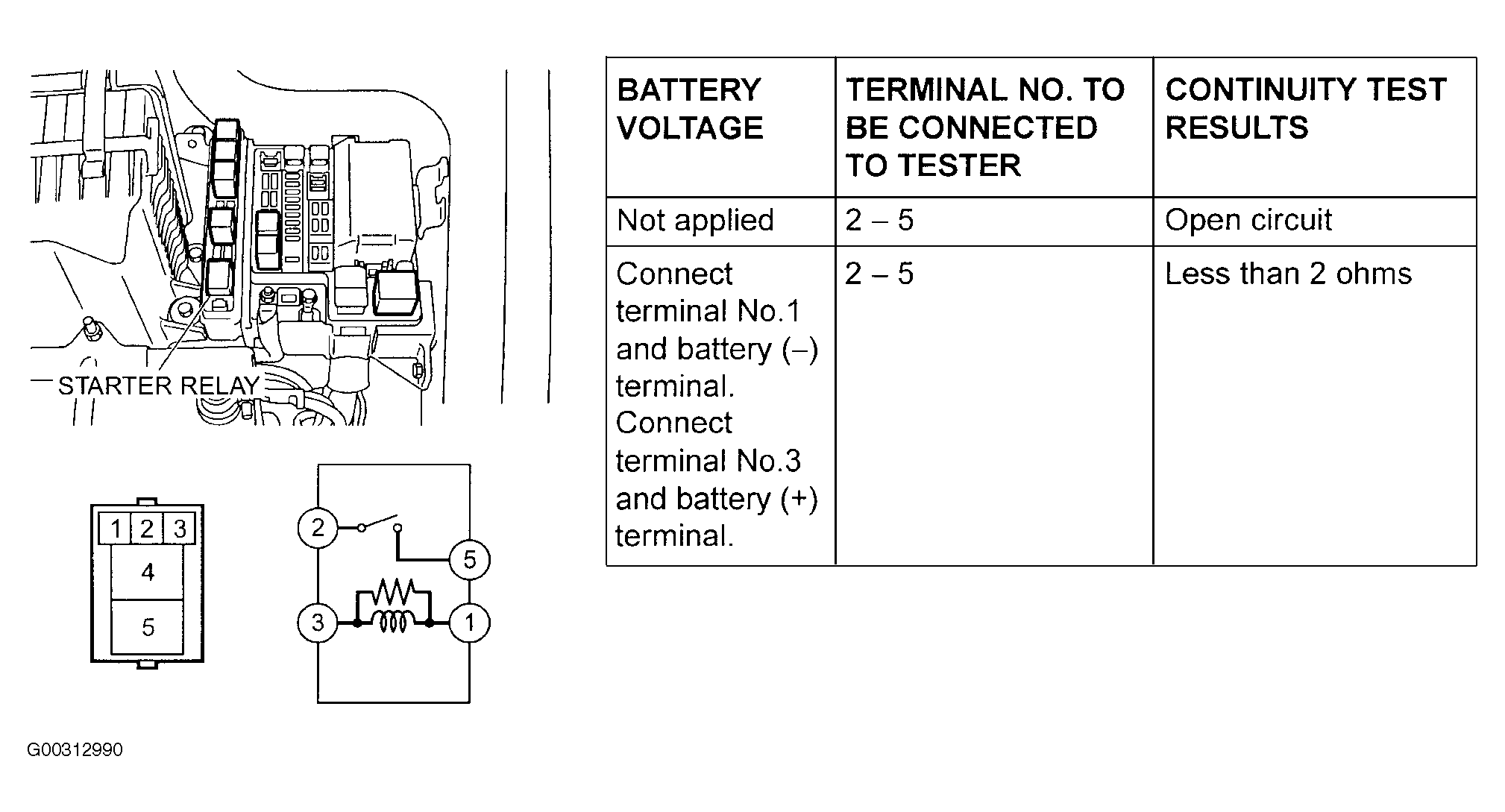

Fig 1: Testing Starter Relay
G00312990Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
