Inspection Procedure 2: Speedometer Does Not Work. < M/T >: Notes

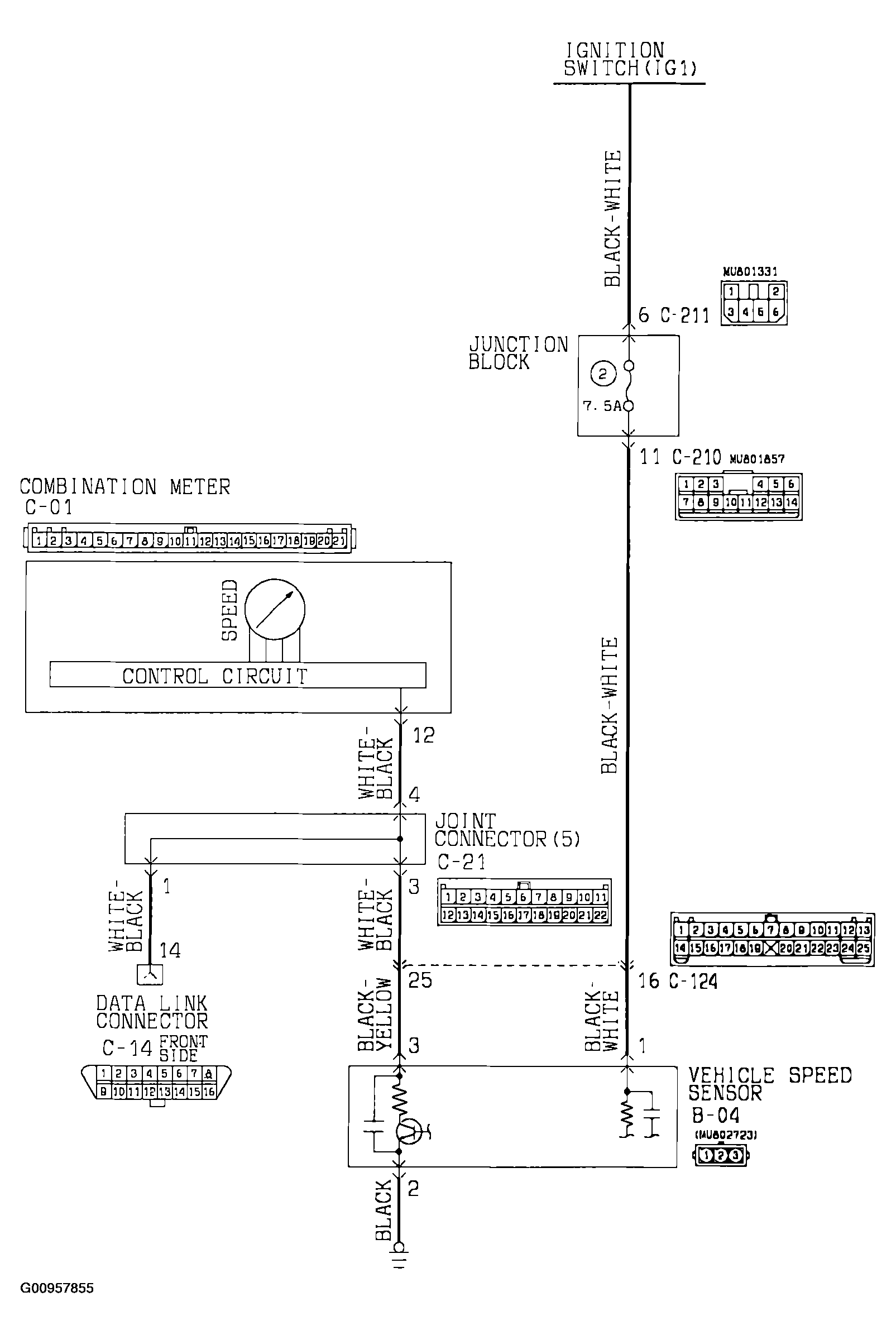

Fig 1: View Of Speedometer Circuit - M/T
G00957855Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

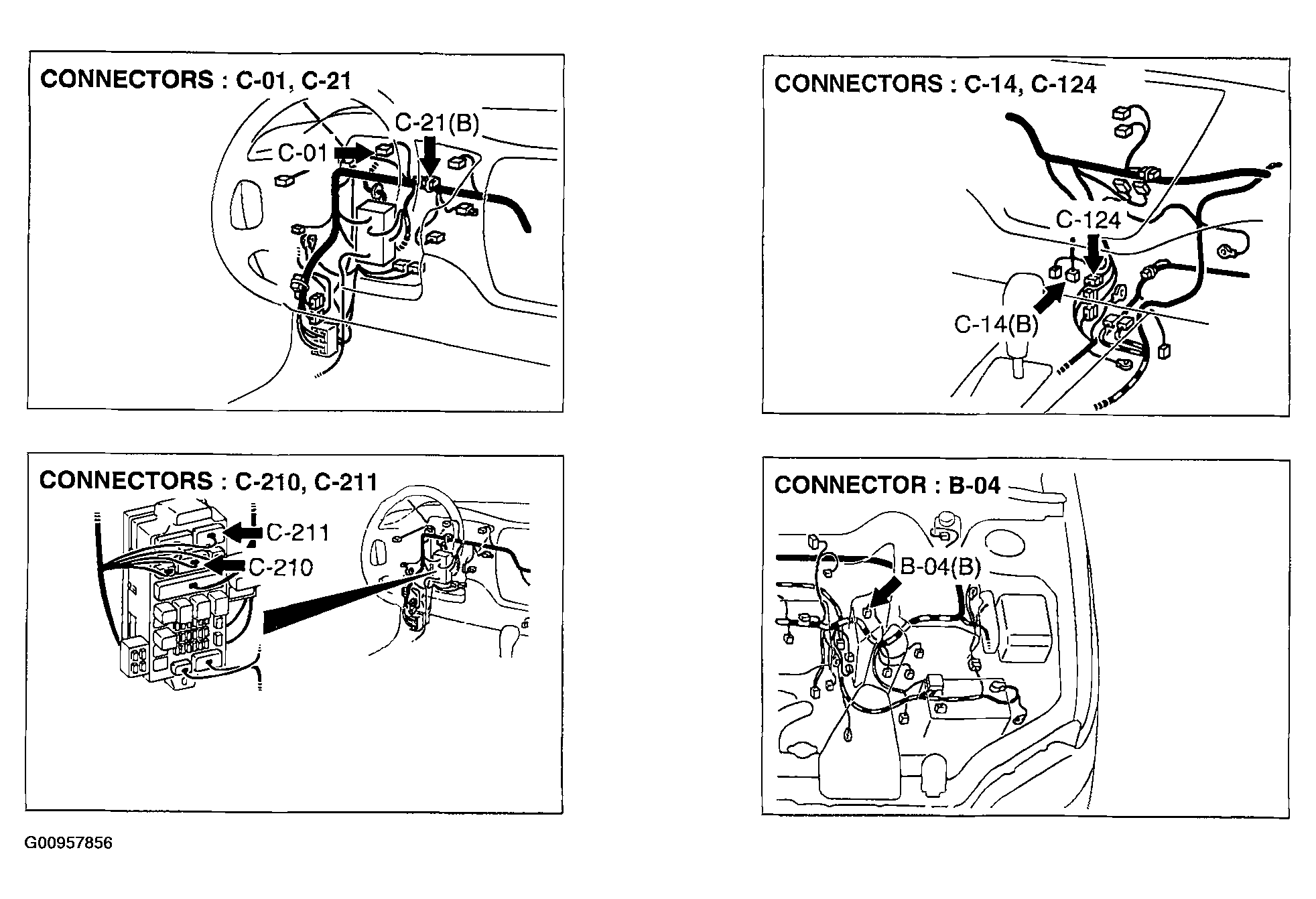

Fig 2: Identifying Connectors
G00957856Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
