Exhaust Gas Recirculation: Service and Repair







REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




>>A<< EGR VALVE GASKET INSTALLATION

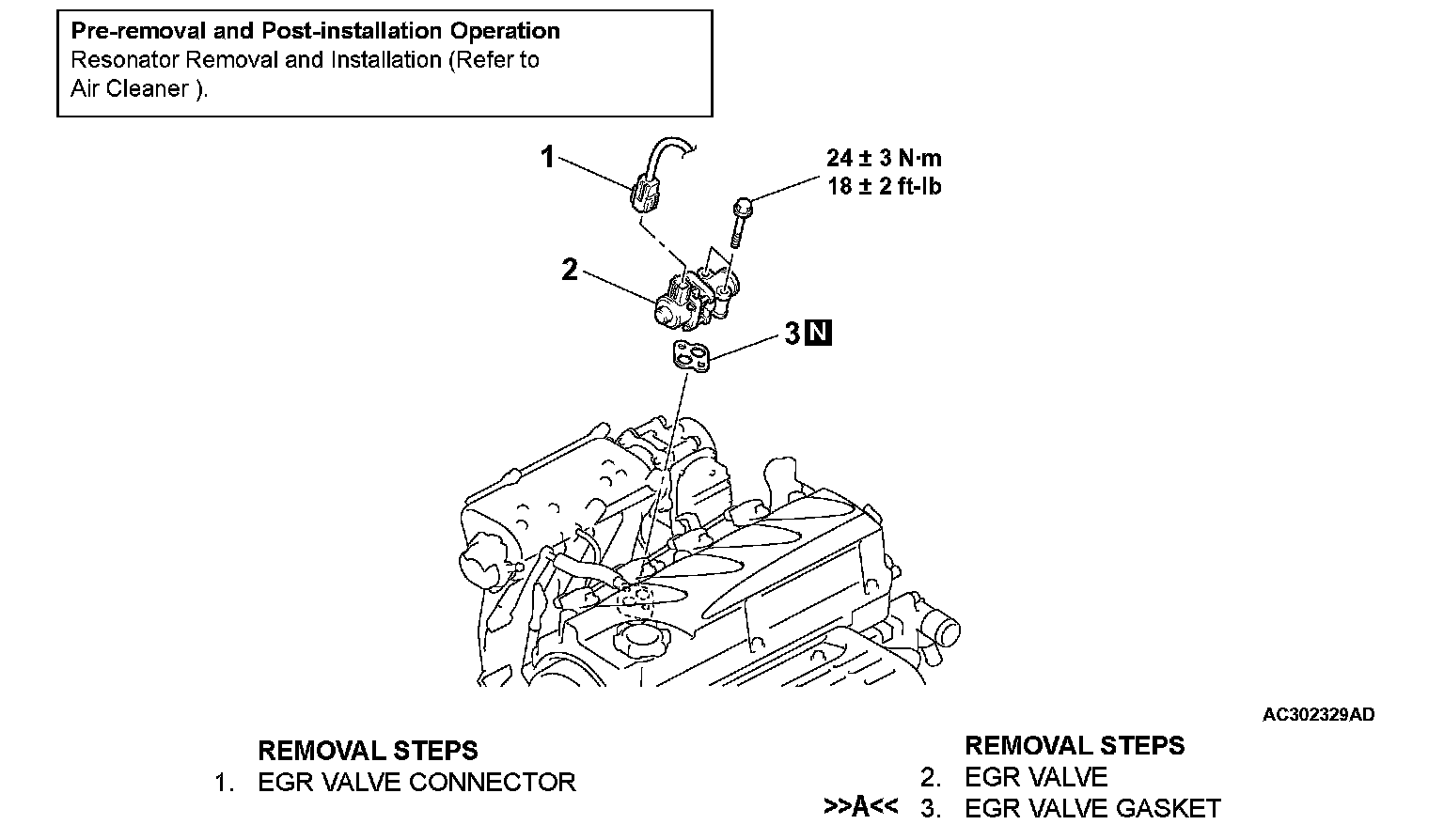

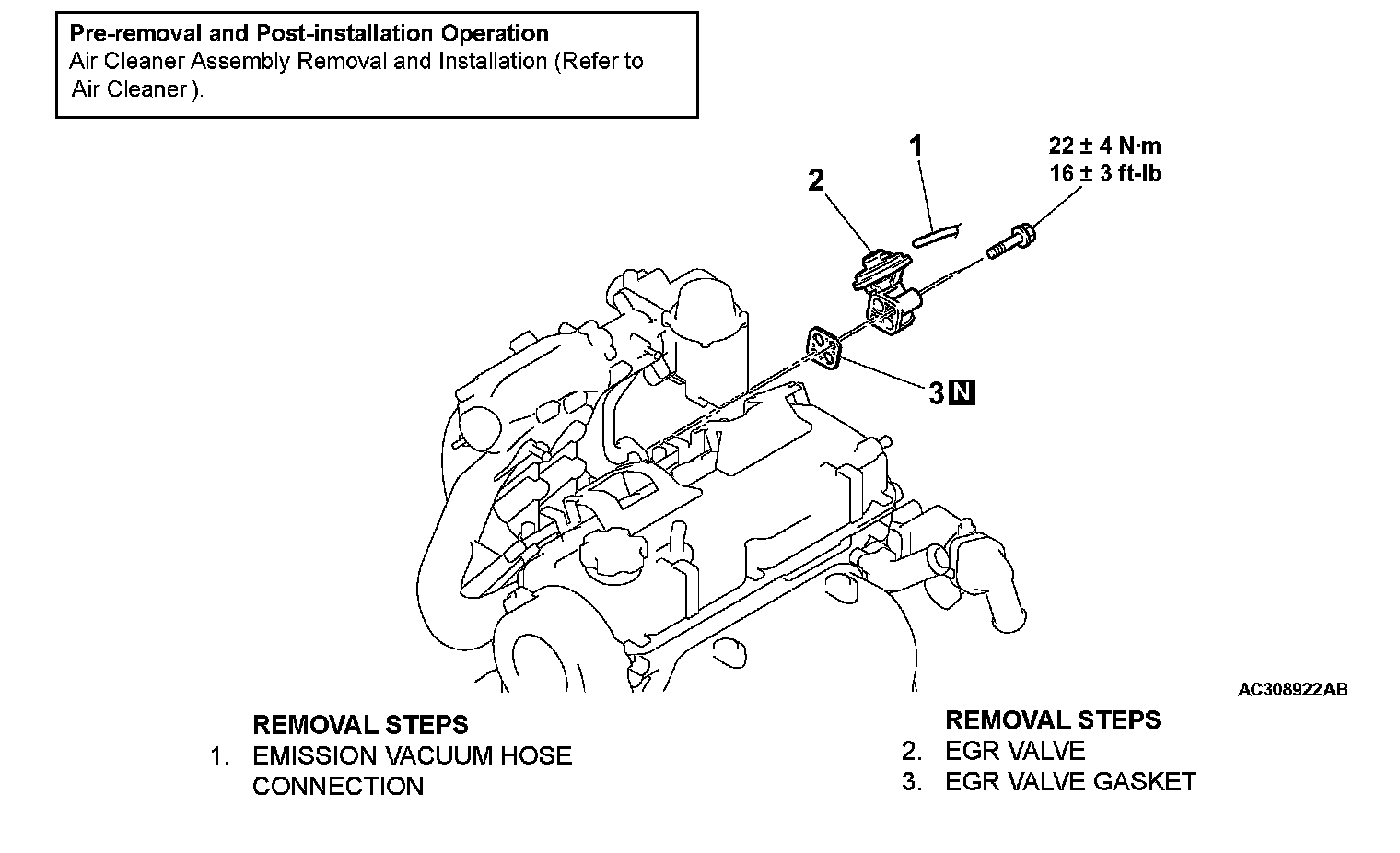

Install the EGR valve gasket as shown in the illustration.
