Component View

Locations:

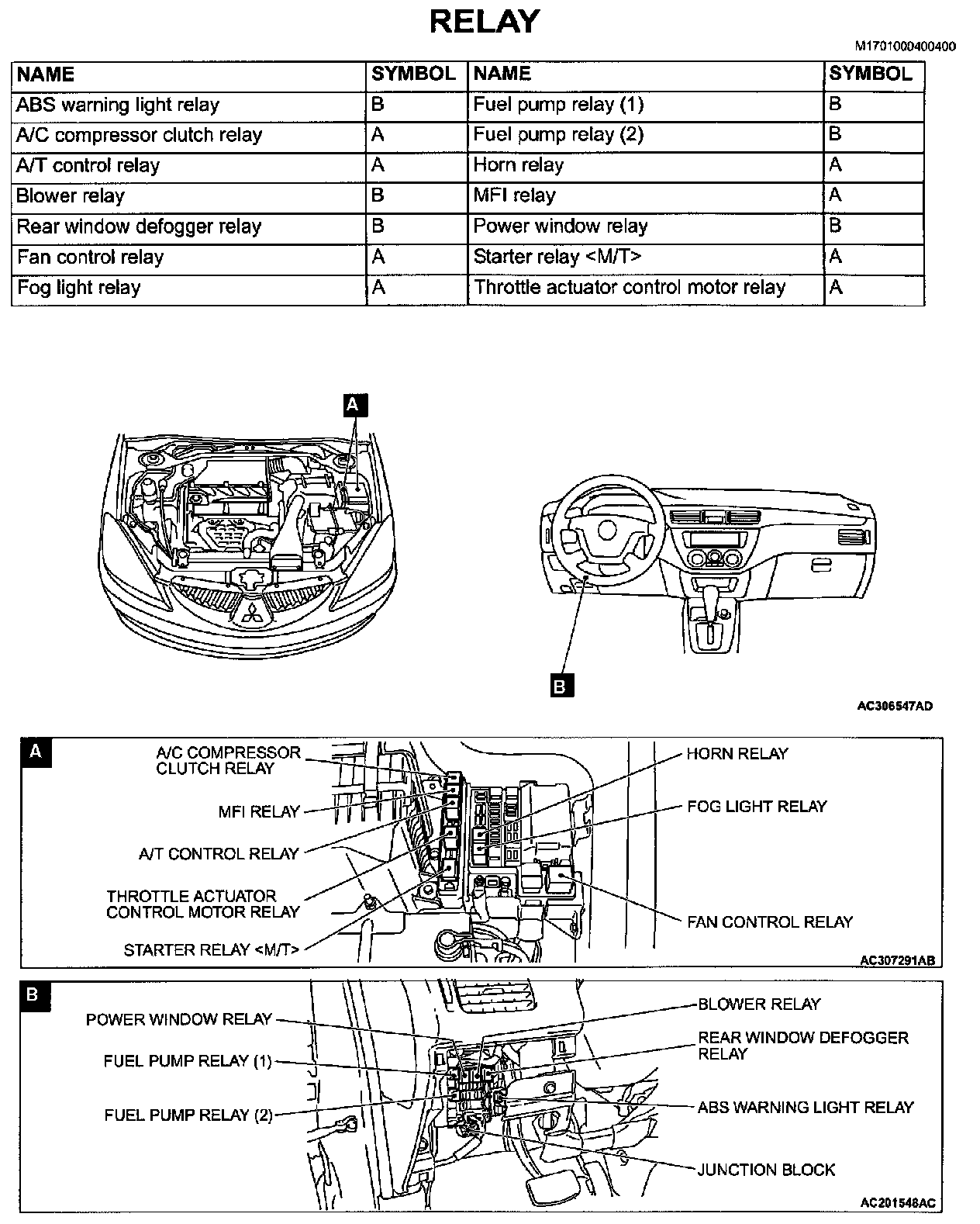

Relay Locations:

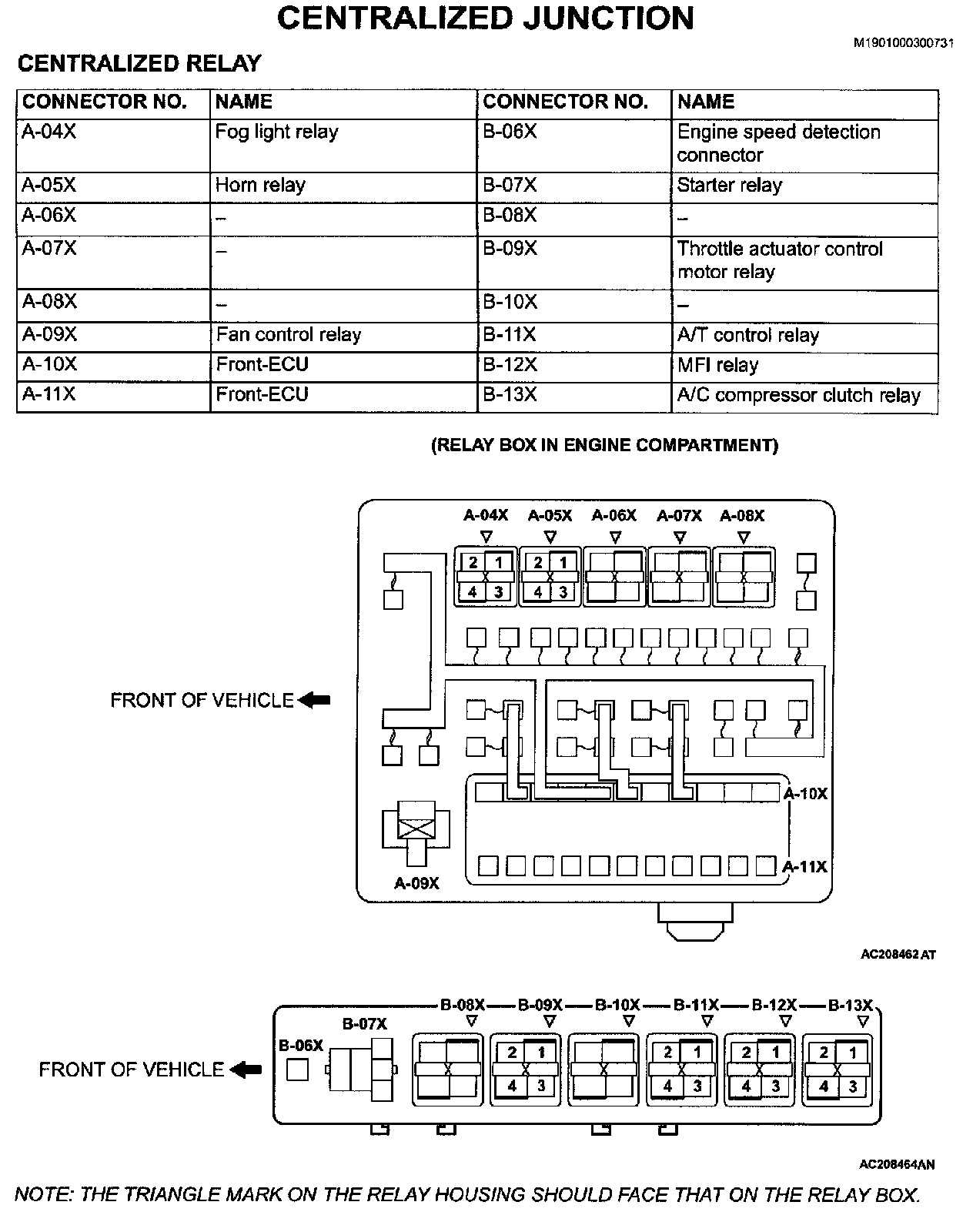

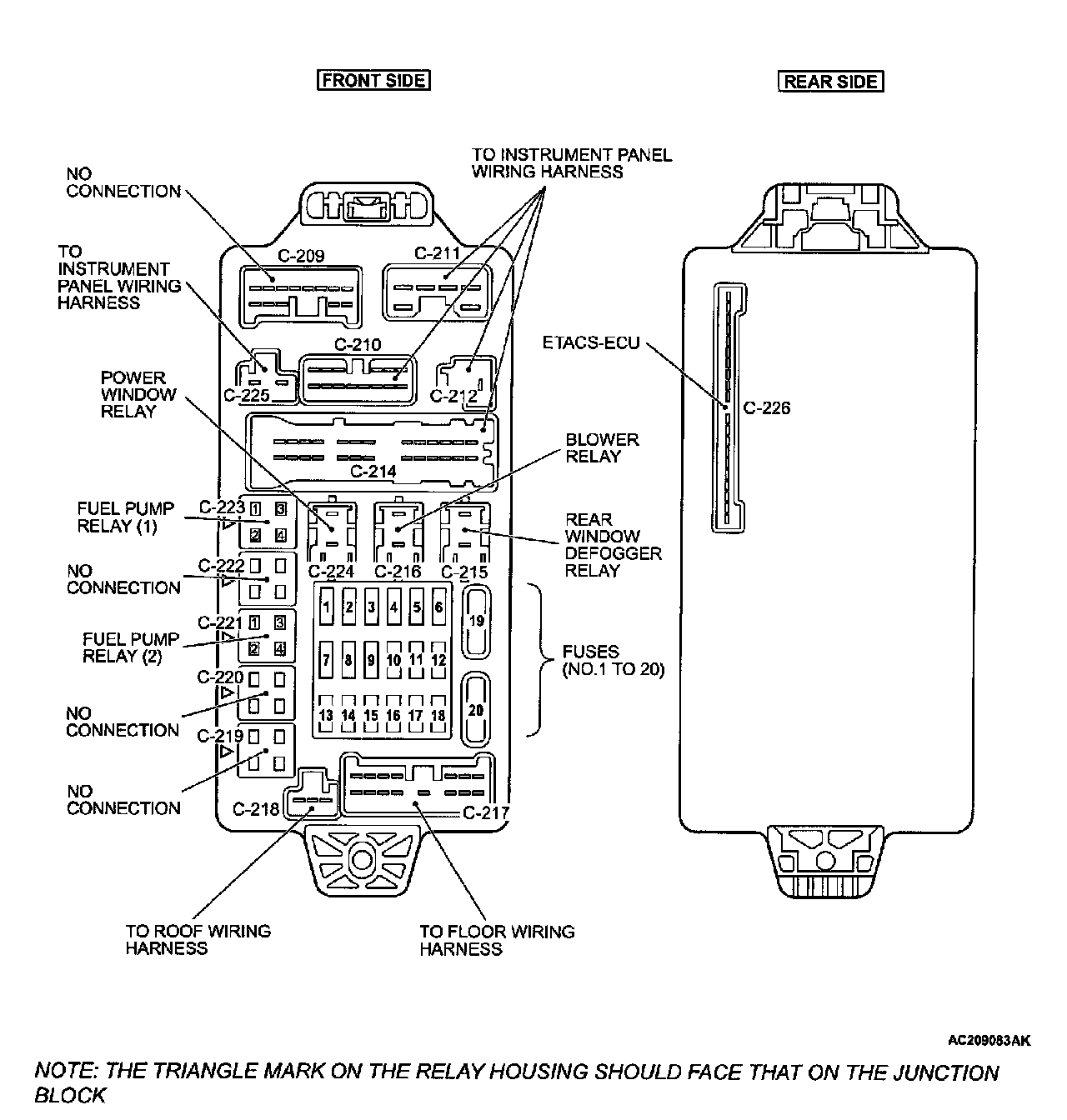

Centralized Relay:

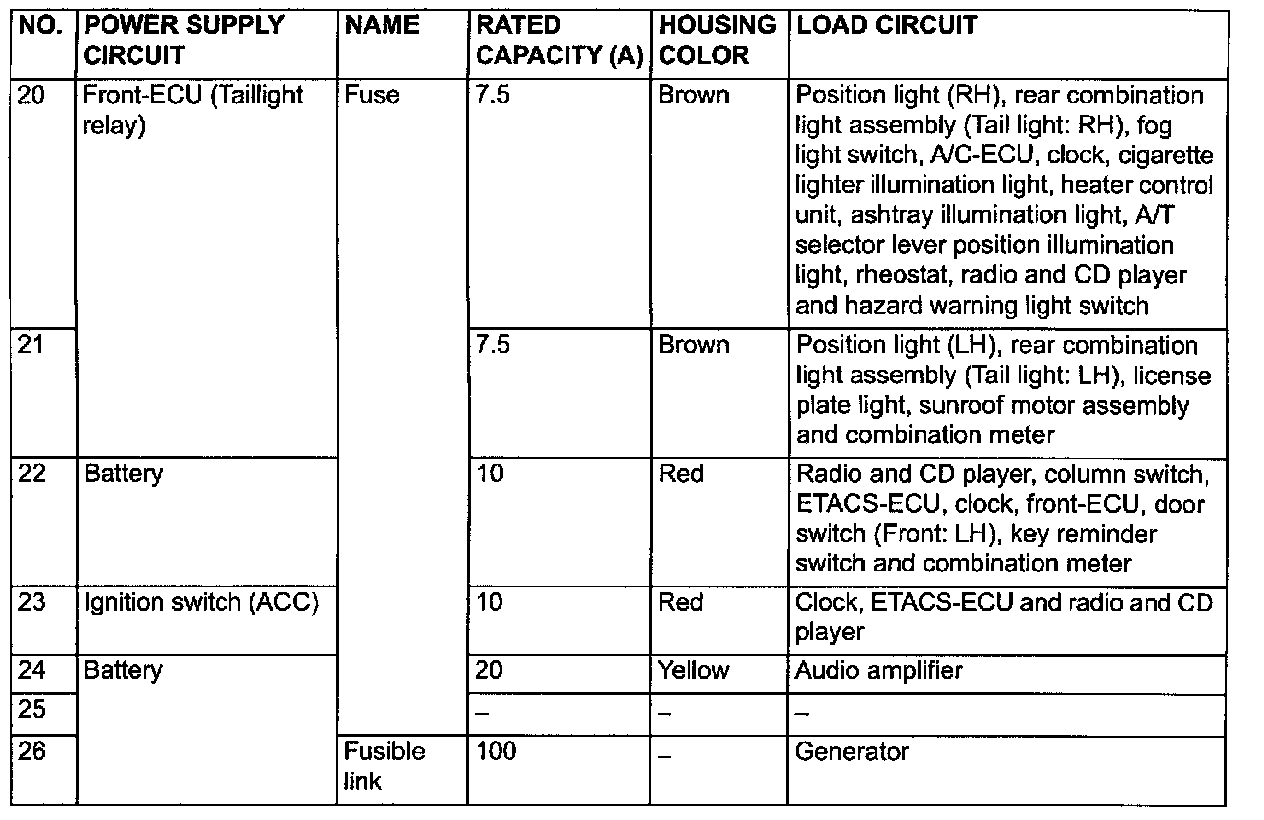

Fuses 1-26 (1 Of 4):

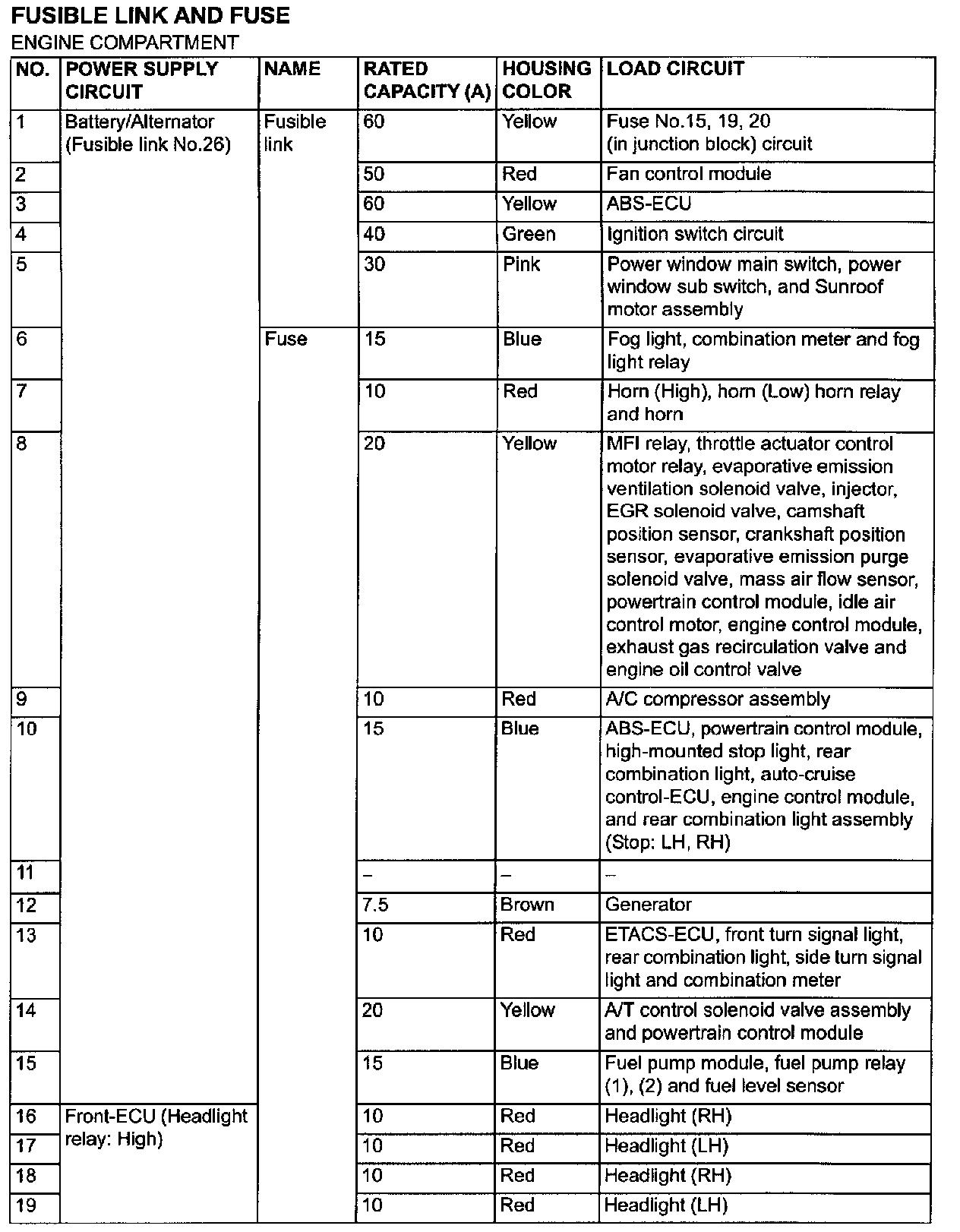

Fuses 1-26 (2 Of 4):

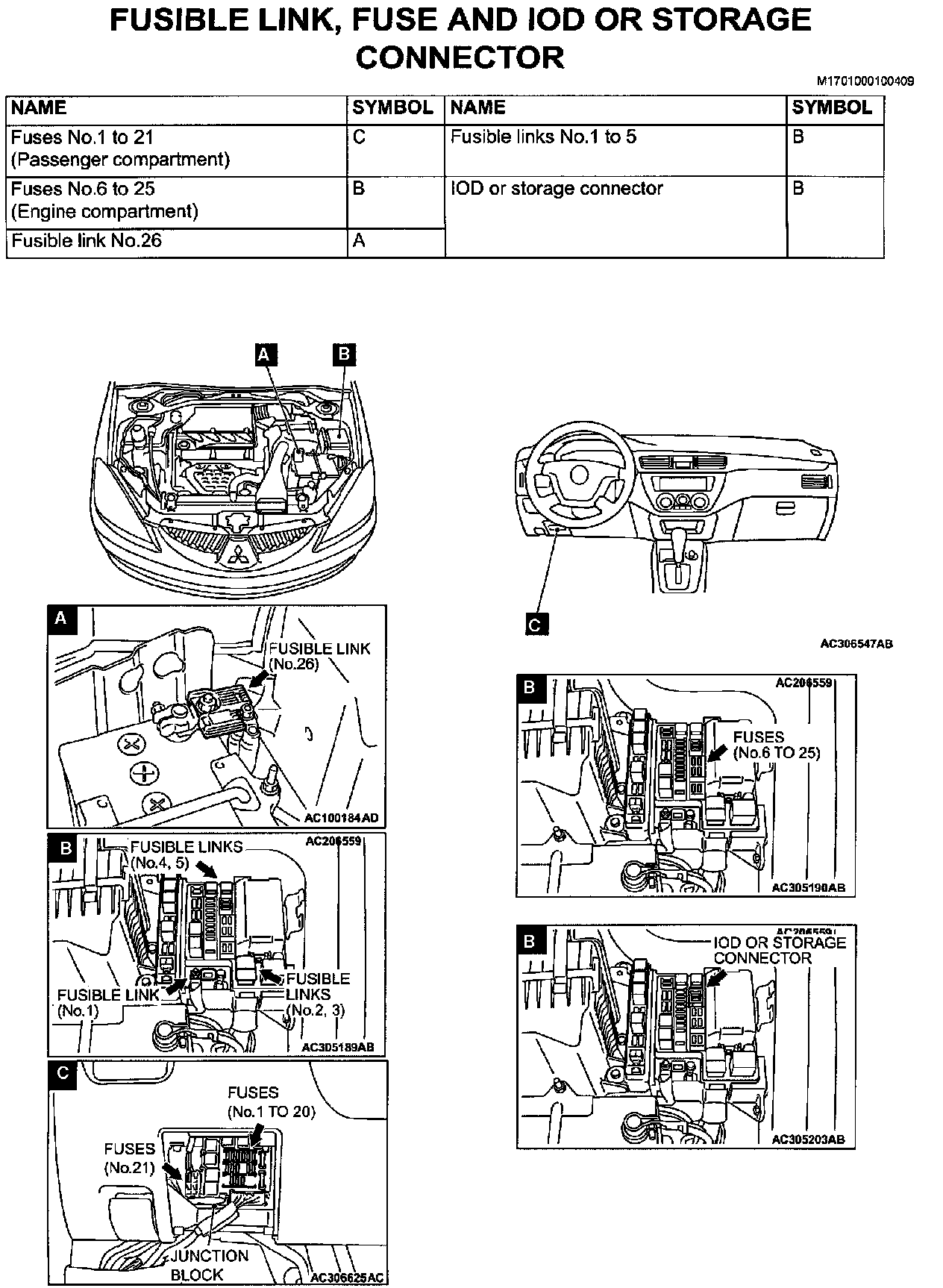

Fuses 1-26 (3 Of 4):

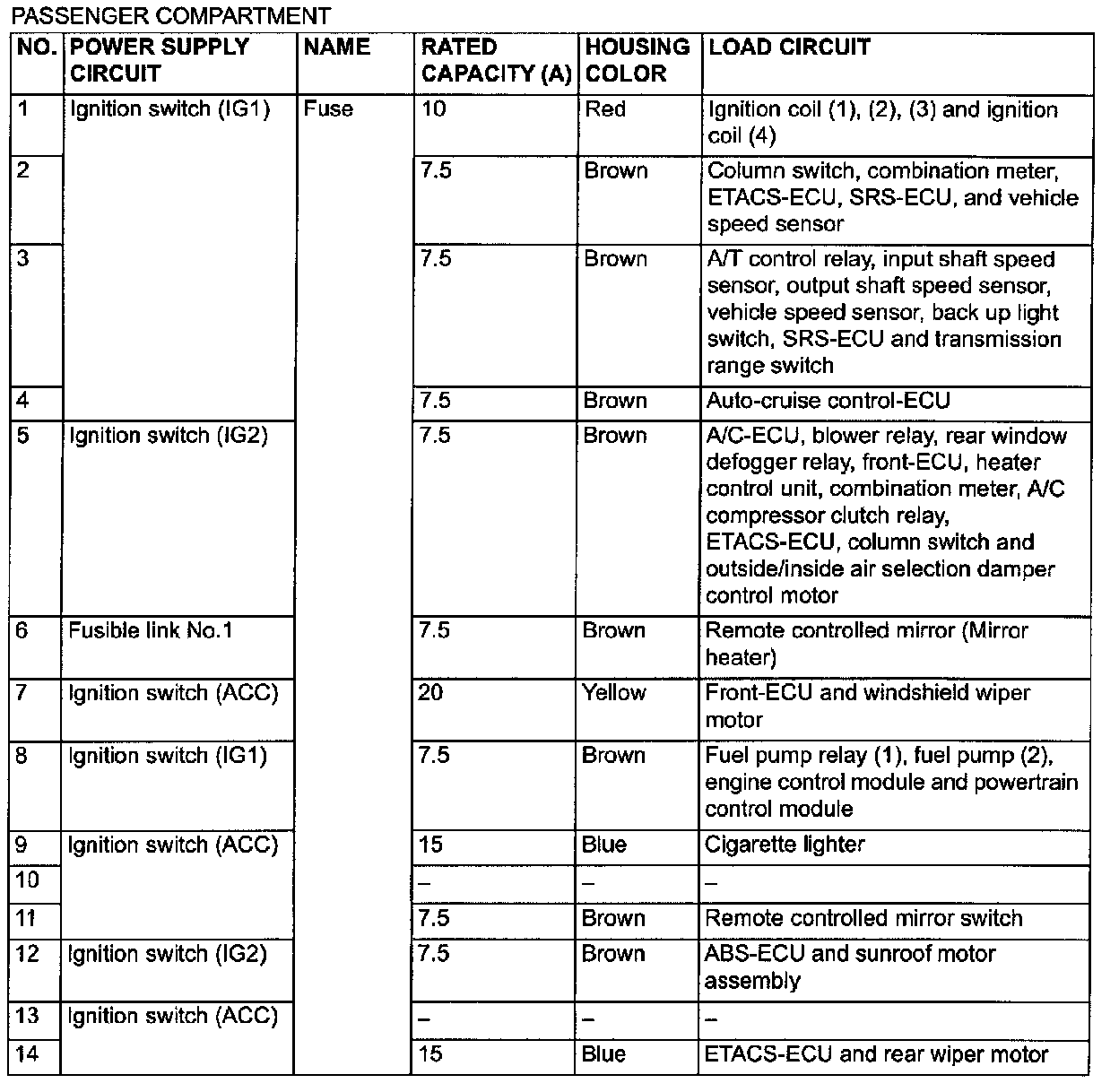

Fuses 1-26 (4 Of 4):







Fuses 1-24 (1 Of 3):




Fuses 1-24 (2 Of 3):




Fuses 1-24 (3 Of 3):
