Transmission Range Switch Check

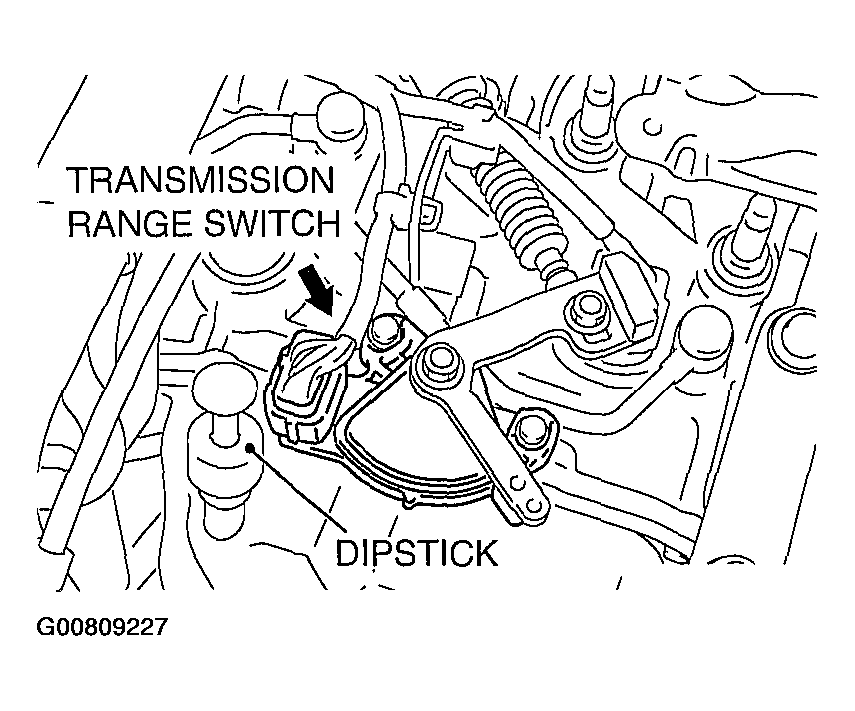

Fig 1: Identifying Transmission Range Switch
G00809227Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Transmission Range Switch Terminals
G00809229Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

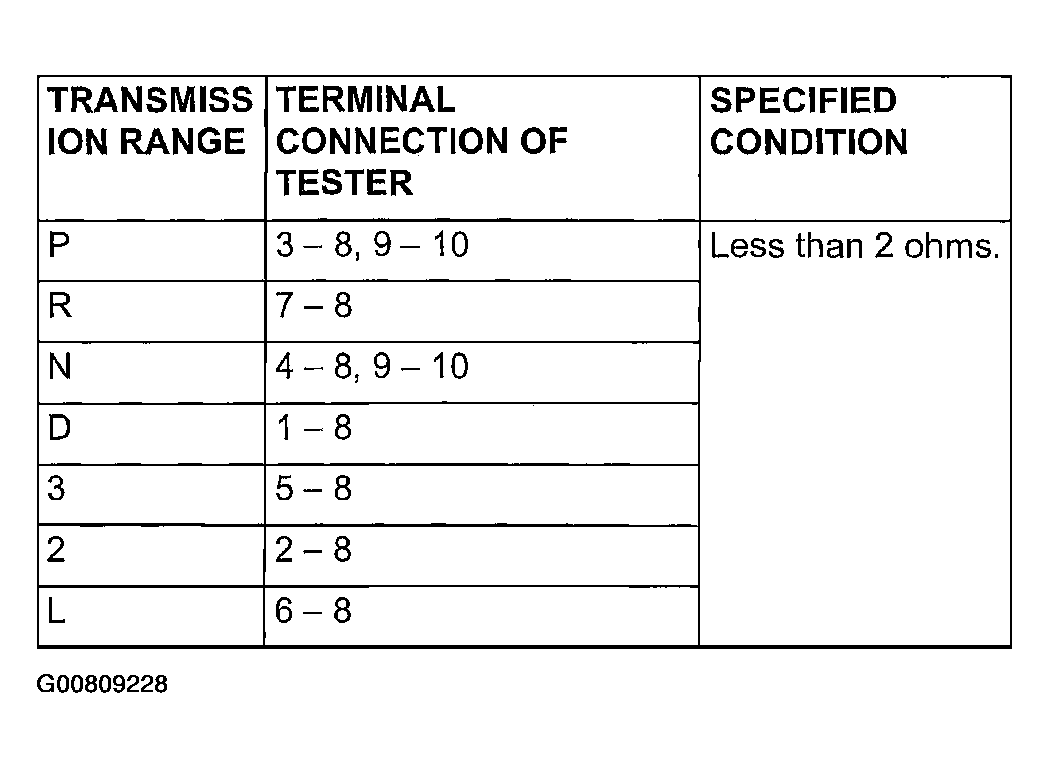

Fig 3: Transmission Range Switch Resistance Specifications
G00809228Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
