Sectional View

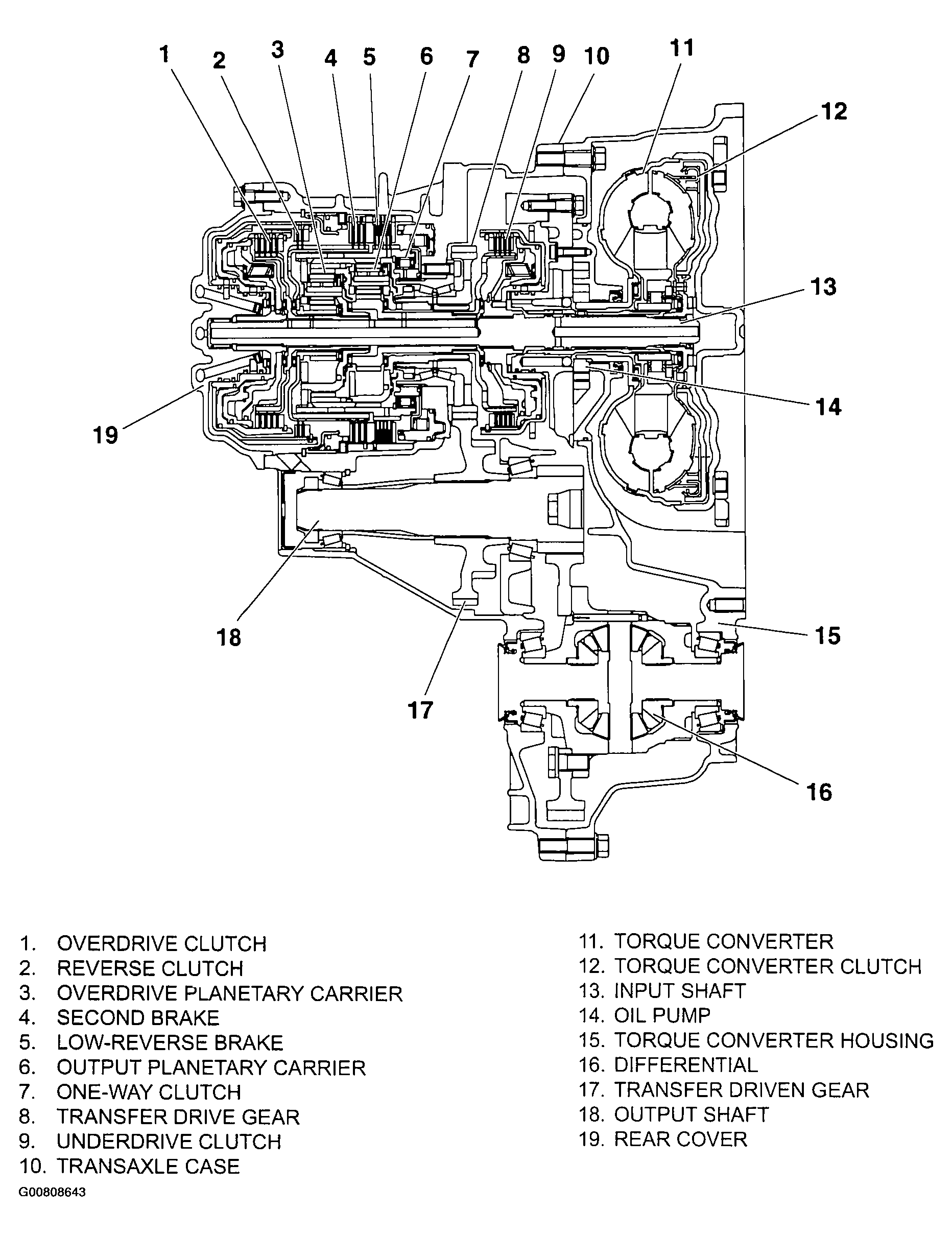

Fig 1: Sectional View Of Transaxle Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
