General Description
>>
Transaxle
>>
Components And Function
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components And Function

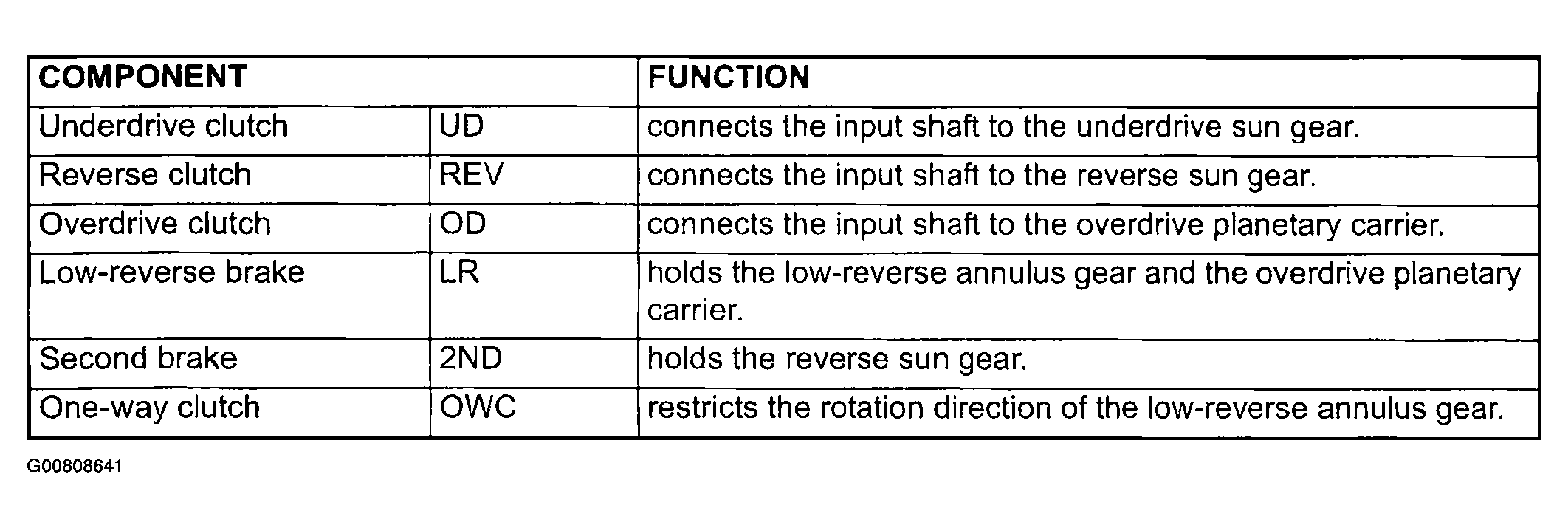

Fig 1: Components Functioning Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
