Downshift Pattern

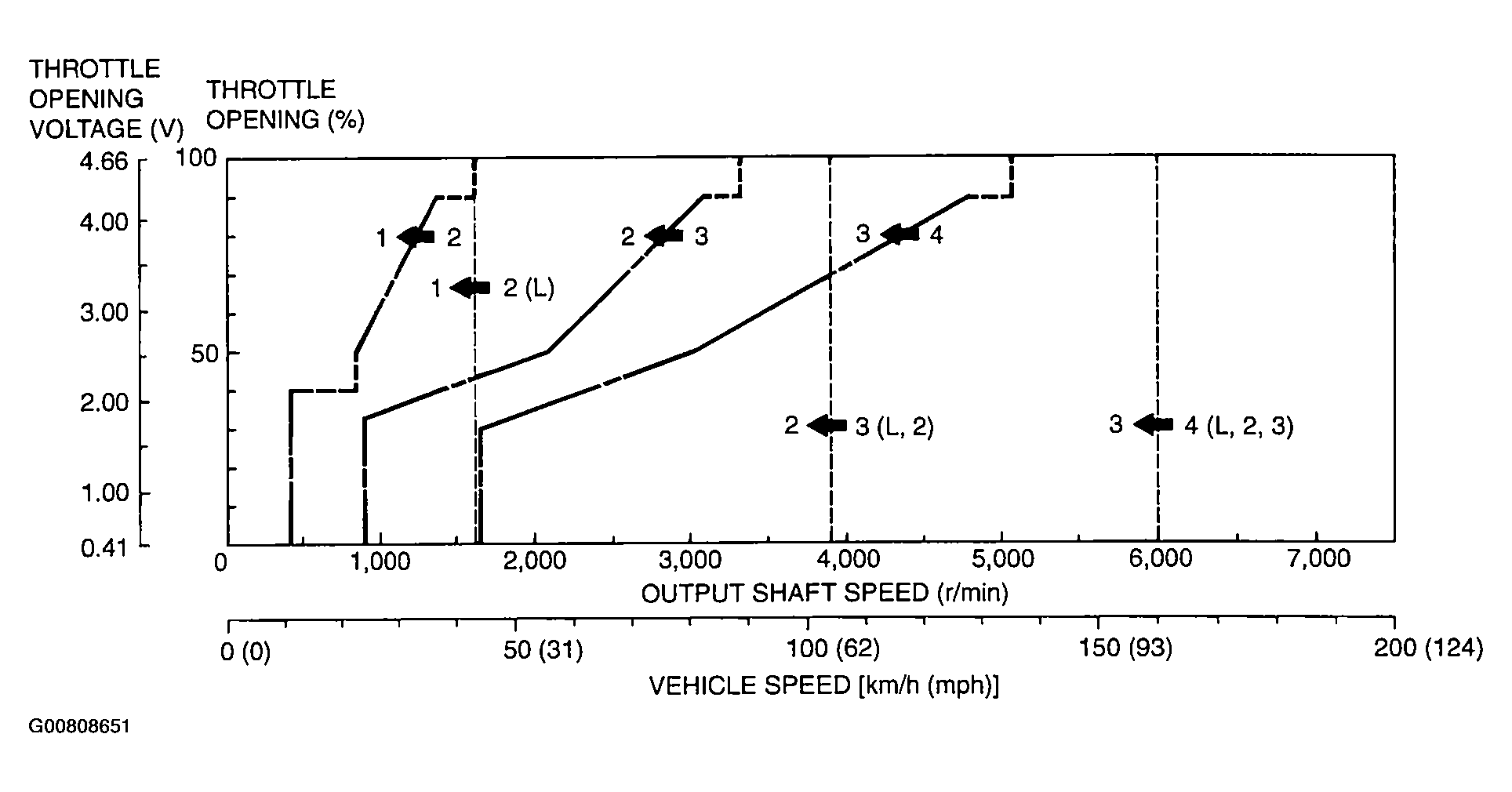

Fig 1: Downshift Pattern Control System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
