Lubrication And Sealing Points

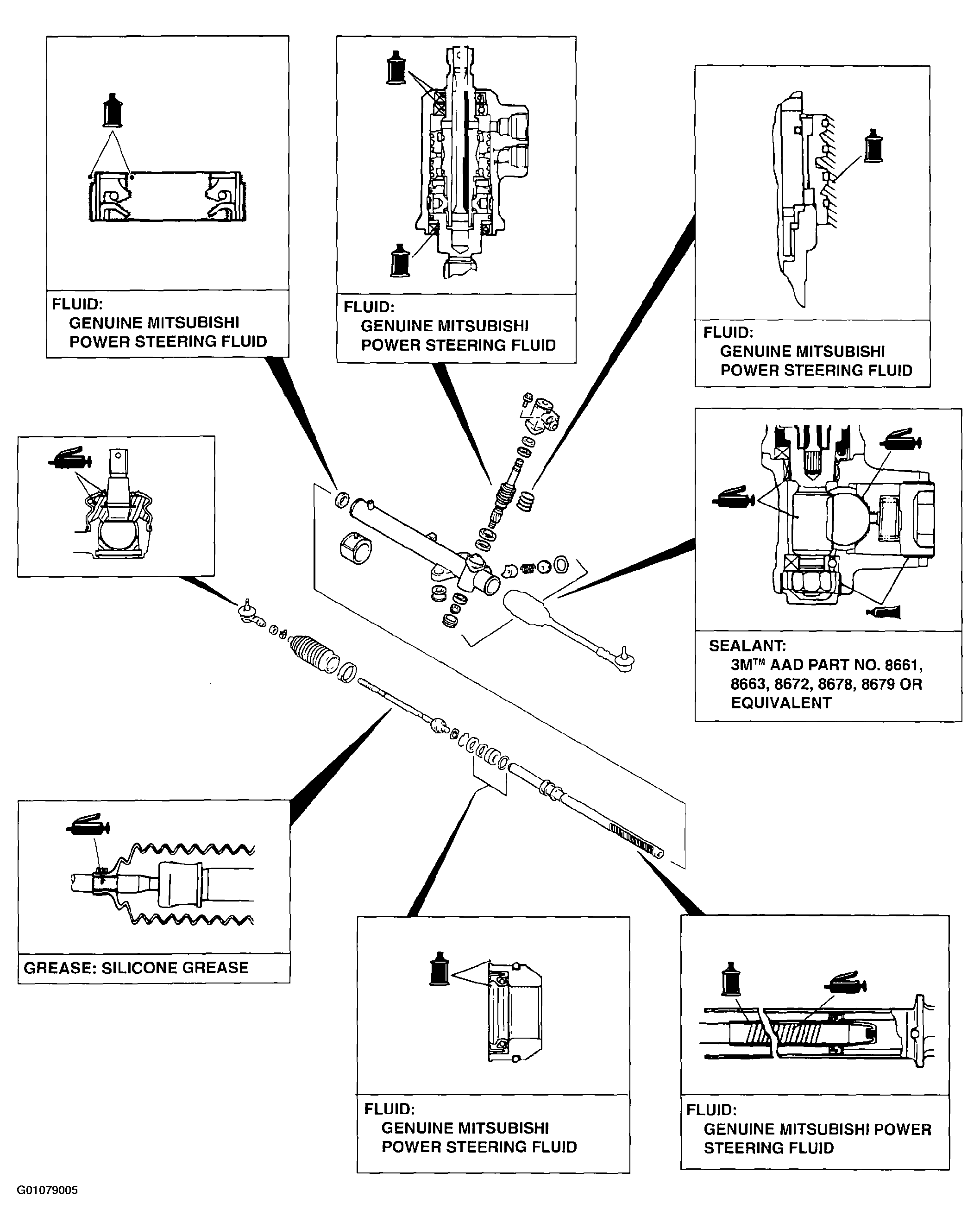

Fig 1: Identifying Lubrication And Sealing Points
G01079005Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
