Operating The Transmitter Unlock Switch Press Twice

WARNING: This page is about a different variant/trim than selected.

When the transmitter unlock switch is pressed twice, the ETACS-ECU energizes its door unlock relay to operate the driver's door lock actuator and the other door lock actuators for 0.25 seconds each in succession. Then, the doors and the lift-gate will be unlocked.

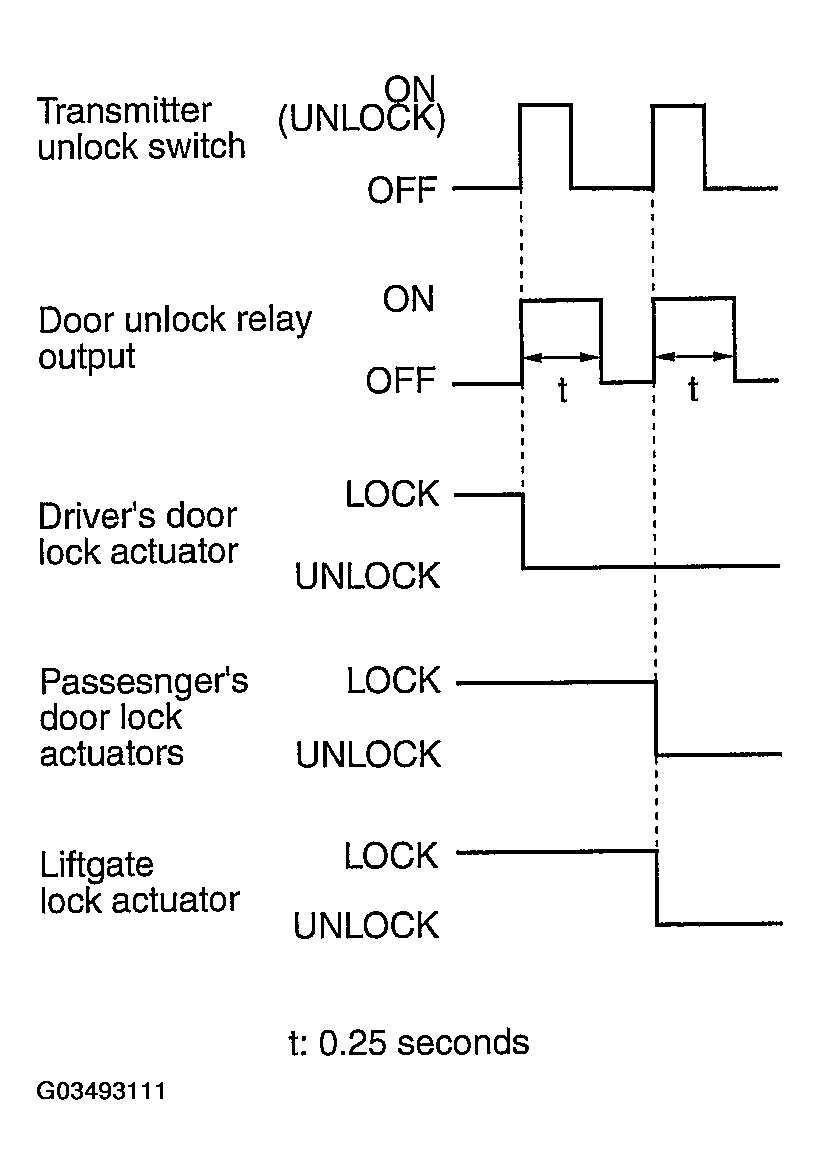

Fig 1: View Of All Door Unlock Function Chart
G03493111Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
