Replacement Of Air Cleaner Element

WARNING: This page is about a different variant/trim than selected.
  1. Unclamp the air cleaner cover.
  2. Remove the air cleaner element and install a new one.
  3. When clamping the air cleaner cover in place, be sure that the cover is completed closed.

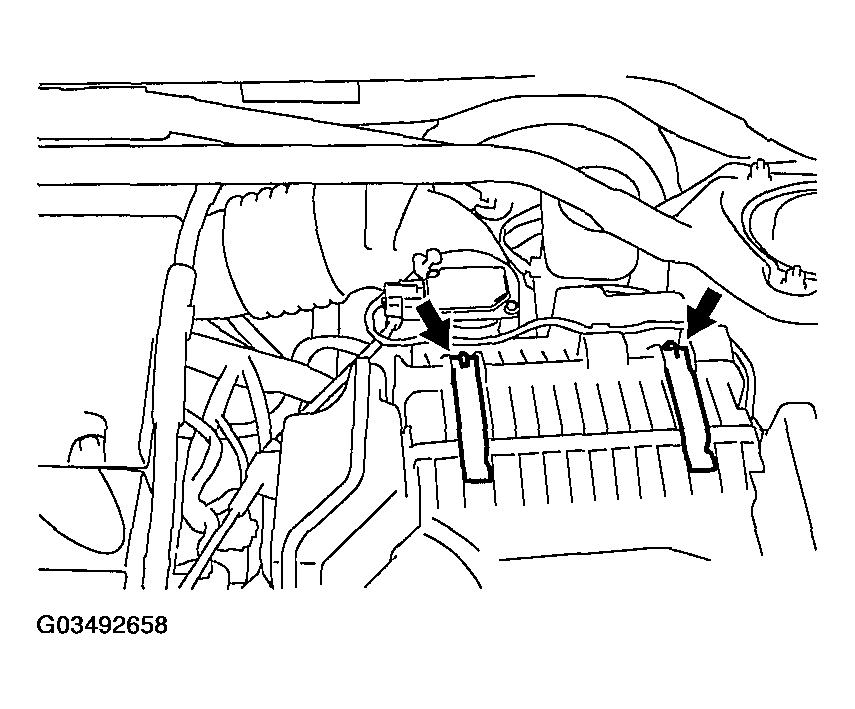

    Fig 1: Removing Air Cleaner Element
    G03492658Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
