Visual Inspection

WARNING: This page is about a different variant/trim than selected.

Connector is disconnected or improperly connected
Connector pins are pulled out
Stretched an broken wires at terminal section
Low contact pressure between male and female terminals
Low connection pressure due to rusted terminals or foreign matter lodged in terminals

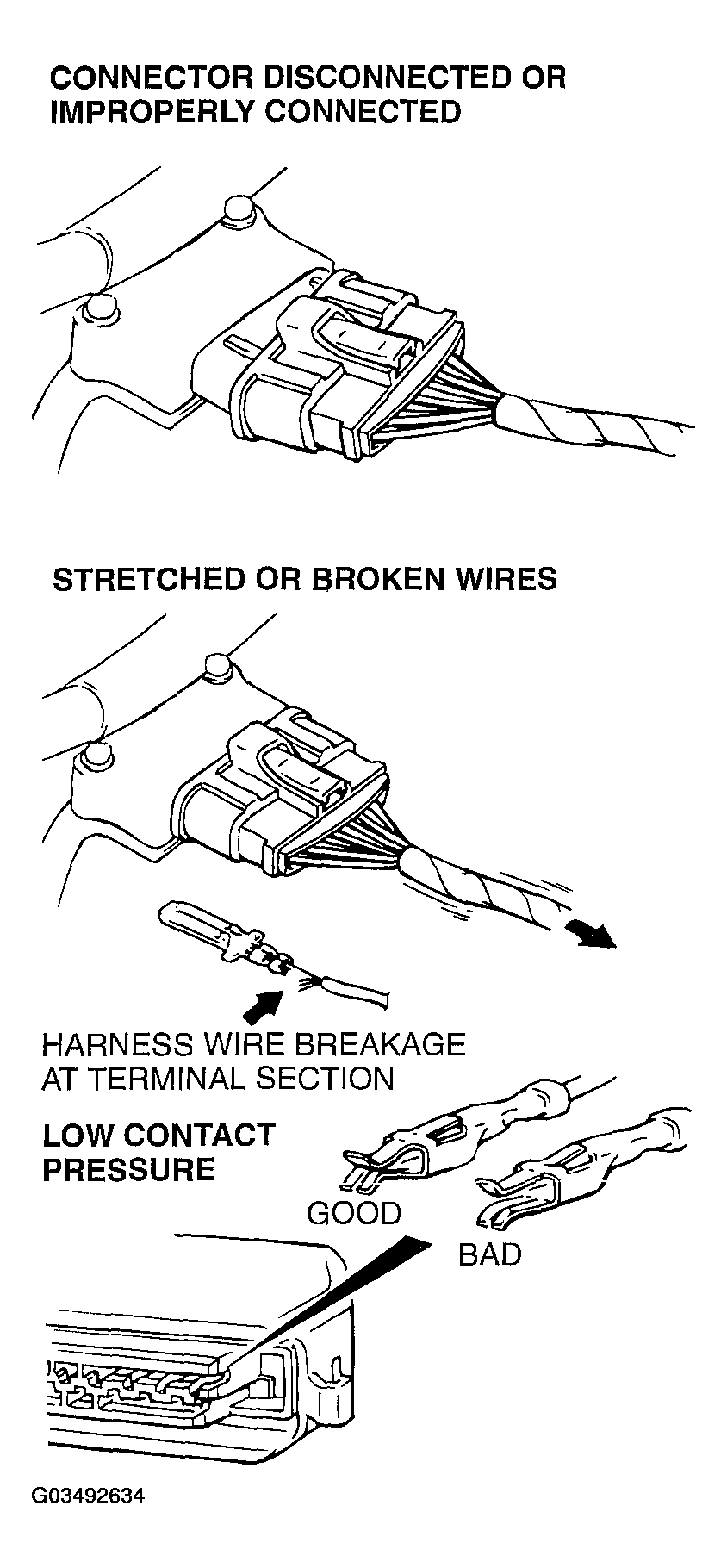

Fig 1: Visual Inspection For Connector Service Points
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
