Column Switch Continuity Check (At Switch Body)

WARNING: This page is about a different variant/trim than selected.

Remove the lighting switch and the wiper/washer switch.
Among individual connectors of the column switch body remaining in the steering column, check for continuity between same number terminals (No. 3- 11).

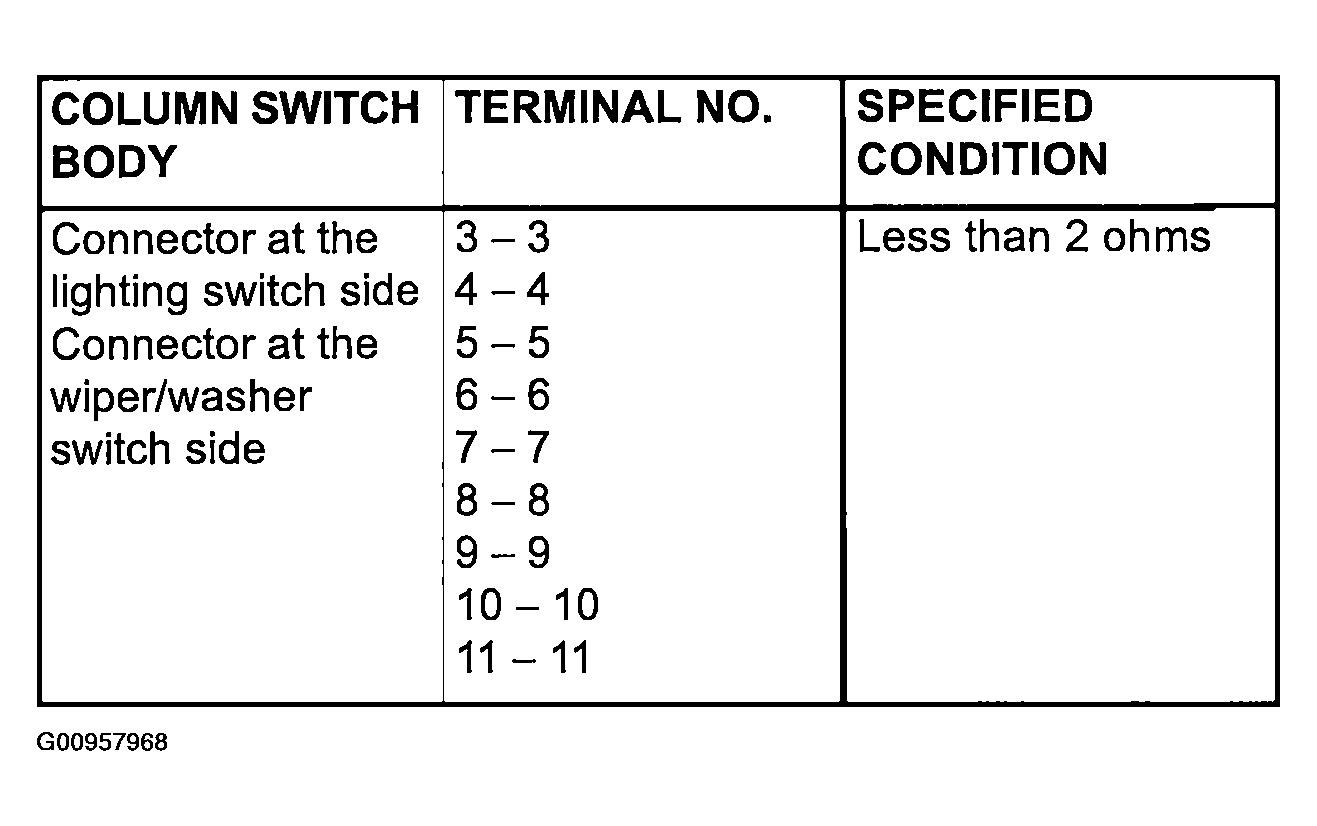

Fig 1: Identifying Column Switch Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

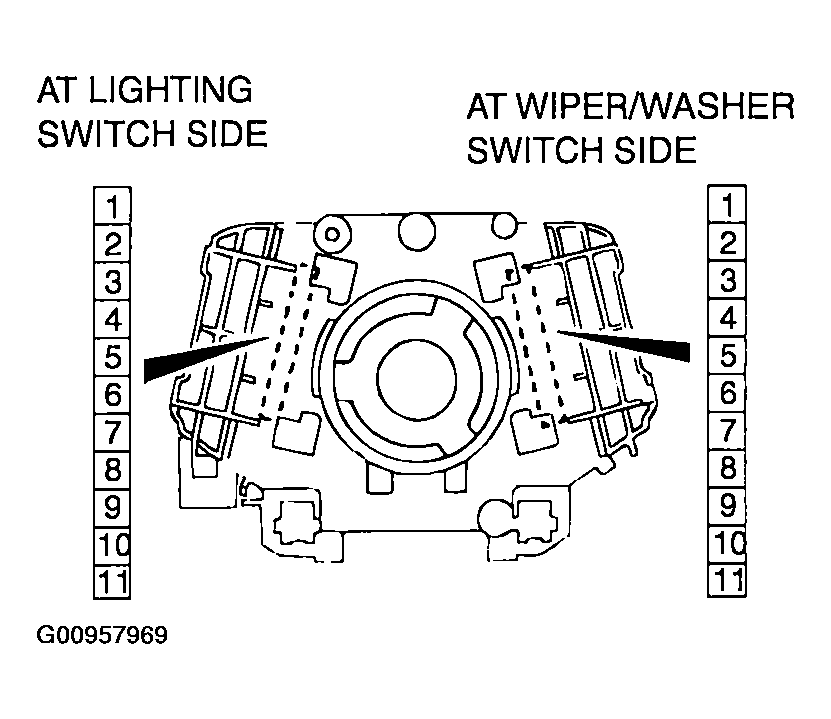

Fig 2: Identifying Column Switch Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
