Section 45 (Automatic Transaxle Overhaul - Except SPORTBACK)
>>
Special Tools
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Special Tools
WARNING:
This page is about a different variant/trim than selected.

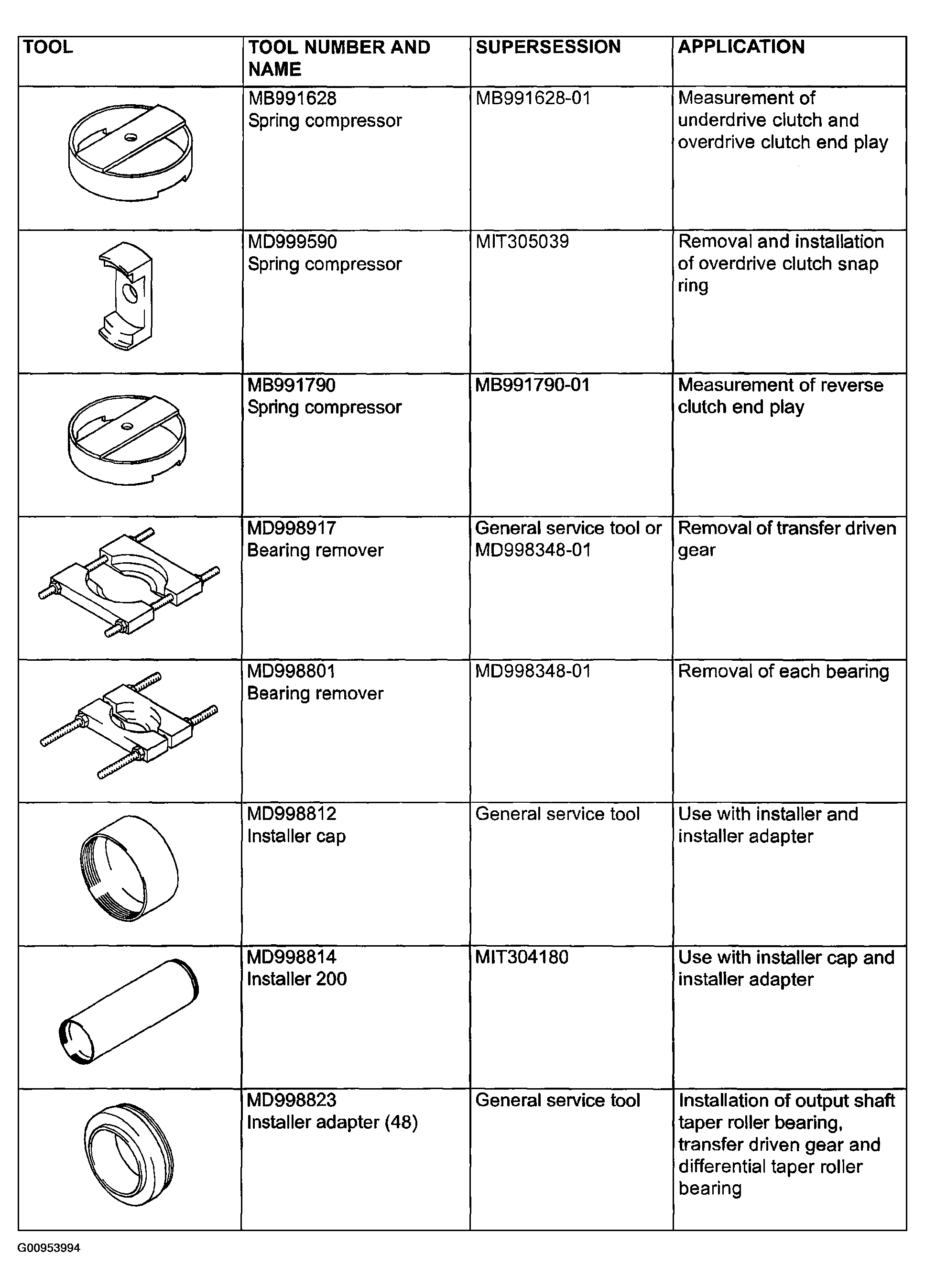

Fig 1: Special Tools Specifications (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

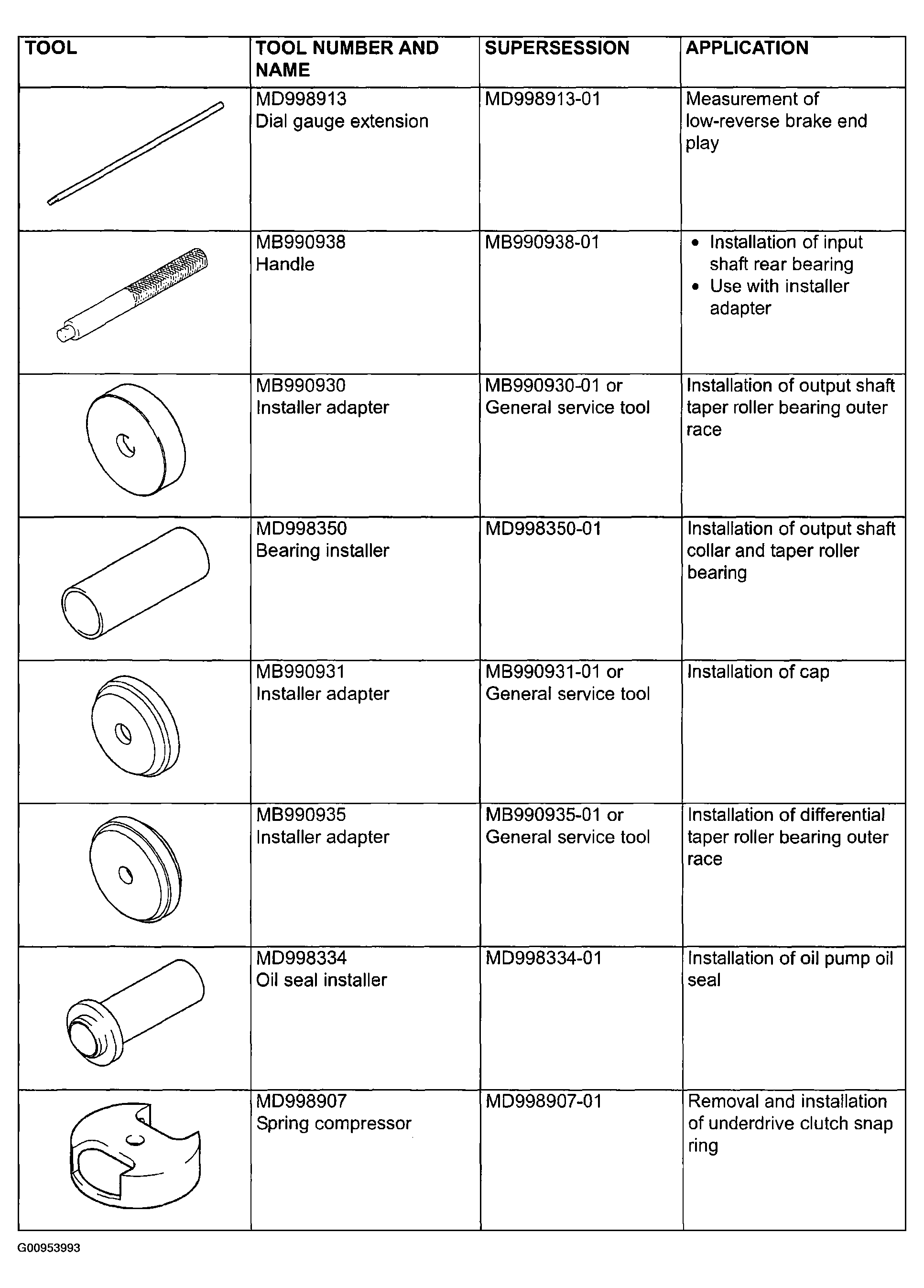

Fig 2: Special Tools Specifications (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

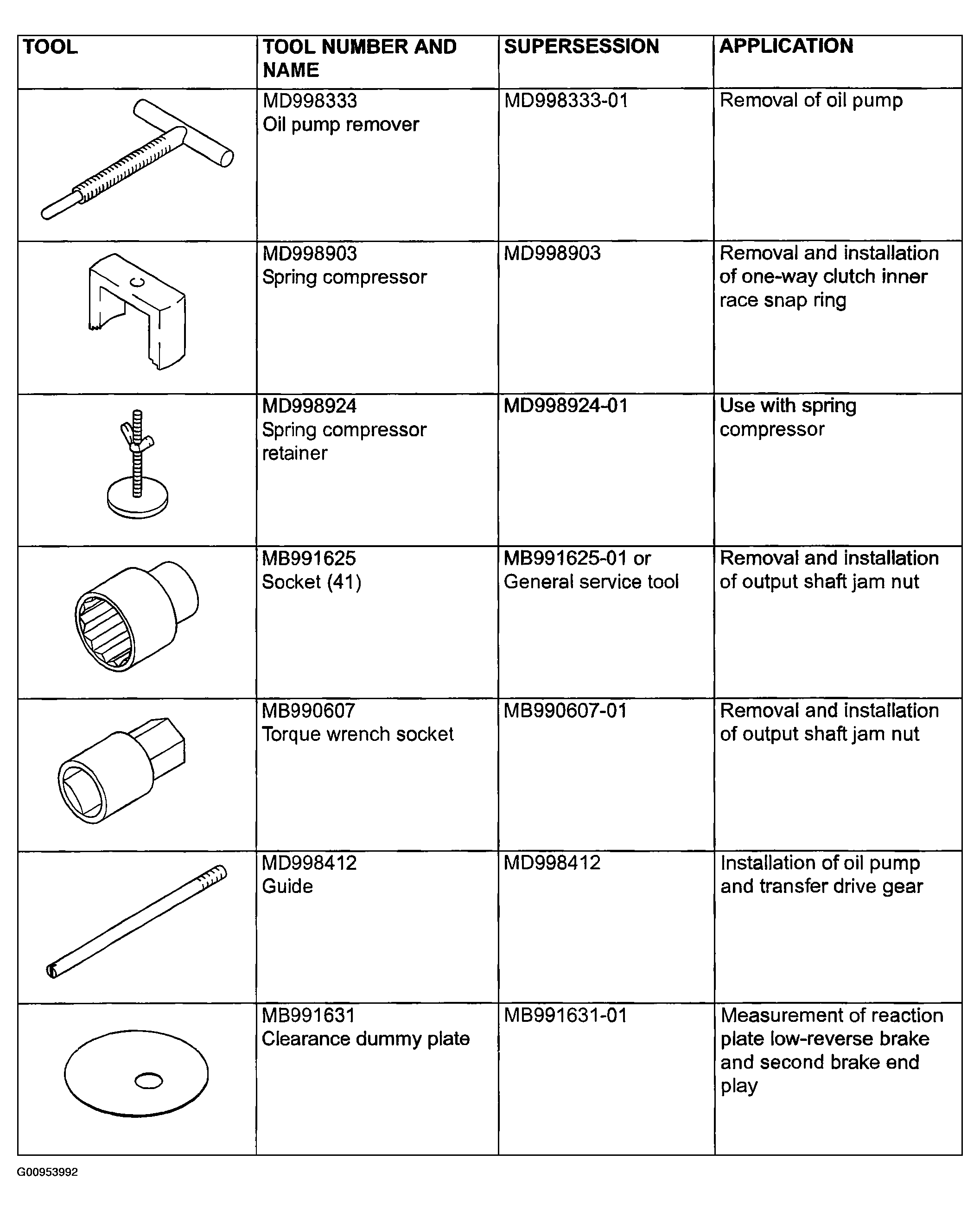

Fig 3: Special Tools Specifications (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

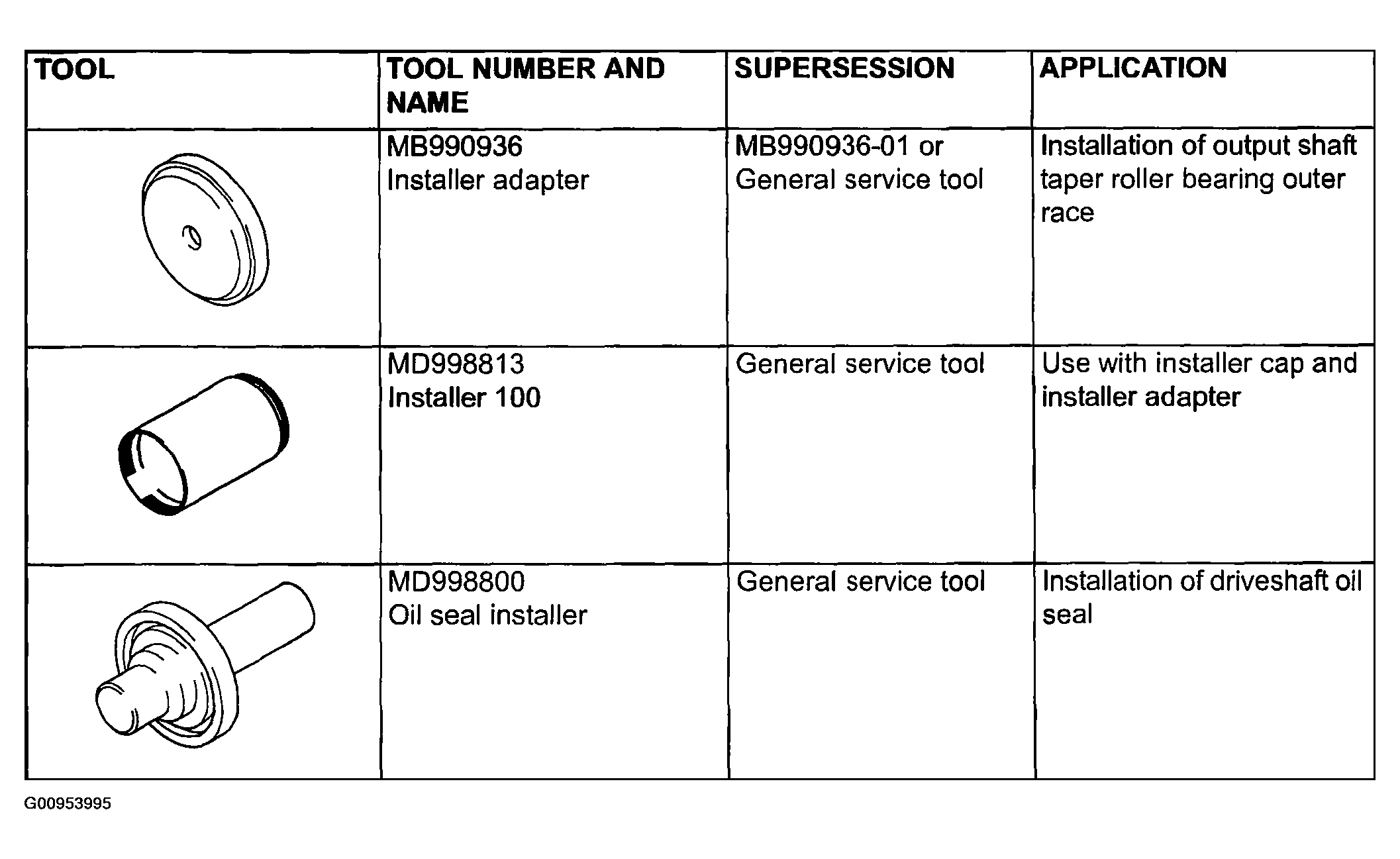

Fig 4: Special Tools Specifications (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
