Removal And Installation

WARNING: This page is about a different variant/trim than selected.
WARNING: Before removal of the air bag module, refer to AIR BAG SAFETY PRECAUTIONS and DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING .

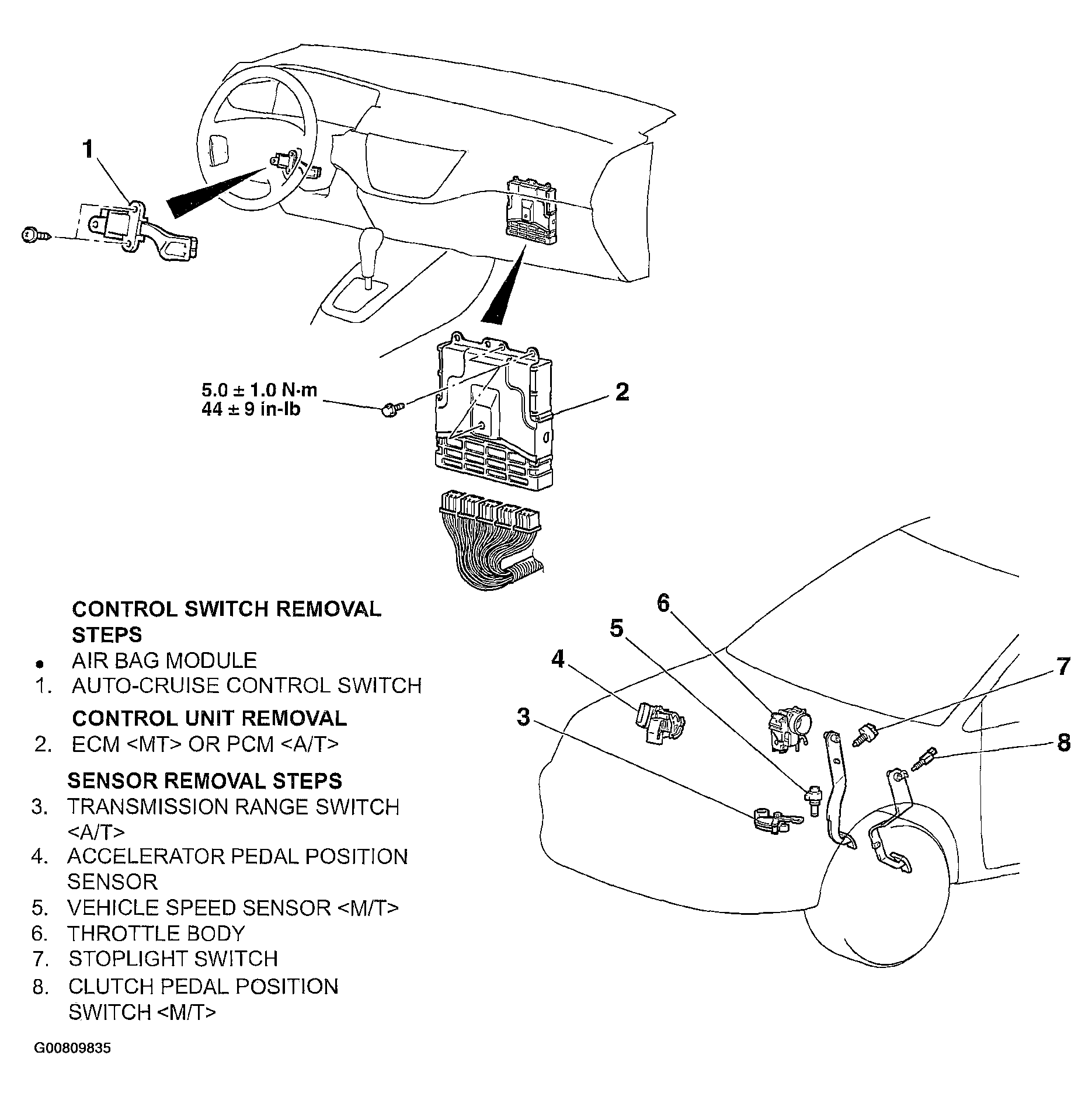

Fig 1: Removing and Installig Auto-Cruise Control
G00809835Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
