Brake Booster Push Rod

WARNING: This page is about a different variant/trim than selected.
  1. Measure protruding length "A" at the pushrod. See Fig 1 . Push rod protruding length should be .381-.390" (9.68-9.92 mm).

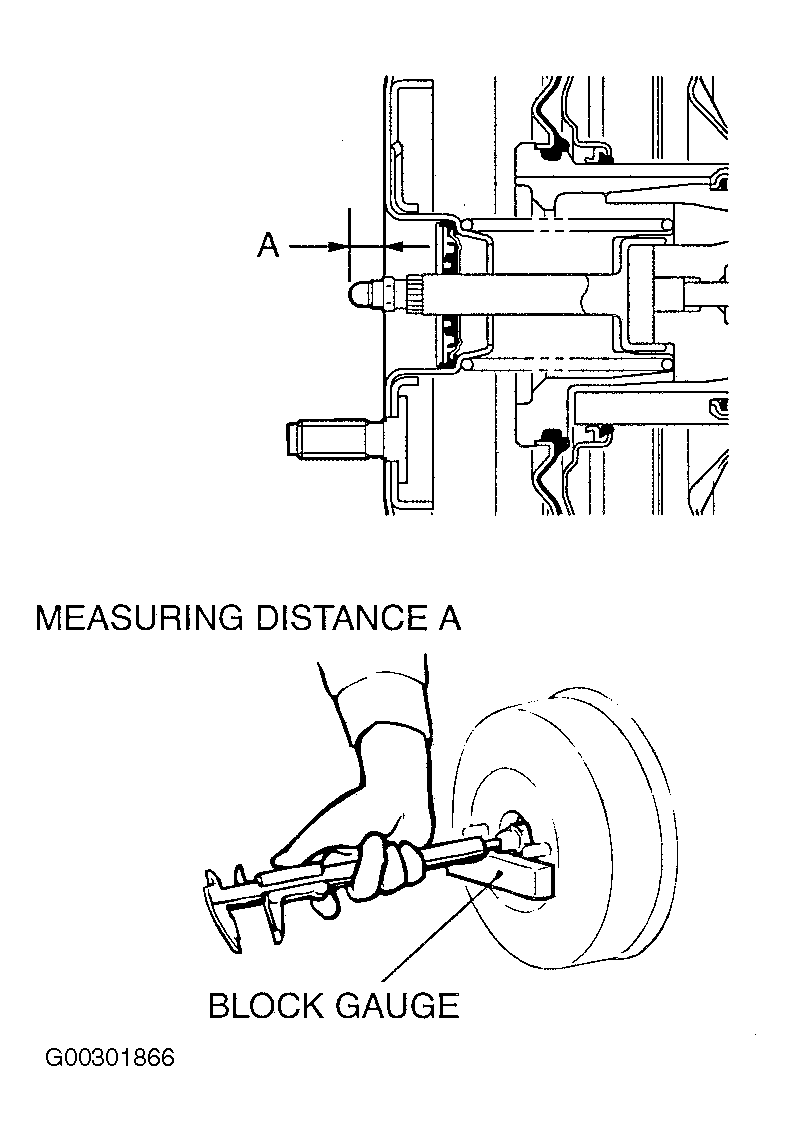

    Fig 1: Measuring Brake Booster Push Rod Protruding Length
    G00301866Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NOTE: When a negative pressure of 19.6 in. Hg is applied to the brake booster, push rod protruding length should be .405-.415" (10.28-10.53 mm).
  2. If the protruding length is not as specified, change pushrod length by turning the end of the pushrod using Push Rod Adjusting Socket (MB991568) while holding rod spline with angle-nose pliers. See Fig 2 .

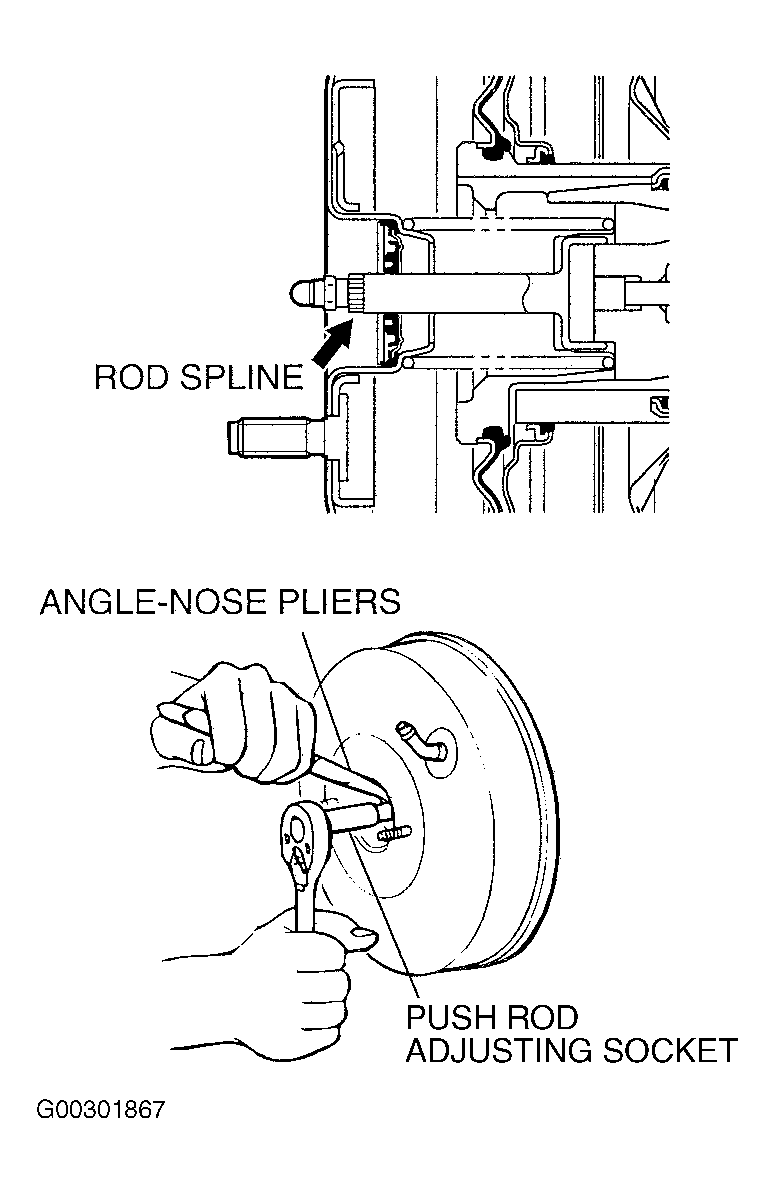

    Fig 2: Adjusting Brake Booster Push Rod Protruding Length
    G00301867Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
