Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

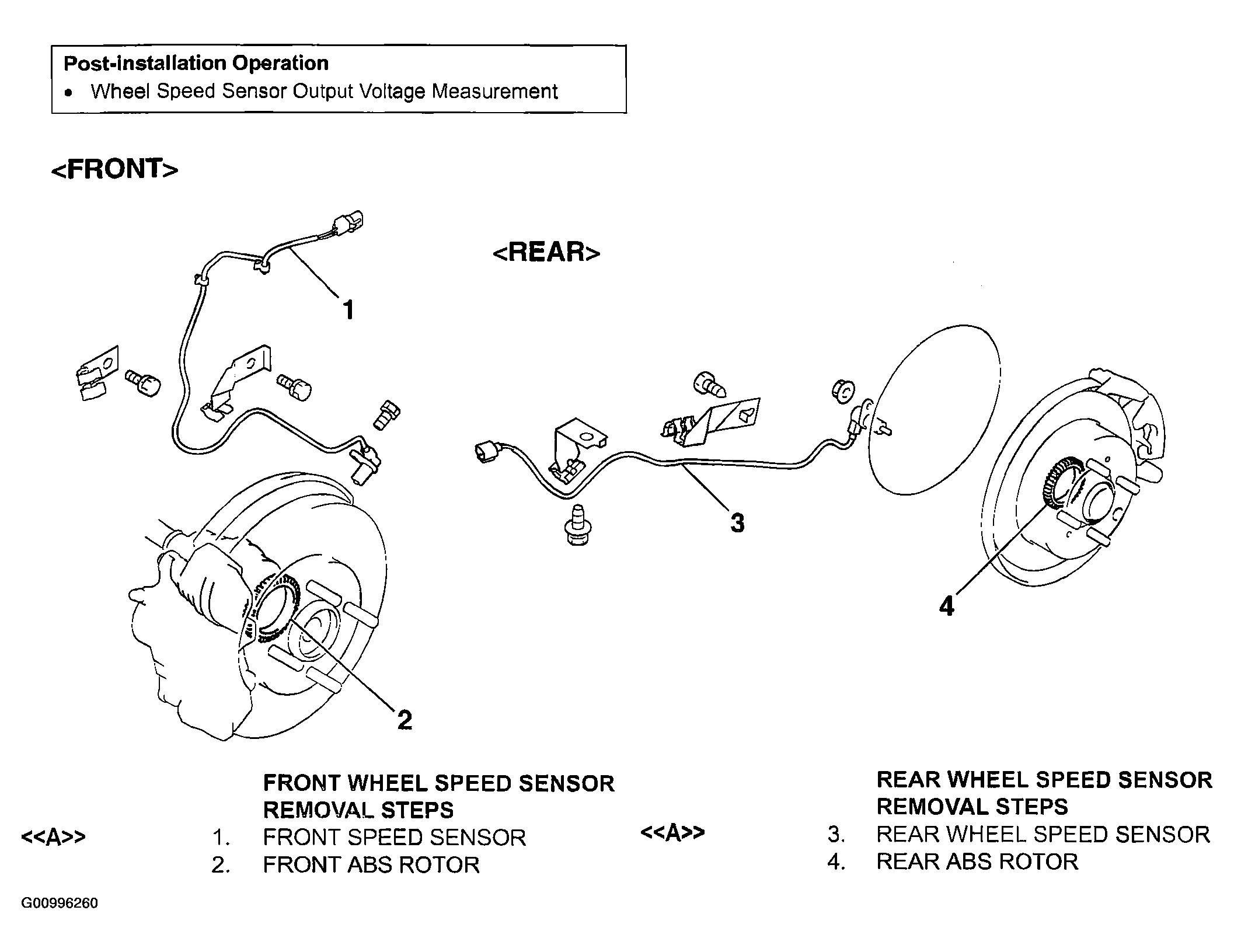

Fig 1: Removing/Installing Wheel Speed Sensor Components
G00996260Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
