Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

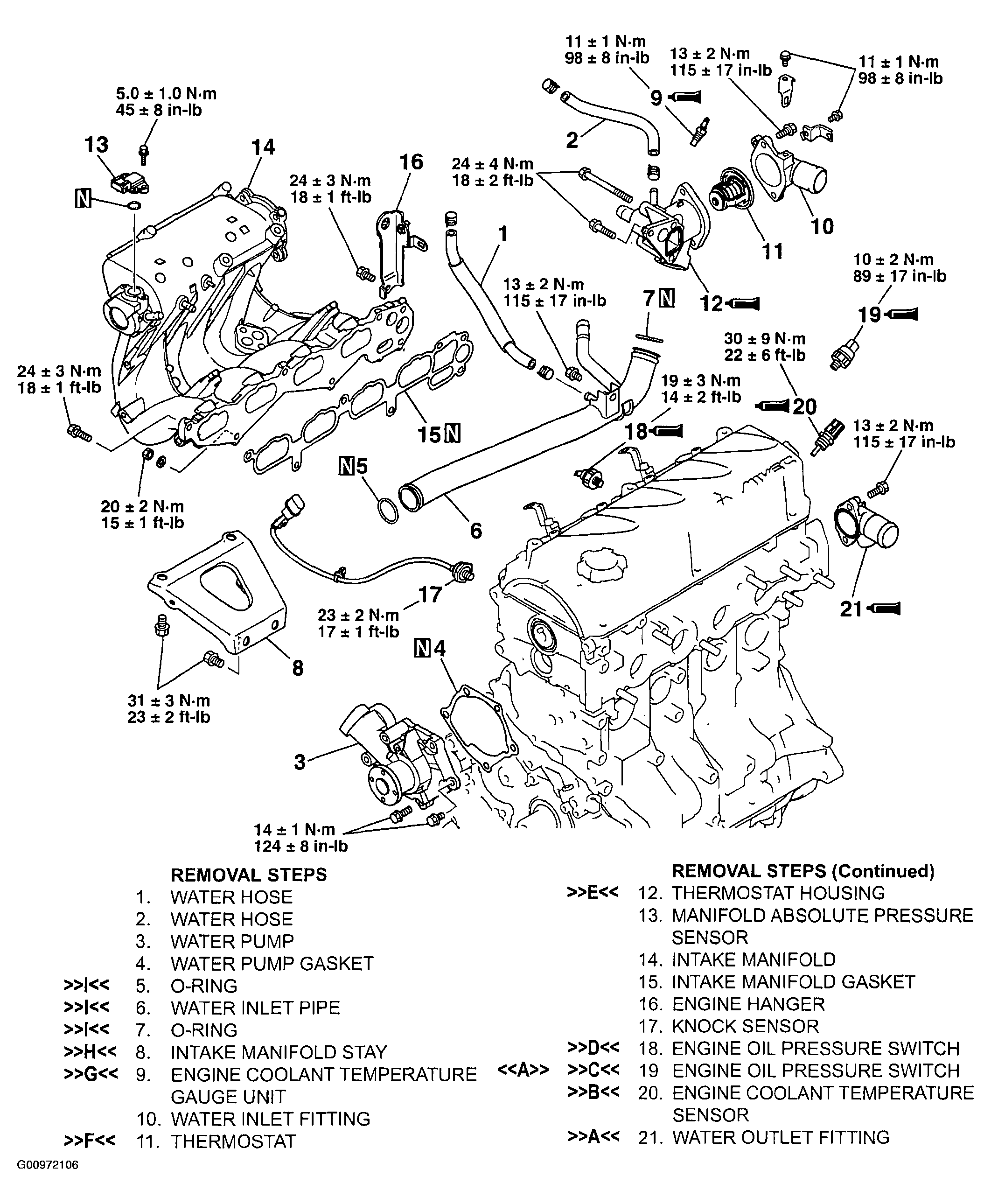

Fig 1: Removing And Installing Intake Manifold & Water Pump
G00972106Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
