Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

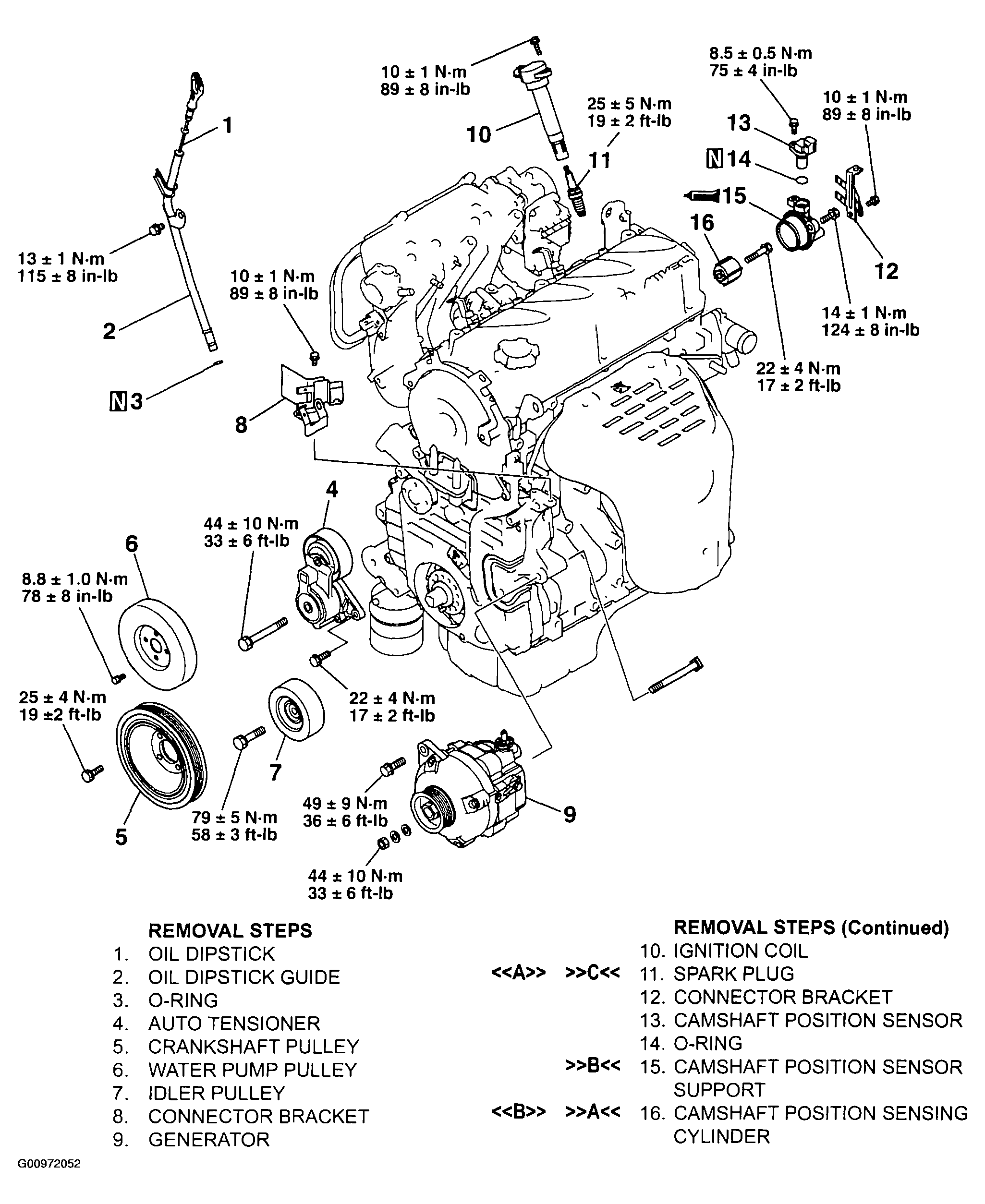

Fig 1: Removing And Installing Generator & Ignition System
G00972052Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
