Short-Circuit Check

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

Because the fuse has blown, it is probable that there is a short circuit. Follow the procedures below to narrow down the short-circuit location.

STEP 1. Remove the blown fuse and connect the test light across the fuse terminals (Circuit switch: OFF).

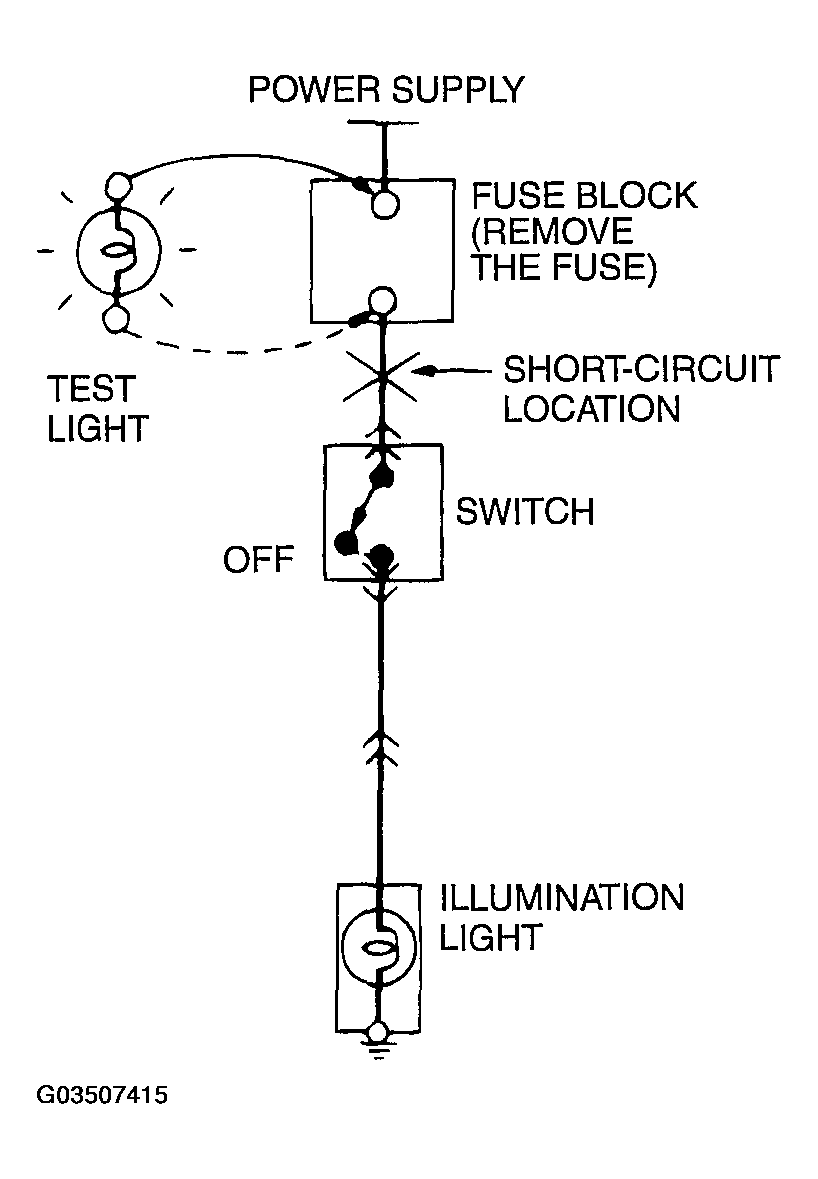

Fig 1: Checking Short Circuit (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Q: Does the test light illuminate?
1. YES: Short-circuit exists between the fuse block and the switch. Repair the harness between the fuse block and the switch.
2. NO: Go to Step 2.
STEP 2. Turn the switch ON and disconnect the illumination light connector.
Q: Does the test light illuminate?

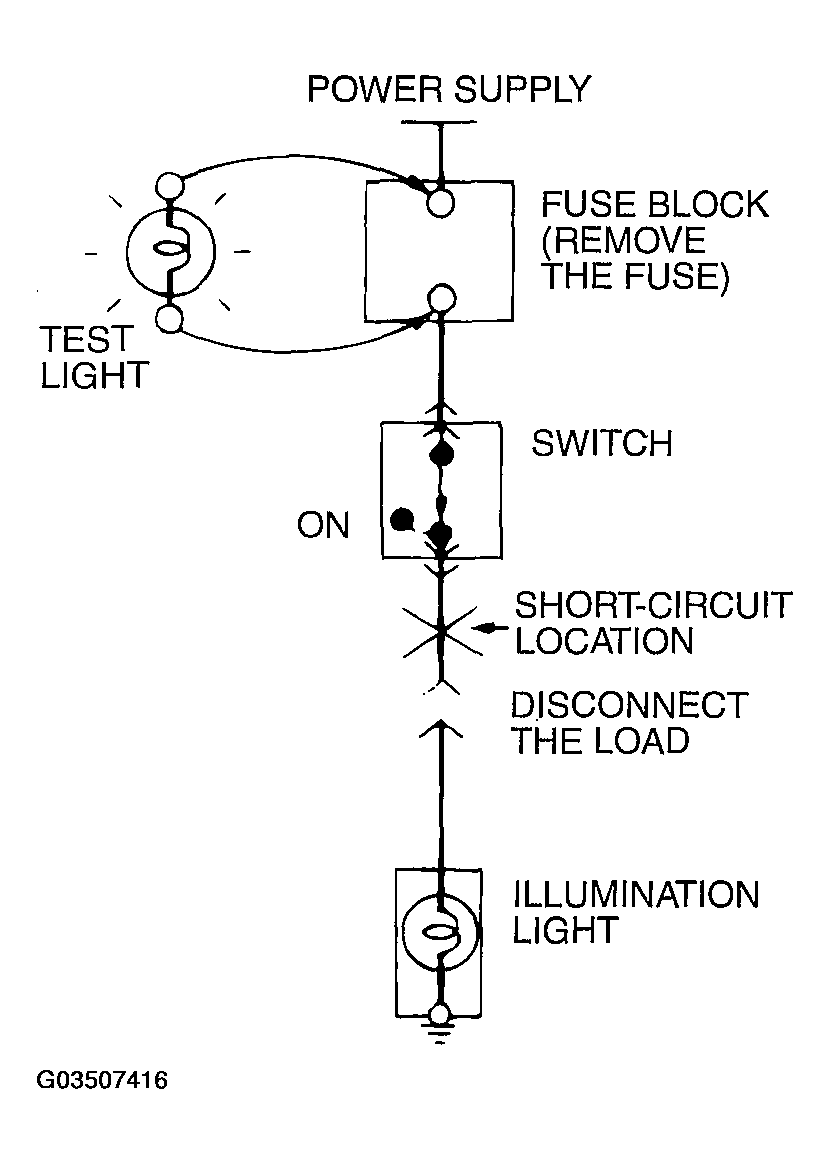

Fig 2: Checking Short Circuit (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. YES: Short-circuit exists between the switch and the connector. Repair the harness between the switch and the connector.
2. NO: Short-circuit exists between the connector and the illumination light. Repair the harness between the connector and the illumination light.

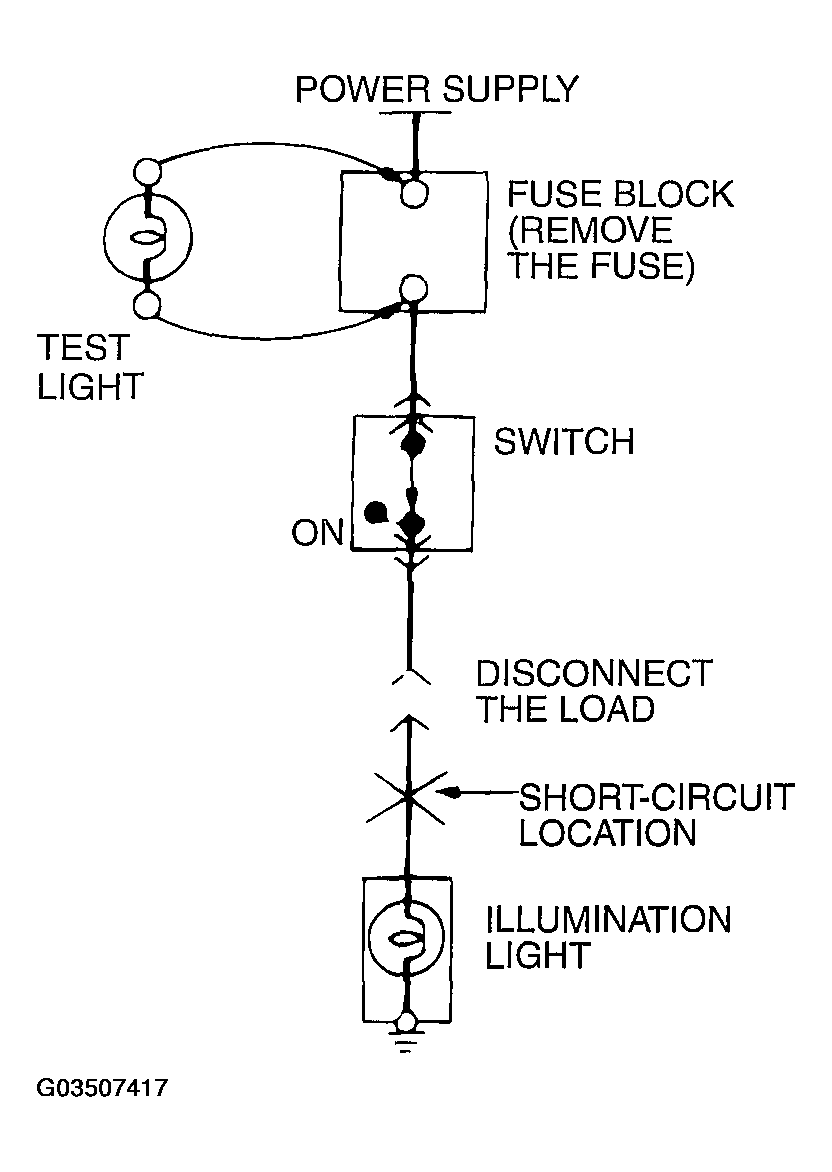

  Fig 3: Checking Short Circuit (3 Of 4)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

  Fig 4: Checking Short Circuit (4 Of 4)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
